Husqvarna WP18H44A (1992) Tractor

Model: WP18H44A (1992)

Back To Assemblies

Save Part Not Listed?
product name

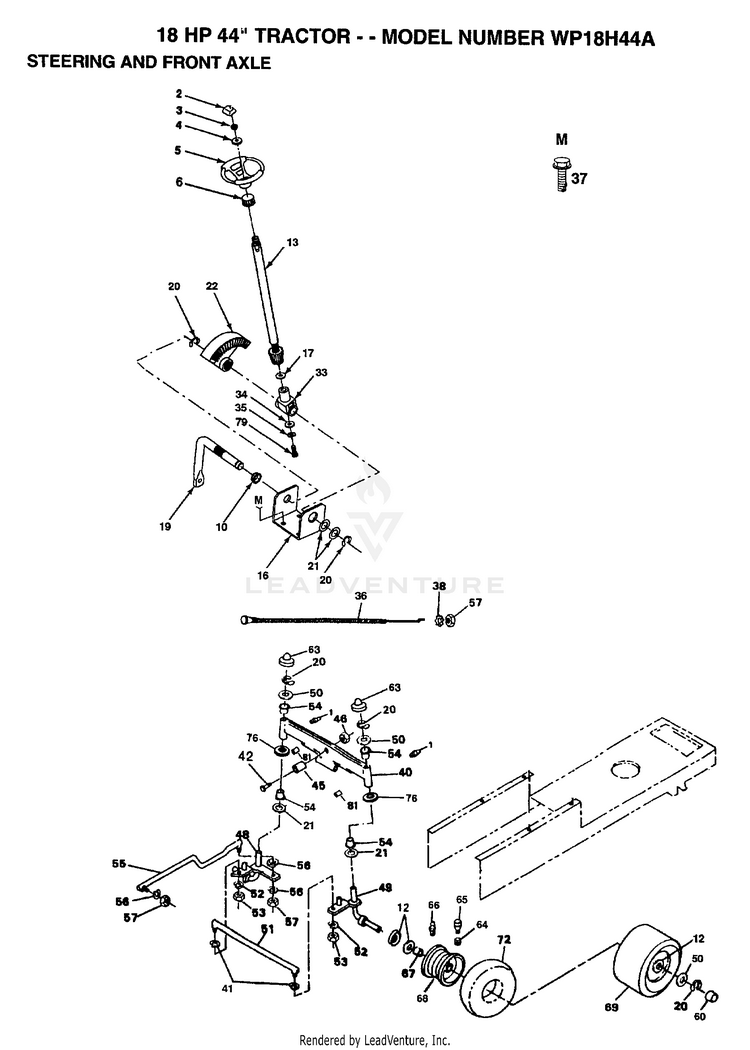

STEERING AND FRONT AXLE

...
...
1
ZERK M HUS-6855M
...
2
"INSERT,STR WHEEL" HUS-126805X
...
3
SUB= 73360800 HUS-73940800
...
4
WASHER HUS-100712K
...
5
SUB= 150546 HUS-121472X
...
6
ADAPTER LT HUS-100711L
...
10
NYLINER T HUS-109816X
...
12
WASHER HUS-121749X
...
13
SUB= 156544 HUS-128762
...
16
"BRKT,STEERING" HUS-124036X
...
17
THRUST WASHER HUS-57079
...
19
SUB= 918127501 HUS-127501
...
20
RING HUS-12000029
...
21
WASHER .T HUS-6266H
...
22
SUB= 136874 HUS-124034X
...
33
SUPPORT.SHAFT HUS-124035X
...
34
SUB= 532126684 HUS-126684X
...
35
LOCKWASHER HUS-10040400
...
36
CHOKE CONTROL HUS-132781
...
37
SCREW HUS-17490612
...
38
LOCKWASHER HUS-11050600
...
40
FRONT AXLE HUS-108075X
...
41
WASHER M HUS-19111216
...
42
BOLT HEX 5/8-11 HUS-74011056
...
45
BEARING HUS-110438X
...
46
SUB= 73901000 HUS-73601000
...
48
SPINDLE LH HUS-135227
...
49
SPINDLE RH HUS-135228
...
50
WASHER HUS-121748X
...
51
TIE ROD HUS-130467
...
52
LOCKWASHER HUS-10040500
...
53
NUT.LOCK.5/16-24 HUS-73810500
...
54
COL. SRTG. BEAR. HUS-3366R
...
55
SUB= 532130468 HUS-130468
...
56
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
57
SUB= 7810H HUS-73610600
...
60
HUB CAP HUS-104757X
...
63
CAP HUS-121232X
...
64
VALVE CAP HUS-59192
...
65
VALVE STEM LT HUS-65139
...
66
FITTING LT HUS-278H
...
67
"FLANGE, BEARING" HUS-9040H
...
68
SUB= 106732X417 HUS-106732X361
...
69
SUB= 122073X HUS-106222X
...
72
TUBE.5.3/4.5/6 HUS-59904
...
76
WASHER HUS-19272016
...
79
"SCREW,SPECIAL" HUS-71070410
...
81
AXLE PIN HUS-132624
