Husqvarna WP1842B (1993) Tractor

Model: WP1842B (1993)

Back To Assemblies

Save Part Not Listed?
product name

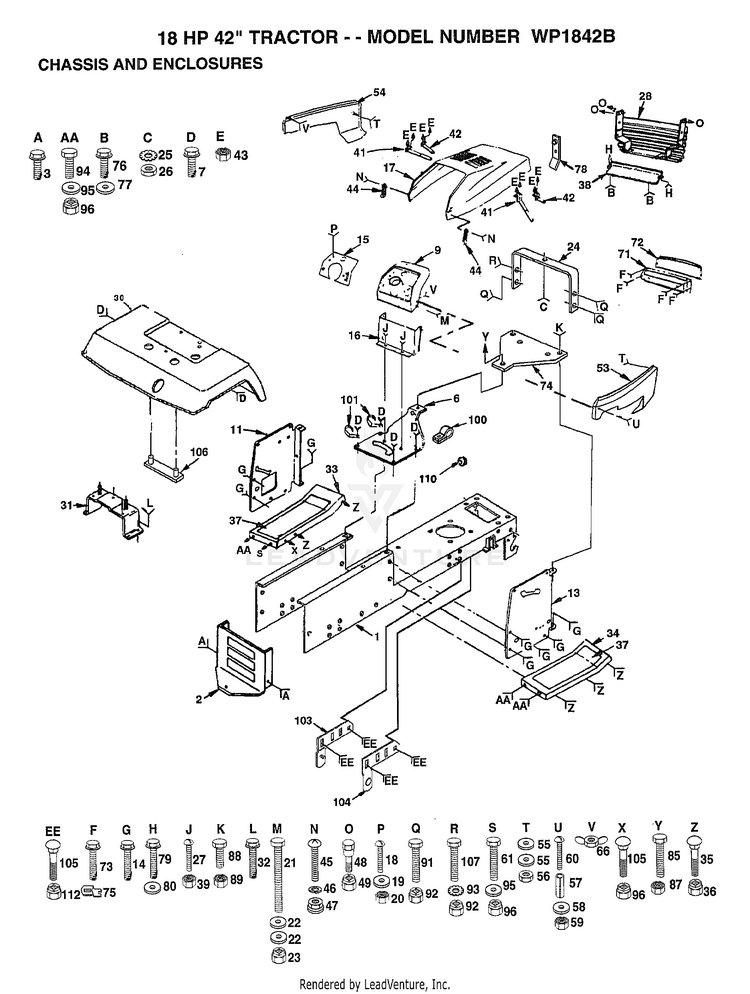

18 HP 42" CHASSIS AND ENCLOSURES

...
...
1
SUB= 145501 HUS-135034
...
2
SUB= 145009 HUS-137275
...
3
SCREW HUS-17490612
...
6
SADDLE. 6SP HUS-131343X037
...
7
SCREW LT HUS-17490608
...
9
SUB= 140398 HUS-124252X
...
11
PANEL.DASH.LH HUS-132070
...
13
SUB= 532132069 HUS-132069
...
14
SCREW HUS-17490612
...
15
PLATE.DASH HUS-135040X018
...
16
LOWER DASH HUS-132177
...
17
SUB= 150301X505 HUS-132635X505
...
18
SCREW HUS-74180512
...
19
WASHER HUS-19111116
...
20
NUT HUS-73510500
...
21
SUB= 74780612 HUS-74760612
...
22
WASHER HUS-19131312
...
23
SUB= 73690600 HUS-73680600
...
24
SUPPORT ASS'Y HUS-124130X
...
25
LOCKWASHER HUS-11050400
...
26
SUB= 50675 HUS-73220400
...
27
SCREW HUS-74180512
...
28
SUB= 532131716 HUS-131716
...
30
FENDER HUS-121642X505
...
31
BRKT.ASM.FENDER HUS-137113
...
32
SCREW HUS-17490612
...
33
SUB= 145244X505 HUS-105465X505
...
34
SUB= 145243X505 HUS-105464X505
...
35
BOLT HUS-72110606
...
36
SUB= 73690600 HUS-73680600
...
37
FOOTREST PAD HUS-133671
...
38
GRILL STRAP HUS-105419X505
...
39
NUT HUS-73510500
...
41
SUB= 155013 HUS-106784X
...
42
SUB= 155013 HUS-104618X
...
43
NUT HUS-73510400
...
44
HOOD LATCH T HUS-109808X
...
45
SCREW HUS-74191008
...
46
LOCKWASHER HUS-10071000
...
47
WELDNUT HUS-2029J
...
48
SUB= 7605J HUS-123481X
...
49
SUB= 73690400 HUS-73680400
...
53
PANEL.SIDE.RH HUS-137655X505
...
54
"PANEL,SIDE LH" HUS-132637X505
...
55
WASHER PM HUS-19091216
...
56
SUB= 50675 HUS-73220400
...
57
SPACER LT HUS-7206J
...
58
WASHER HUS-19070818
...
59
NUT HUS-73731000
...
60
SCREW HUS-74981020
...
61
SUB= 74760616 HUS-74760614
...
66
SUB= 146525 HUS-123198X
...
71
SUB= 147717 HUS-124392X417
...
72
LENS LT HUS-106395X
...
73
SCREW LT HUS-17211010
...
74
SUB= 140181 HUS-137654
...
75
"""J"" FASTENER LT" HUS-104755X
...
76
SCREW HUS-17490512
...
77
WASHER HUS-19131210
...
78
SUB= 532132644 HUS-132644
...
79
SCREW HEX CRT HUS-17490412
...
80
WASHER HUS-19091016
...
85
SUB= 74780612 HUS-74760612
...
87
SUB= 73690600 HUS-73680600
...
88
BOLT HUS-74780512
...
89
SUB= 73690500 HUS-73680500
...
91
SUB= 74780612 HUS-74760612
...
92
SUB= 73690600 HUS-73680600
...
93
LOCKWASHER HUS-11050600
...
94
SUB= 74780612 HUS-74760612
...
95
WASHER HUS-19131312
...
96
SUB= 73690600 HUS-73680600
...
100
CLIP T HUS-2751R
...
101
"CLIP,INSULATOR" HUS-126471X
...
103
PIVOT BRKT LH HUS-134774
...
104
PIVOT BRKT RH HUS-134775
...
105
SUB= 72110608 HUS-72140608
...
106
SUB= 140675 HUS-105511X
...
107
SUB= 74780612 HUS-74760612
...
110
SUB= 9151R HUS-110436X
...
112
NUT HUS-73800600
