Husqvarna WP1442A (1994) Tractor

Model: WP1442A (1994)

Back To Assemblies

Save Part Not Listed?
product name

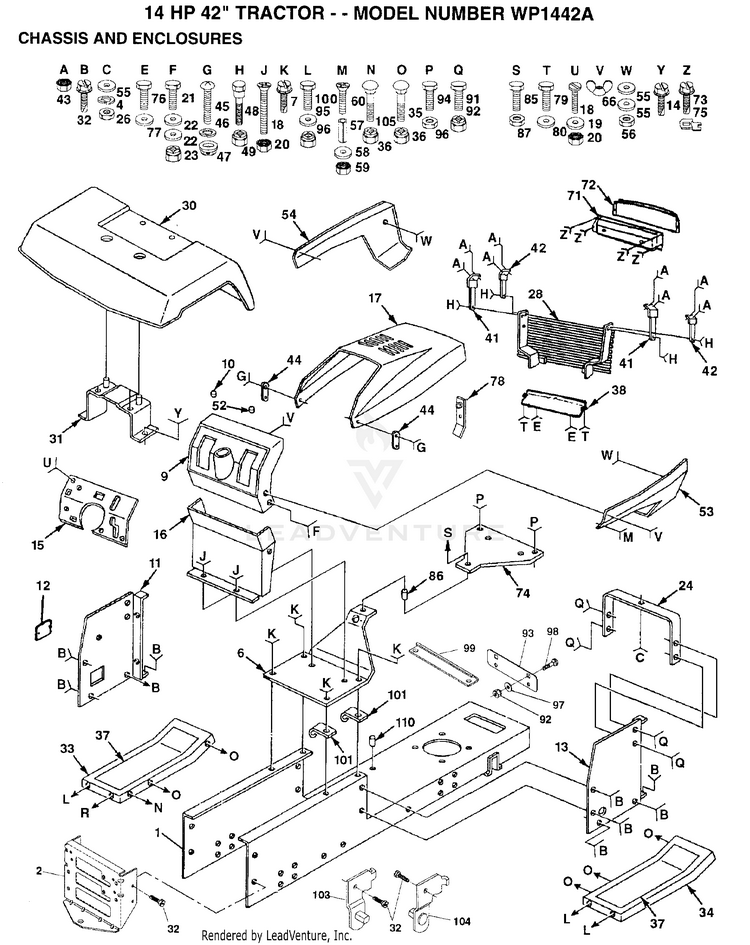

CHASSIS AND ENCLOSURES

...
...
1
SUB= 145501 HUS-140341
...
2
SUB= 145009 HUS-140356
...
4
LOCKWASHER HUS-10040400
...
6
SADDLE HUS-131433X043
...
7
SCREW HUS-17490612
...
9
DASHBOARD BLACK HUS-140398
...
10
PLUG BUTTON T HUS-5479J
...
11
PANEL.DASH.LH HUS-136967
...
12
COVER ACCESS HUS-121794X
...
13
PANEL.DASH.RH HUS-136970
...
14
SCREW HUS-17490612
...
15
PLATE.DASH.SILKSC HUS-140133X011
...
16
DASH ASSY LT HUS-104783X
...
17
SUB= 150301X505 HUS-132635X505
...
18
SCREW HUS-74180512
...
19
WASHER HUS-19111116
...
20
NUT HUS-73510500
...
21
BOLT HUS-74780620
...
22
WASHER HUS-19131312
...
23
NUT HUS-73800600
...
24
SUPPORT ASS'Y HUS-124130X
...
26
SUB= 50675 HUS-73220400
...
28
SUB= 532131716 HUS-131716
...
30
FENDER HUS-109872X505
...
31
BRACKET SUPT FEND HUS-139976
...
32
SCREW HUS-17490612
...
33
SUB= 145243X505 HUS-105464X505
...
34
SUB= 145244X505 HUS-105465X505
...
35
BOLT HUS-72110606
...
36
NUT HUS-73800600
...
37
FOOTREST PAD HUS-133671
...
38
GRILL STRAP HUS-105419X505
...
41
SUB= 155013 HUS-106784X
...
42
SUB= 155013 HUS-104618X
...
43
NUT HUS-73510400
...
44
HOOD LATCH T HUS-109808X
...
45
SCREW HUS-74191008
...
46
LOCKWASHER HUS-10071000
...
47
WELDNUT HUS-2029J
...
48
SUB= 7605J HUS-123481X
...
49
SUB= 73690400 HUS-73680400
...
52
PLUG-DASH T HUS-8022J
...
53
PANEL.SIDE.RH HUS-137655X505
...
54
"PANEL,SIDE LH" HUS-132637X505
...
55
WASHER PM HUS-19091216
...
56
SUB= 50675 HUS-73220400
...
57
SPACER LT HUS-7206J
...
58
WASHER HUS-19070818
...
59
NUT HUS-73731000
...
60
SCREW HUS-74981020
...
66
SUB= 146525 HUS-123198X
...
71
SUB= 147717 HUS-124392X417
...
72
LENS LT HUS-106395X
...
73
SCREW LT HUS-17211010
...
74
PLATE.SUPT.BATTER HUS-140181
...
75
"""J"" FASTENER LT" HUS-104755X
...
76
SCREW HUS-17490512
...
77
WASHER HUS-19131210
...
78
SUB= 532132644 HUS-132644
...
79
SCREW HEX CRT HUS-17490412
...
80
WASHER HUS-19091016
...
85
BOLT HUS-74760532
...
86
SPACER HUS-121236X
...
87
NUT HUS-73800500
...
91
BOLT HUS-74780616
...
92
NUT HUS-73800600
...
93
PLATE EXTEN FEND HUS-139978
...
94
BOLT HUS-74760616
...
95
WASHER HUS-19131312
...
96
NUT HUS-73800600
...
97
WASHER HUS-19171416
...
98
SUB= 72110608 HUS-72140608
...
99
SPACER FENDER LT HUS-139977
...
100
BOLT HUS-74760616
...
101
CLIP T HUS-2751R
...
103
BRACKET ASM LH HUS-139886
...
104
BRACKET ASM RH HUS-139887
...
105
SUB= 72110608 HUS-72140608
...
110
SUB= 9151R HUS-110436X
