Husqvarna WP1442A (1994) Tractor

Model: WP1442A (1994)

Back To Assemblies

Save Part Not Listed?
product name

TRANSAXLE

...
...
1
HOUSING, UPPER HUS-5305D
...
2
SCREW HUS-1919
...
3
BALL, DETENT HUS-5112
...
4
SPRING, DETENT HUS-3626
...
5
SCREW, SET HUS-3623
...
6
KIT, SHIFTER ASSEMBLY HUS-4604
...
7
BOOT, SHIFTER HUS-5024
...
8
PUCK, FRICTION HUS-3907
...
9
SCREW TAPPING WITH SEALER HUS-5131
...
10
RING, RETAINING HUS-1106
...
11
ASSY, KIT, SHIM .625 SHAFT HUS-4689
...
12
GEAR, SPUR, 15T HUS-5406
...
13
WASHER, PLAIN .632 X 1.38 X .046 HUS-3876
...
14
KEY, WOODRUFF, #9 HUS-1746
...
15
ASSY KIT INPUT SHAFT HUS-4171
...
16
PINION BEVEL 14 TEETH HUS-3725
...
17
RING, RETAINING HUS-3624
...
18
CHAIN, 24 PITCHES HUS-3625
...
19
BEARING, FLANGE HUS-1542
...
20
GEAR, SPUR, 14 TEETH HUS-5402
...
21
COLLAR, CLUTCH HUS-5303
...
22
ASSY, KIT, CLUTCH KEYS HUS-4759
...
23
BEARING, FLANGE HUS-5415
...
24
SHAFT, INTERMEDIATE HUS-5403
...
25
KEY, WOODRUFF, #61 HUS-1375
...
26
RING, RETAINING HUS-3627
...
27
SPROCKET, 18 TEETH HUS-3830
...
28
SPACER HUS-3841
...
29
GEAR, SPUR, 37 TEETH HUS-5365
...
30
GEAR, SPUR, 35T HUS-5407
...
31
GEAR, SPUR, 30 TEETH HUS-3867
...
32
GEAR, SPUR, 25 TEETH HUS-3783
...
33
GEAR, SPUR, 22 TEETH HUS-3869
...
34
GEAR, SPUR, 19 TEETH HUS-5202
...
35
WASHER, PLAIN .640 X 1.37 X .061 HUS-3628
...
36
WASHER, PLAIN .632 X 1.00 X .026 HUS-1423
...
37
SPACER .630 X 1.00 X .169 HUS-3422
...
38
ASSY GEAR COMB 12&35 TEETH HUS-4286
...
39
SHAFT, IDLER HUS-3967
...
40
SPACER .635 X .875 X .755 HUS-3901
...
41
SPROCKET, 9 TEETH HUS-3645
...
42
GEAR, BEVEL, 42 TEETH HUS-3589
...
43
ASSY, KIT, SHIM .750 SHAFT HUS-4691
...
44
SHAFT, DRIVE HUS-3882
...
45
SCREW TAPPING HUS-3724
...
46
GEAR SPUR, 12 TEETH HUS-5364
...
47
GEAR, SPUR, 20 TEETH HUS-3866
...
48
GEAR, SPUR, 25 TEETH HUS-3719
...
49
GEAR, SPUR, 28 TEETH HUS-3868
...
50
GEAR, SPUR, 31 TEETH HUS-3683
...
51
WASHER, PLAIN .632 X 1.00 X .060 HUS-1145
...
52
WASHER, NEOPRENE HUS-5130
...
53
WASHER, PLAIN .758 X 1.25 X .031 HUS-3184
...
54
AXLE LEFT HAND HUS-3880
...
55
GEAR MITER 15 TEETH HUS-3871
...
56
RING, RETAINING HUS-3656
...
57
GEAR, SPUR, 32 TEETH HUS-3839
...
58
SHAFT, CROSS HUS-3919
...
59
GEAR, MITER, 15 TEETH HUS-3726
...
60
AXLE, R.H. HUS-3881
...
61
HOUSING, LOWER HUS-5304-E
...
62
PUCK, FRICTION HUS-3920
...
63
DISC, BRAKE HUS-3276
...
64
SPACER HUS-3758
...
65
JAW, BRAKE HUS-3916
...
66
PIN, DOWEL HUS-3843
...
67
SCREW, SELF-TAPPING HUS-5120
...
68
LEVER ACTUATING HUS-5285
...
69
WASHER, PLAIN .321 X 1.00 X .055 HUS-3760
...
70
BRACKET, ANTI-ROTATION HUS-3917
...
71
LOCKNUT 5/16-24 HUS-3847
...
72
SEAL, OIL HUS-5416
...
73
GREASE HUS-4300

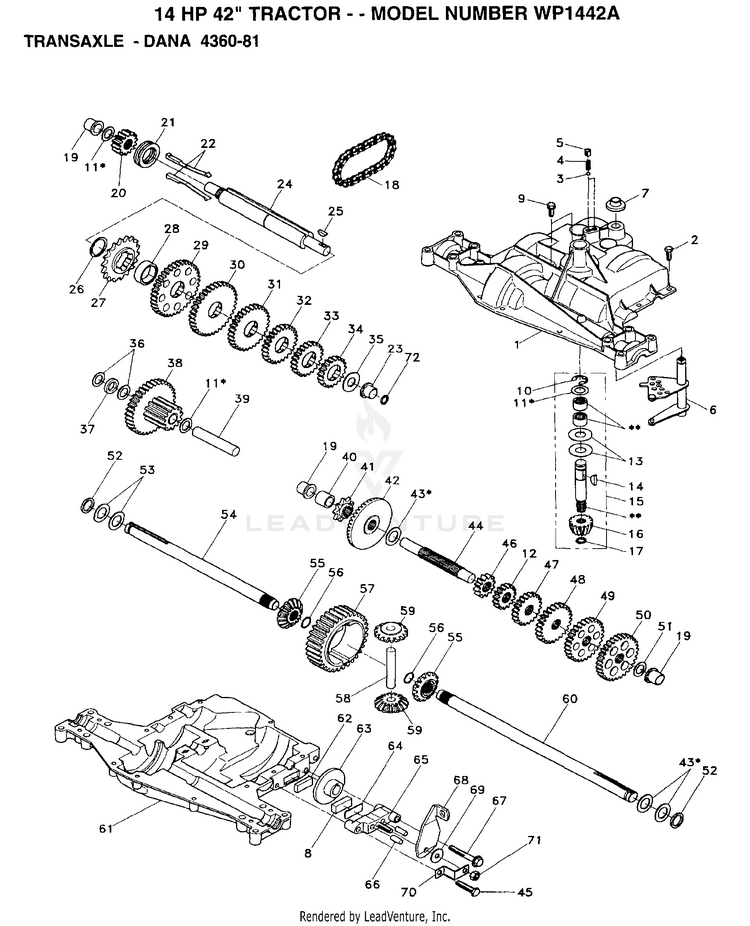

Schematic Image Zoomed
