Husqvarna WP1238B (1996) Tractor

Model: WP1238B (1996)

Back To Assemblies

Save Part Not Listed?
product name

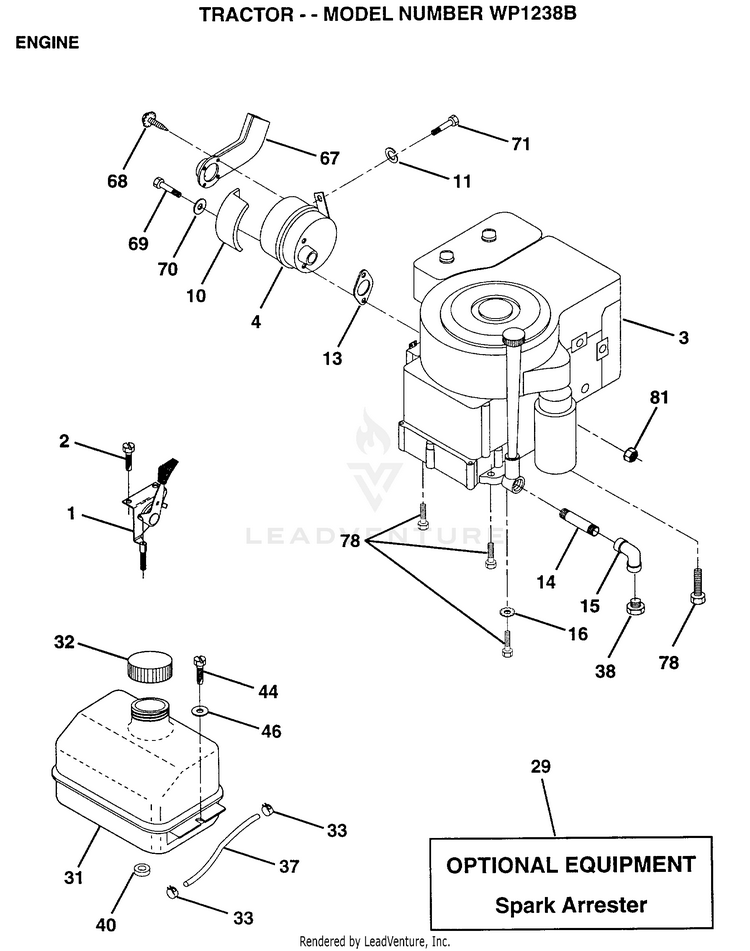

ENGINE

...
...
1
THROTTLE CONTROL HUS-132771
...
2
SCREW LT HUS-17720410
...
3
ENGINE B&S HUS-289707
...
4
MUFFLER LTV HUS-101273M
...
10
SHIELD HEAT LTV HUS-101159L
...
11
LOCKWASHER HUS-10040400
...
13
GASKET ENG 1 313 LD TIN PLATED HUS-272293
...
14
PIPE NIPPLE HUS-13280324
...
15
ELBOW HUS-13200300
...
16
LOCKWASHER HUS-11050600
...
29
SUB= 532137180 HUS-137180
...
31
TANK.FUEL.LT. HUS-109202X
...
32
CAP ASM FUEL HUS-140527
...
33
HOSE CLAMP HUS-123487X
...
37
LINE FUEL HUS-137040
...
40
SUB= 532124028 HUS-124028X
...
44
SCREW HEX CRT HUS-17490412
...
46
WASHER HUS-19091416
...
67
DEFLECTOR MUFFLER HUS-108767X
...
68
SUB= 17030814 HUS-17030808
...
69
"BOLT,HEX" HUS-74780556
...
70
WASHER T HUS-19111012
...
71
BOLT HXHD FIN HUS-71110408
...
78
SCREW HUS-17490620
...
81
NUT HUS-128861
