Husqvarna WP 18 H 44 A (Winston Pro) (1992-02) Ride Mower

Model: WP 18 H 44 A (Winston Pro) (1992-02)

Back To Assemblies

Save Part Not Listed?
product name

Engine

...
...
1
Cover, Pedal HUS-8883R
...
2
Bracket, Muffler, Mounting HUS-122439X
...
3
Muffler HUS-129464X
...
4
Control, Throttle HUS-132763
...
6
Screw, Spiderloc Hex Hd #8 x 1/2 AB HUS-17030808
...
7
Washer, Lock 1/4 HUS-10040400
...
11
Washer 13/32 x 5/8 x 16 Gauge HUS-19131016
...
12
Deflector, Muffler HUS-101326L
...
14
Washer 13/32 x 13/16 x 16 Gauge HUS-19131316
...
16
Pipe Nipple, Standard HUS-13280338
...
17
90° Elbow, 3/8 NPT HUS-13200300
...
20
Washer, Lock, External Tooth 3/4 HUS-11050600
...
21
Rod Assembly, Lever HUS-121006X
...
23
Trunnion, Depth Stop HUS-110810X
...
24
Washer 15/32 x 3/4 x 16 Gauge HUS-19151218
...
25
Ring, Klip HUS-12000037
...
26
Screw, Hex Washer Head, Thread Cutting 1/4-20x5/8 HUS-17720410
...
27
Rod, Brake, Park HUS-133261
...
28
Cap, Parking Brake HUS-71673
...
29
Washer 29/32 x 1-1/4 x 16 Gauge HUS-19292016
...
33
Pin, Cotter 3/32 x 1/2 HUS-76020308
...
34
Screw, Hex Washer Head, Thd. Roll. 3/8-16 x 1-1/2 Type TT HUS-17490624
...
35
Lift, Link, Adjustable HUS-110448X
...
36
Shaft, Pedal, Foot HUS-122424X
...
37
Roll Pin 3/16 x 1 HUS-1572H
...
38
Bearing, Nylon HUS-120183X
...
40
Trunnion, Lift HUS-110447X
...
41
Shaft Assembly, Lift HUS-131925
...
42
Nut, Hex, Special HUS-110807X
...
43
Retainer, Spring HUS-4939M
...
44
Grip, Handle HUS-109413X
...
45
Plunger, Lever, Lift HUS-122364X
...
46
Spring HUS-2878H
...
47
Lever Assembly, Hand Kit (Includes Key #21) HUS-121002X
...
48
Washer 21/32 x 1 x 16 Gauge HUS-19211616
...
49
Knob, Infinite 3/8-18 HUS-100734K
...
50
E-Ring HUS-12000022
...
52
Button, Plunger HUS-124526X
...
54
Arm Assembly, Idler HUS-123789X
...
55
Pulley, idler HUS-127783
...
56
Nut, Crownlock 3/8-16 HUS-73680600
...
57
Link, Lift HUS-110029X
...
58
Rod, Adjust, Lift HUS-110729X
...
59
Bearing HUS-105708X
...
60
Retainer, Beit HUS-123205X
...
61
Bolt, Hex 3/8-16 x 1-1/2 HUS-74760824
...
62
Washer, Hardened HUS-110812X
...
63
Ring, Klip HUS-12000039
...
64
Spring, Return, Clutch HUS-105709X
...
85
Link, Clutch HUS-105710X
...
86
Pin, Cotter 1/8 x 3/4 HUS-76020412
...
72
Tube, Manifold, L H . HUS-129465
...
73
Nut, Hex, Jam 7/16-20 HUS-73360700
...
75
Tube, Manifold, R.H. HUS-129466
...
77
Nut, Hex, Jam 3/8-16 HUS-73350600
...
79
Shield, Heat HUS-128199
...
81
Bolt, Hex 3/8-16 x 1-1/2 HUS-74780624
...
83
Gasket, Muffler HUS-8545J
...
84
Nut, Crownlock 7/16-20 HUS-73710700
...
86
Screw, Hex Wash Thdcut 1/40-20 UNC HUS-17190408
...
88
Washer 13/32 x 1 x 14 Ga. HUS-19131614
...
89
Screw, Thdrol 5/16-18 x 3/4 HUS-17490512
...
90
Shield, Heat 1/4 Turn HUS-133746
...
91
Receptacle 1/4 Turn HUS-105839X
...
92
Retainer 1/4 Turn HUS-105838X
...
93
Stud 1/4 Turn HUS-123650X
...
94
Bolt, Hex 1/4-20 x 3/4 HUS-74780412

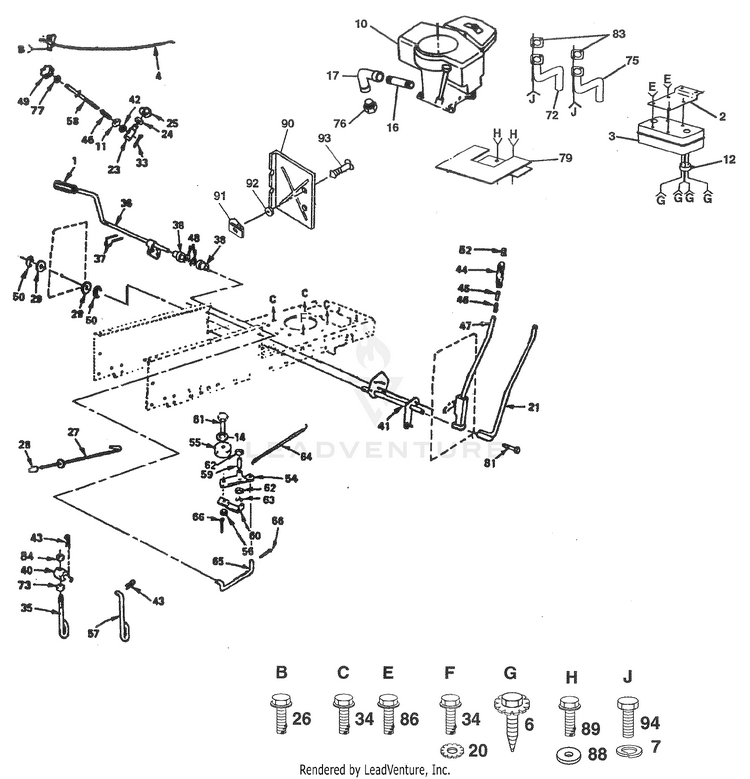

Schematic Image Zoomed
