Husqvarna WP 18 H 44 A (Winston Pro) (1992-02) Ride Mower

Model: WP 18 H 44 A (Winston Pro) (1992-02)

Back To Assemblies

Save Part Not Listed?
product name

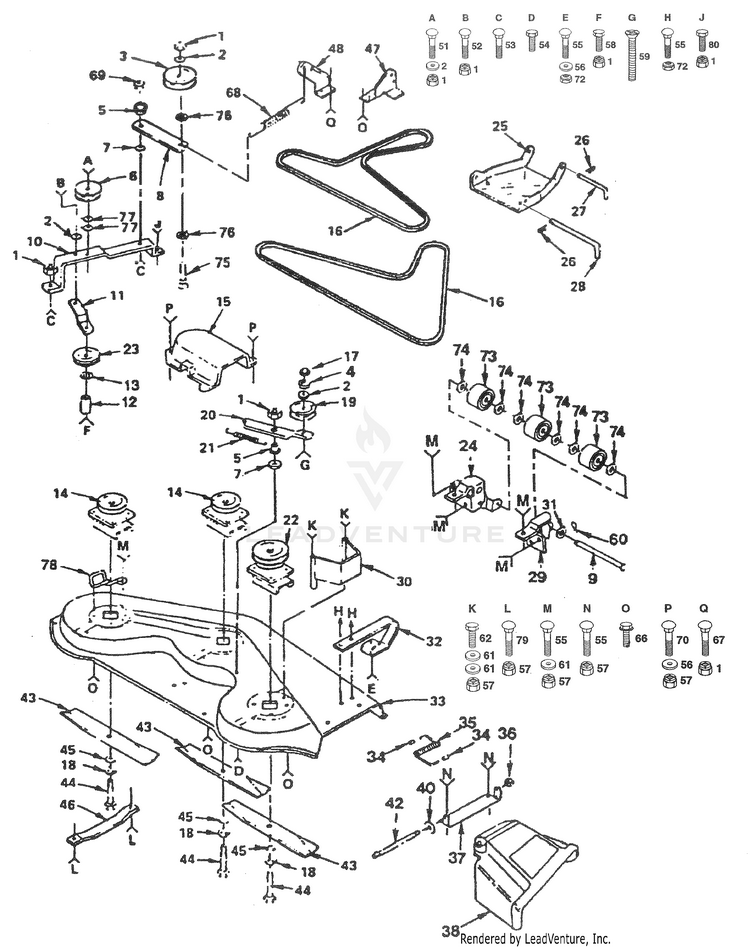

Mower Deck

...
...
1
Nut, Crownlock 3/8-16 HUS-73680800
...
2
Washer 13/32 x 1 x 14 Gauge HUS-19131614
...
3
Pulley, Idler HUS-121316X
...
4
Washer, Lock 3/8 HUS-10040600
...
5
Spacer HUS-106902X
...
6
Pulley, Idler HUS-677A451
...
7
Washer, Wear HUS-106513X
...
8
Arm, Idler HUS-121425X
...
9
Pin, Pivot HUS-109776X
...
10
Bar, Support, Idler HUS-108523X
...
11
Brace, Idler, Deck HUS-106622X
...
12
Spacer HUS-121236X
...
13
Washer 13/82 x 13/16 x 16 Gauge HUS-19131316
...
14
Mandrel, Secondary HUS-121658X
...
15
Guard HUS-106214X
...
16
V-Belt HUS-106085X
...
17
Nut, Hex 3/8-16 HUS-73220600
...
18
Washer, Lock 3/8 HUS-10030600
...
19
idler, Flat HUS-102932X
...
20
Arm, Idler, Deck HUS-106526X
...
21
Spring, Extension HUS-7644J
...
22
Mandrel, Primary HUS-121705X
...
23
Pulley, Idler HUS-102403X
...
24
Bracket, Lift, LH HUS-109599X
...
25
Link, Parallel HUS-105662X
...
26
Retainer, Spring HUS-4921H
...
27
Pin, Front Hinge HUS-105744X
...
28
Pin, Rear Hinge HUS-109835X
...
29
Bracket, Lift, RH HUS-109600X
...
30
Guard, Belt, RH HUS-108119X
...
31
Washer 15/32 x 1 x 16 Gauge HUS-19151616
...
32
Runner, RH HUS-8418J
...
33
Housing, Mower HUS-121423X
...
34
Cap, Sleeve HUS-105304X
...
35
Spring HUS-106734X
...
36
Nut, Push HUS-110452X
...
37
Bracket, Deflector HUS-109743X
...
38
Guard, Discharge HUS-109785X
...
40
Washer 11/32 x 5/8 x 16 Gauge HUS-19111016
...
42
Rod, Hinge HUS-106735X
...
43
Blade, Mower HUS-106635X
...
44
Bolt, Hex 3/8-24 x 1-1/2 Grade 5 HUS-74810824
...
45
Washer 13/32 x 1-1/4 x 12 Gauge HUS-19132012
...
46
Runner LH HUS-7631J
...
47
Bracket, Suspension Pear RH HUS-123807X
...
48
Bracket, Suspension, Rear, LH HUS-123808X
...
51
Bolt, Carriage 3/8-16 x 1-3/4 HUS-72140614
...
52
Bolt, Carriage 3/8-18x1 HUS-72140608
...
53
Bolt, Carriage 3/8-16 x 1 -1/2 HUS-72140812
...
54
Bolt, Hex 3/8-16 x 1-1/4 HUS-74760620
...
55
Bolt, Carriage 5/16-18 x 3/4 HUS-72140506
...
56
Washer 11/32 x 11/16 x 16 Gauge HUS-19111116
...
57
Nut, Crownlock 5/16-18 HUS-73680500
...
58
Bolt, Hex 3/8-16 x 3 HUS-74760848
...
59
Screw, Flat Head 3/8-16 x 2 HUS-74110632
...
60
Pin, Cotter HUS-76020412
...
61
Washer 11/32 x 3/4 x 16 Gauge HUS-19111216
...
62
Bolt, Hex 5/16-18 x 5 HUS-74780580
...
66
Screw, Hex Washer Head, Thd., Roll. 3/8-16 x 3/4 HUS-17490612
...
67
Bolt, Carriage 3/8-16 x 3/4 HUS-72140806
...
68
Spring, Extension HUS-102727X
...
69
Nut, Centerlock 3/8-16 HUS-73930600
...
70
Bolt, Carriage 5/16-18 x 3/4 HUS-72110506
...
72
Lockout 5/16-18 HUS-1685H
...
73
Roller, Nose HUS-109729X
...
74
Washer 15/32 x 1 x 10 Gauge HUS-19151610
...
75
Bolt, Carriage 3/8-16 x 2-1/2 HUS-72140620
...
76
Washer 13/32 x 3/4 x 10 Gauge HUS-19131210
...
77
Washer 13/32 x 7/8 x 10 Gauge HUS-19131410
...
78
Keeper, Mandrel, LH HUS-121352X
...
79
Bolt, Carriage 5/16-18 x 5/8 HUS-72110505
...
80
Bolt, Fin Hex 3/8-16 x 1 HUS-74760616
...
xx
Mower Deck, Complete HUS-121826X
