Husqvarna WP 18 H 44 A (Winston Pro) (1992-02) Ride Mower

Model: WP 18 H 44 A (Winston Pro) (1992-02)

Back To Assemblies

Save Part Not Listed?
product name

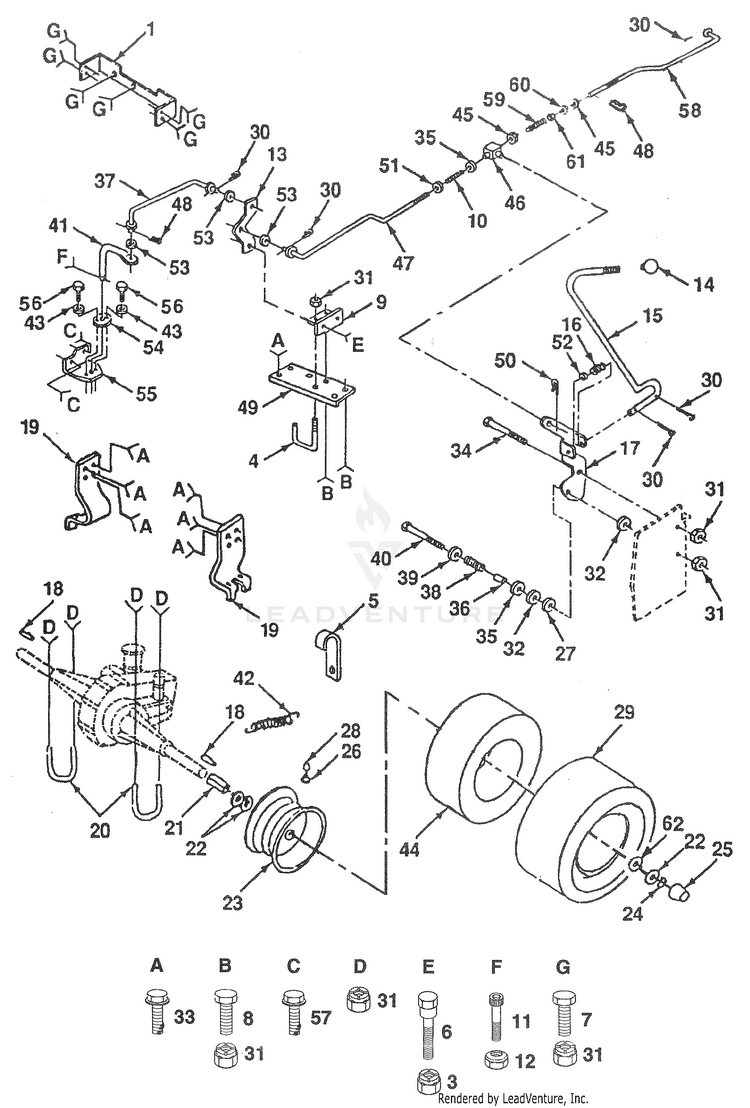

Transaxle And Rear Wheel

...
...
1
Bracket, Mounting, Hydro Transaxle, Agri-Fab, Hydro, Model HUS-121187X
...
2
Number 121431X HUS-121431X
...
3
Nut, Crownlock 5/16-18 HUS-73680500
...
4
Keeper, Centerspan HUS-121190X
...
5
Clip, Fuel Line HUS-2751R
...
6
Bolt, Shoulder 5/16-18 HUS-100536K
...
7
Bolt, Hex Fin 3/8-16 UNC x 3/4 HUS-74780812
...
8
Bolt, Hex Fin 3/8-16 UNC x 1 HUS-74760616
...
9
Bracket, Bellcrank, Pivot HUS-121206X
...
10
Spring, Compression HUS-102670X
...
11
Screw, Hex Socket Head #10-24 UNC HUS-74581014
...
12
lockout #10-24 HUS-69180
...
13
Bellcrank HUS-121204X
...
14
Knob, Control HUS-121274X
...
15
Rod, Control HUS-110845X
...
16
Spring, Torsion HUS-121631X
...
17
Bracket, Control Rod HUS-108196X
...
18
Key, Square 2.5 x .1845/. 1865 HUS-123583X
...
19
Bracket, Transaxle HUS-126649X
...
20
U-Bolt 3/8-16 x 2-7/8 HUS-121189X
...
21
Spacer, Split HUS-121199X
...
22
Washer 25/32 x 1-1/4 x 16 Gauge HUS-121749X
...
23
Rim, Rear HUS-106108X361
...
24
E-Ring HUS-12000001
...
25
Cap, Axle HUS-104757X
...
26
Stem, Valve HUS-65139
...
27
Washer, Phenolic HUS-108972X
...
28
Cap, Valve HUS-59192
...
29
Tire, Rear HUS-122082X
...
30
Pin, Cotter 1/8 x 3/4 HUS-76020412
...
31
Nut, Crownlock 3/8-16 HUS-73680600
...
32
Spacer, Nylon 1-1/2 x .65 ID x .185 THK HUS-108200X
...
33
Screw, Hex Washer Head, Thd., Roll, 3/8-16 x 3/4 HUS-17490612
...
34
Bolt, Shoulder 3/8-16 x 1-3/8 HUS-108518X
...
35
Washer 21/32 x 1-1/4 x 16 Gauge HUS-19212016
...
36
Spacer 13/32 x 5/8 x 2-1/2 HUS-108201X
...
37
Link, Control HUS-121202X
...
38
Spring, Compression HUS-108844X
...
39
Washer 13/32 x 1-1/4 x 12 Gauge HUS-19132012
...
40
Bolt, Hex 3/8-16 x 3 HUS-74760648
...
41
Arm Assembly, Pump Control HUS-121209X
...
42
Spring, Brake Return HUS-110422X
...
43
Washer 7/32 x 1/2 x 16 Gauge HUS-19070816
...
44
Tube, Tire HUS-7152J
...
45
Lockout, Hex w/Washer Insert 3/8-16 UNC HUS-73800600
...
46
Trunnion HUS-108212X
...
47
Rod, Control, Adjustable HUS-121750X
...
48
Clip, Hairpin HUS-4497H
...
49
Bracket, Chassis Reinforcement, Hydro HUS-123186X
...
50
Spring, Retainer HUS-4921H
...
51
Washer 13/32 x 3/4 x 12 Gauge HUS-19131212
...
52
Washer 15/32 x 15/16 x 16 Gauge HUS-19151516
...
53
Washer, Spring HUS-110739X
...
54
Guide, Control HUS-121217X
...
55
Bracket, Control Guide HUS-121216X
...
56
Screw Tap Hex #10-24 x .625 HUS-17021010
...
57
Screw, Thdrol 5/16 -18 x 3/4 HUS-17490512
...
58
Rod, Brake HUS-132654
...
59
Spring, Brake Rod HUS-106888X
...
60
Washer 13/32 x 13/16x16 Gauge HUS-19131316
...
61
Nut, Hex, Jam 3/8-16 UNC HUS-73350600
...
62
Washer 25/32 x 1 -5/8 x 16 Ga. HUS-121748X
