Husqvarna WP 18 H 44 A (Winston Pro) (1992-02) Ride Mower

Model: WP 18 H 44 A (Winston Pro) (1992-02)

Back To Assemblies

Save Part Not Listed?
product name

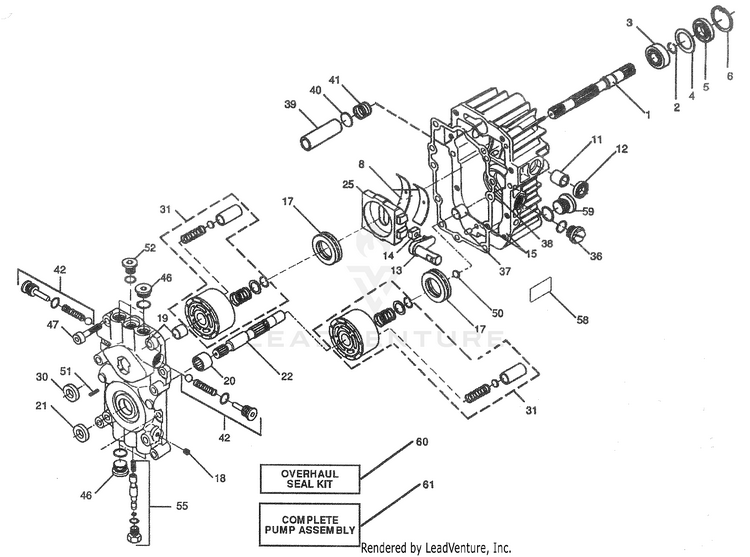

Sundstrand Pump - - Model Number Bdu-10

...
...
1
Shaft, Pump HUS-122756X
...
2
Ring, Retaining HUS-122716X
...
3
Bearing, Ball HUS-122745X
...
4
Spacer HUS-122715X
...
5
Seal, Lip HUS-122700X
...
6
Ring, Retaining HUS-122699X
...
8
Bearing, Cradle HUS-122787X
...
11
Bearing, Journal HUS-122747X
...
12
Seal, Lip HUS-122717X
...
13
Arm, Trunnion HUS-122748X
...
14
Guide, Slot HUS-122749X
...
15
Housing Kit, Transmission HUS-127146X
...
17
Bearing, Thrust, Ball HUS-122770X
...
18
Plug, Pipe HUS-122771X
...
19
Center Section Kit HUS-127147X
...
20
Bearing, Needle HUS-122773X
...
21
Seal, Lip HUS-122722X
...
22
Shaft, Motor HUS-122750X
...
25
Swashplate, Variable HUS-127148X
...
30
Seal, Lip HUS-122728X
...
31
Block Kit, Cylinder, Pump HUS-127149X
...
82
Block Kit, Cylinder, Motor HUS-127150X
...
36
Plug, Plastic HUS-127151X
...
37
Pin, Stainless, Headless HUS-122788X
...
38
Gasket, Center Section HUS-122718X
...
39
Filter HUS-122731X
...
40
Washer, Thrust HUS-122730X
...
41
Spring, Helical, Compression HUS-122728X
...
42
Check Valve Kit HUS-127152X
...
46
Plug, Stainless, Threaded HUS-122787X
...
47
Screw, Socket Head, Cap HUS-122752X
...
50
Washer, Thrust HUS-122788X
...
51
Pin, Spiral HUS-122789X
...
52
Plug, Stainless, Threaded HUS-122754X
...
55
Bypass Valve Kit HUS-127153X
...
58
Adhesive Label, Bar Coded HUS-122727X
...
59
Plug, Stainless, Threaded HUS-122790X
...
60
Overhaul Seal Kit, BDU-10 Includes; Items marked with *, O-Rings for Check Valves, and Bypass Valve HUS-127154X
...
61
Pump Assembly, Complete HUS-121430X
