Husqvarna WP 18 H 44 A (Winston Pro) (1992-02) Ride Mower

Model: WP 18 H 44 A (Winston Pro) (1992-02)

Back To Assemblies

Save Part Not Listed?
product name

Drive

...
...
1
Retainer, Belt HUS-109070X
...
2
Bracket, Switch HUS-108236X
...
3
Screw, Tapping, Hex #10-24 x 1/2 HUS-17021008
...
4
Keeper Belt Engine HUS-129921
...
5
V-Belt, Drive HUS-123481X
...
6
Retainer Asm., Clutch HUS-109189X
...
7
Bolt, Rdhd Sqnk 5/16 -18 x 3/4 HUS-72140506
...
9
Washer 13/32 x 13/18 x 12 Guage HUS-19131312
...
10
Upstop, Mower HUS-121252X
...
11
Nut, Crownlock 3/8-16 HUS-73680600
...
12
Bolt, Carriage 3/8-16 x 1 HUS-72140608
...
15
Washer 17/32 x 15 x 16 x 16 Gauge HUS-19171516
...
18
Arm Assembly, Suspension, LH HUS-121599X
...
17
Retainer, Spring HUS-9135R
...
18
Idler, Flat HUS-123674X
...
19
Nut, Hex 1/2-13 HUS-73220800
...
20
Trunnion, Lift, Lower HUS-106308X
...
22
Arm Assembly, Suspension, RH HUS-121598X
...
23
Bolt, Shoulder 3/8-16 HUS-105848X
...
24
Pulley, Engine HUS-109841X
...
25
Bolt, Hex, Fin 7/16-20 UNF x 4-1/4 Grade 8 HUS-71170768
...
26
Washer, Lock 7/16 HUS-10040700
...
27
Bolt, Hex 3/8-16 x 2-3/4 HUS-74760644
...
28
Spacer HUS-4470J
...
33
Spring, Retainer HUS-4921H
...
36
Bolt, Hex 3/8-16 x 1 HUS-74760616
...
37
Clutch, Electric HUS-126112X
...
38
Nut, Centerlock, Flange 3/8-16 HUS-73980600
...
39
Washer 1-1/2 x 15/32 x 1/4 HUS-126197X
...
42
Washer, Spring HUS-110739X
...
43
Nut, Crownlock 5/16-18 HUS-73680500

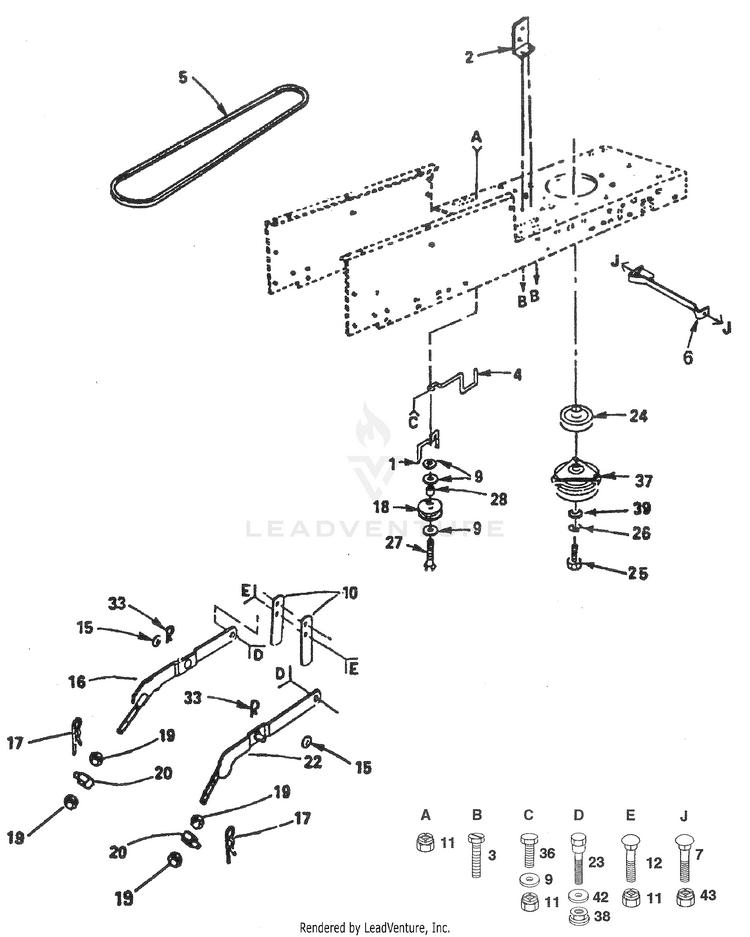

Schematic Image Zoomed
