Husqvarna WP 18 H 44 A (Winston Pro) (1992-02) Ride Mower

Model: WP 18 H 44 A (Winston Pro) (1992-02)

Back To Assemblies

Save Part Not Listed?
product name

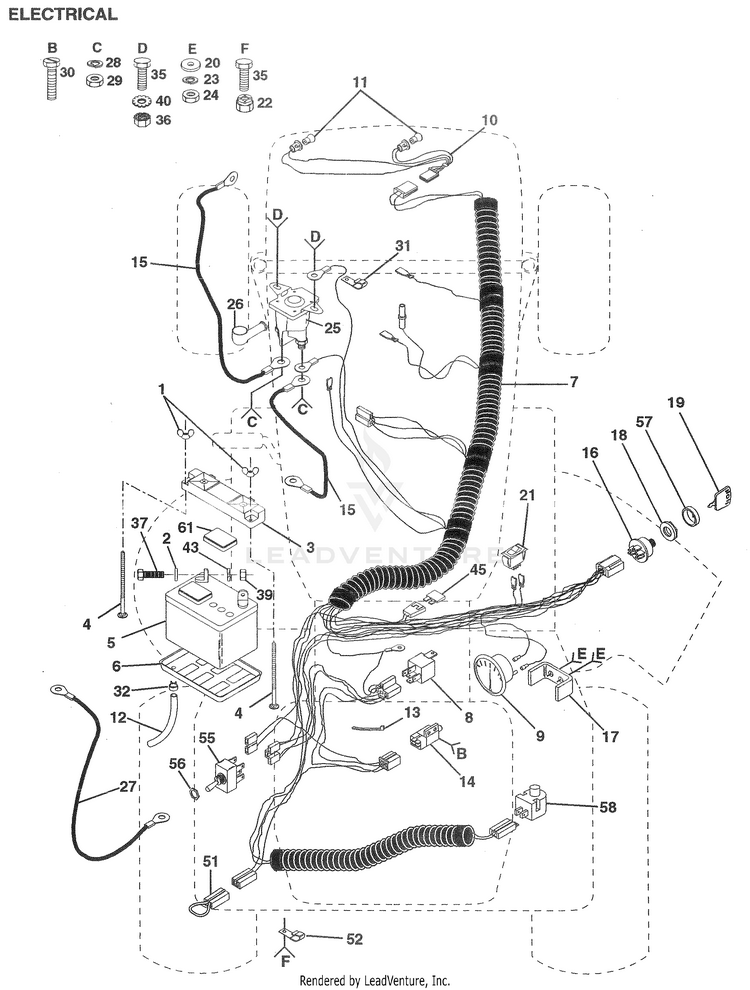

Electrical

...
...
1
Wing Nut 1/4-20 HUS-123198X
...
2
Washer 9/32 x 5/8 x 16 Ga HUS-19091018
...
3
Guard, Terminal HUS-102476X
...
4
Battery Bolt 1/4-20 x 7-1/2 (Bolt, Carriage, Rd. Hd. Sq, Neck) HUS-72240480
...
5
Battery HUS-121537X
...
6
Battery Tray HUS-7603J
...
7
Harness, Ignition (includes item 8) HUS-136236
...
8
Relay HUS-109748X
...
9
Ammeter HUS-9433R
...
10
Harness, Light Socket HUS-127441X
...
11
Bulb, Light HUS-7662J
...
12
Tube, Battery Tray HUS-100541K
...
13
Cable Tie HUS-7192J
...
14
Switch, Interlock, Clutch HUS-109553X
...
15
Cable, Battery (Battery to Solenoid) HUS-4206J
...
16
Ignition Switch HUS-102972X
...
17
Bracket, Ammeter HUS-131708
...
18
Nut, Ignition HUS-14211X
...
19
Key HUS-122147X
...
20
Washer 7/32 x 1/2 x 18 Gauge HUS-19070818
...
21
Switch, Light HUS-110712X
...
22
Nut, Crownlock 1/4-20 HUS-73680400
...
23
Washer, Lock HUS-10101000
...
24
Nut HUS-73911000
...
25
Solenoid HUS-109081X
...
26
Terminal Cover HUS-131568
...
27
Cable, Battery (Battery to Ground) HUS-4207J
...
28
Washer, Lock HUS-10090400
...
29
Nut, Hex Jam 1/4 x 20 UNC HUS-73350400
...
30
Screw, Tap, Hex Hd. #10-24 UNC HUS-17021008
...
31
Clip, Fuel Line HUS-2751R
...
32
Clamp, Hose HUS-109598X
...
35
BoIt.Hex 1/4-20 x 1/2 Gr. 5 HUS-74780408
...
36
Nut, Keps, Hex 1/4-20 HUS-73510400
...
37
Bolt, Hex i/4-20 x 3/4 HUS-74780412
...
39
Nut, Hex 1/4-20 HUS-73220400
...
40
Washer, Lock 1/4 Ext. Tooth HUS-11050400
...
43
Washer, Lock 1/4 HUS-10040400
...
45
Fuse, 30 Amp. HUS-108824X
...
51
Loop, Wire Tiller Attachment HUS-102501X
...
52
Clip, Insulated HUS-235R
...
55
Switch PTO HUS-126016X
...
56
Nut, Hex HUS-4022J
...
57
Coyer Serv Key HUS-123620X
...
58
Switch, Plunger HUS-121305X
...
61
Caps, Battery Set HUS-121264X
