Husqvarna WP 18 H 44 A (Winston Pro) (1992-02) Ride Mower

Model: WP 18 H 44 A (Winston Pro) (1992-02)

Back To Assemblies

Save Part Not Listed?
product name

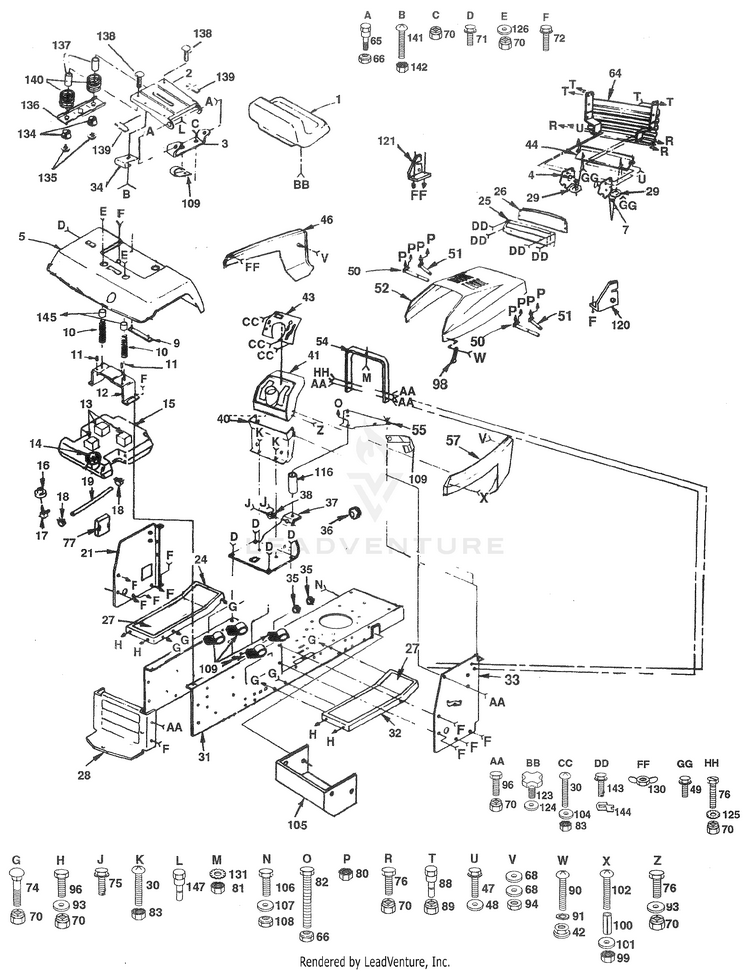

Chassis And Enclosures

...
...
1
Seat HUS-127424X
...
2
Pan, Seat HUS-131451
...
3
Bracket, Pivot, Seat HUS-126656X
...
4
Bracket, Asm. LH. Pivot HUS-110855X
...
5
Fender HUS-121642X505
...
7
Bracket, Asm. R.H. Pivot HUS-110854X
...
9
Strap, Fender HUS-105511X
...
10
Spring, Compression.Seaf HUS-124181X
...
11
Nut, Push HUS-105531X
...
12
Bracket, Fender HUS-105509X
...
13
Pad, Spacer HUS-106082X
...
14
Gap, Fuel HUS-123549X
...
15
Tank, Fuel HUS-106020X
...
18
Bushing HUS-3646J
...
17
Stem, Tank, Fuel HUS-8710J
...
18
Clamp, Hose HUS-123487X
...
19
Line, Fuel HUS-5277J
...
21
Panel, Dash, L.H. HUS-124118X
...
24
Footrest, L.H. HUS-105465X505
...
25
Bezel, Assembly HUS-124892X417
...
28
Lens HUS-106395X
...
27
Pad, Footrest HUS-133671
...
28
Drawbar HUS-127368
...
29
Washer, 11/32 X 3/4 X 12 Ga. HUS-19111212
...
30
Screw, Cr. Thd. 5/16-18 x 3/4 HUS-74180512
...
31
Chassis HUS-127213X
...
32
Footrest, R.H. HUS-105464X505
...
33
Panel, Dash, R.H. HUS-133748
...
34
Clip, Insulated HUS-4171R
...
35
Bushing, Snap, Split HUS-110436X
...
38
Bushing, Snap HUS-9151R
...
37
Saddle HUS-121195X012
...
38
Bushing, Steering HUS-1554J
...
40
Dash Assembly, Lower HUS-104805X
...
41
Dash HUS-124252X
...
42
Nut, Weld HUS-2029J
...
43
Plate, Dash HUS-121723X014
...
44
Strap, Grill HUS-105419X505
...
46
Panel, Side, L.H. HUS-132638X505
...
47
Screw, Hex Wsh. Thd. Cut 1/4-20 X 3/4 HUS-17190412
...
48
Washer 9/32 X 5/8 X 16 Ga. HUS-19091016
...
49
Screw, Hex Wsh Thdrol 5/16-18 X 3/4 HUS-17490512
...
50
Strap Assembly, Hinge, Rear HUS-106784X
...
51
Strap Assembly, Hinge, Front HUS-104818X
...
52
Hood HUS-132635X505
...
54
Support, Dash HUS-124130X
...
55
Plate, Support, Battery HUS-108965X
...
57
Pane!, Side R.H. HUS-132639X505
...
64
Grill Assembly HUS-122100X
...
85
Bolt, Shoulder 5/16-18 HUS-105529X
...
68
Nut, Lock 5/16-18 HUS-73880500
...
68
Washer 9/32 X 3/4 X 16 Ga. HUS-19091218
...
70
Nut, Crownlock 3/8-16 HUS-73680800
...
71
Screw, Hex Washer Thread Rolling 3/8-16 x 1/2 HUS-17490608
...
72
Screw, Hex Washer Thread Rolling 3/8 -16 x 3/4 HUS-17490812
...
74
Bolt, Carriage 3/8-16 x 3/4 HUS-72110606
...
75
Screw, Hex Self Tapping #10-16 x 1/2 HUS-17431008
...
76
Bolt, Hex 3/8-16 x 1 HUS-74760618
...
77
Cover, Access HUS-121794X
...
80
Nut, Hex Keps HUS-73510400
...
81
Nut, Hex 1/4-20 HUS-78220400
...
82
Bolt, Hex 5/16-18 x 2 HUS-74760532
...
83
Nut, Keps 5/16-18 HUS-73510500
...
88
Bolt, Shoulder 1/4-20 HUS-123481X
...
89
Crownlock Nut 1/4-20 HUS-78680400
...
90
Screw, Pan Hd Mach. #10-24 1/2 HUS-74191008
...
91
Washer, Lock #10 HUS-10071000
...
93
Washer 13/32 x 13/16 x 12 Ga. HUS-19131312
...
94
Nut, Fin Hex 1/4-20 UNO HUS-73220400
...
96
Bolt, Hex 3/8 -16 x 3/4 HUS-74760812
...
98
Latch, Hood HUS-109808X
...
99
Nut, Keps 10-24 HUS-73731000
...
100
Spacer, Split 10 x 3/4 HUS-7208J
...
101
Washer 7/32 x 1/2 x 18 Ga. HUS-19070818
...
102
Screw, Mach. Cr. Pan 10-24 x 1-1/4 HUS-74981020
...
104
Washer 11/32 x 11/16 x 16 Ga. HUS-19111116
...
105
Shield, Heat, Front HUS-123665X
...
106
Bolt, Hex 1/4-20 x 3/4 HUS-74760412
...
107
Washer 9/32 x 7/8 x 16 Ga. HUS-19091416
...
108
Nut, Self-Retaining 1/4-20 HUS-126850X
...
109
Clip HUS-2751R
...
116
Spacer HUS-121238X
...
120
Bracket Assembly, R.H. HUS-110853X
...
121
Bracket Assembly, L.H. HUS-110852X
...
123
Adjustment Knob HUS-120068X
...
124
Washer 17/32 x 1 -3/16 x 12 Ga. HUS-19171912
...
125
Washer Lock 3/8 Ext. Tooth HUS-11050800
...
126
Washer 13/32 x 1 x 14 Ga. HUS-19131814
...
130
Wing Nut HUS-123198X
...
131
Washer, 1/4 Ext. Tooth HUS-11050400
...
134
Bushing, Snap .80 HUS-121248X
...
185
Nut, Hex, Large, Flange, Lock HUS-123976X
...
136
Bracket, Switch Mount HUS-121246X
...
137
Spacer, Split .28 x .88 HUS-121249X
...
138
Bolt.Carr. 1/4-20 x 1-3/8 HUS-72050411
...
139
Foam Strip HUS-121251X
...
140
Spring, Compression HUS-121250X
...
141
Screw, Pan Hd. #10-32 HUS-74641008
...
142
Nut, Keps #10 HUS-73951000
...
143
Screw, Hex WH HD Tap #10-16 X 5/8 HUS-17211010
...
144
J Fastener HUS-104755X
...
145
Spring Cap HUS-124238X
...
147
Bolt, Shoulder 5/16-18 x.62 HUS-127018X
