Husqvarna WP 18 H 44 A (Winston Pro) (1992-02) Ride Mower

Model: WP 18 H 44 A (Winston Pro) (1992-02)

Back To Assemblies

Save Part Not Listed?
product name

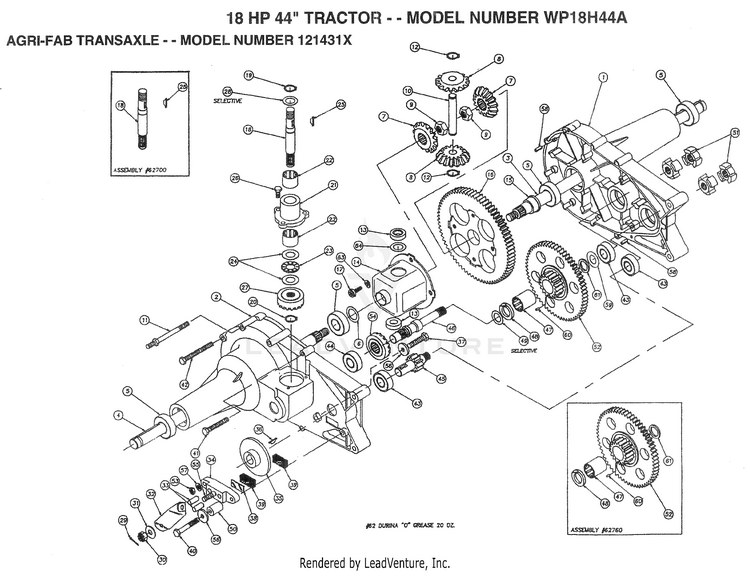

Agri-Fab Transaxle - - Model Number 121431X

...
...
1
Housing, Half L.H. HUS-122614X
...
2
Housing, Half R.H. HUS-122615X
...
3
Axle L.H. HUS-122616X
...
4
Axle R.H, HUS-122620X
...
5
Bearing, Ball HUS-122621X
...
6
Washer, Flat 3/4 x 1-1/8 x .030 HUS-122822X
...
7
Gear, Miter HUS-122623X
...
8
Gear, Miter HUS-122624X
...
9
Nut, Hex Jam w/Patch 1/2-20 HUS-122625X
...
10
Shaft, Cross HUS-122626X
...
11
Screw, Stud HUS-122688X
...
12
Snap, Ring HUS-122629X
...
13
Bearing, Thrust HUS-122631X
...
14
Housing Assembly, Differential HUS-122833X
...
15
Bearing, Flange HUS-122834X
...
16
Gear, Differential 72 Tooth HUS-122640X
...
17
Bolt, Torx Head 1/4-28 x 5/8" HUS-122641X
...
18
Shaft, Input HUS-122642X
...
19
Snap, Ring HUS-122643X
...
20
Retaining Ring 7/16" HUS-122844X
...
21
Housing, Input Bearing HUS-122845X
...
22
Bearing, Needle HUS-122646X
...
23
Bearing, Thrust HUS-122847X
...
24
Washer, Flat 6/8 x 1-1/8 x ,030 HUS-122648X
...
25
Key, Hi-Pro 3/32 x 5/8 HUS-122849X
...
28
Screw, Hex W/Patch 1/4-20 x 3/4 HUS-122850X
...
27
Gear, Input Pinion 17 Tooth HUS-122651X
...
28
Washer, Flat .62 x 1 x ,05 HUS-123061X
...
xx
Washer, Fiat ,62 x 1,125 x .060 HUS-122678X
...
xx
Washer, Flat .82 x 1 x .040 HUS-122854X
...
29
Pin, Cotter HUS-122656X
...
30
Nut, Castle 5/18-24 HUS-122858X
...
31
Washer, Fiat .343 x .88 x .062 HUS-122659X
...
32
Arm, Brake Actuator HUS-122660X
...
33
Pin, Brake Actuating HUS-122682X
...
34
Brake, Yoke HUS-122663X
...
35
Disc, Brake HUS-122684X
...
38
Key, Hi-Pro 3/16 x 5/8" HUS-123065X
...
37
Screw, Hex 1/4-20 x 1.50 HUS-122666X
...
38
Plate, Puck HUS-122687X
...
39
Puck, Brake HUS-122688X
...
40
Screw, Hex w/Patch 1/4-20 x 2.00 HUS-123068X
...
41
Screw, Hex Self-Tap 1/4-20 x 2.00 HUS-122670X
...
42
Screw, Hex Self-Tap 1/4-20 x 3.00 HUS-122871X
...
43
Bearing, Ball HUS-126982X
...
44
Bearing, Bail HUS-122673X
...
45
Shaft, Pinion W/11 Tooth Gear HUS-122674X
...
46
Shaft, Drive HUS-122675X
...
47
Bearing, Needle HUS-123059X
...
48
Bronze Thrust Brg. 5/8 x 1-1/4 x 7/64 HUS-123060X
...
49
Washer, Fiat .62 x 1.0 x ,040 HUS-122654X
...
xx
Washer, Flat ,62 x 1.0 x .050 HUS-123061X
...
50
Spacer HUS-122689X
...
51
Coupling HUS-121839X
...
52
Gear, 60 and 17 Tooth HUS-126975X
...
53
Nut, Hex 1/4-20 HUS-122882X
...
54
Gear, Drive Pinion 17 Tooth HUS-122683X
...
55
Bolt, Square Head HUS-122684X
...
56
Washer 15/16 x.265 x . 125 HUS-122885X
...
57
Washer, Spring Lock 1/4" HUS-122686X
...
58
Pin, Roll 3/16" x 1/2" HUS-122687X
...
59
Washer, Flat .62 x 1,0 x .030 HUS-122652X
...
80
Pin, Dowel 3/32 x 1/4 HUS-123062X
...
81
Seal, Grease HUS-123063X
...
62
Shell, Durina-O Grease (20 oz.) HUS-126976X
...
63
Washer, Head Spring Lock 1/4" HUS-126977X
...
64
Washer, Fiat .50 x 1.0 x .020 HUS-128978X
...
xx
Washer, Fiat .50 x 1.0 x .030 HUS-126979X
...
65
Assembly, Gear, Reduction HUS-126980X
...
86
Assembly, Shaft, Input HUS-126981X
...
xx
Transaxle Assembly Complete HUS-121431X
