Husqvarna WEX155HCRDC (1999 & Before) Tractor

Model: WEX155HCRDC (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

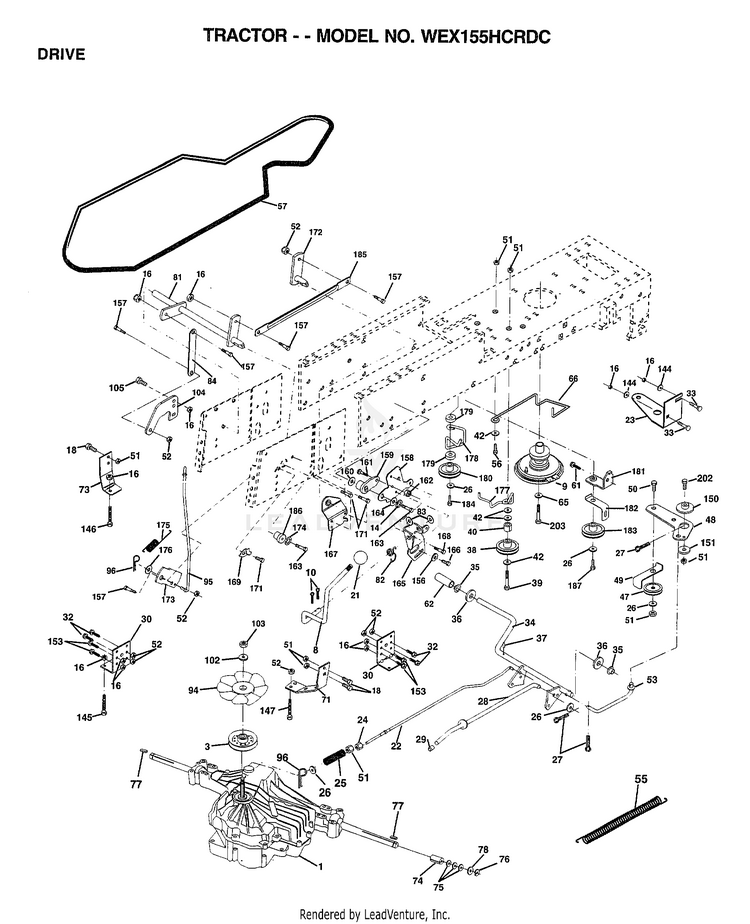

DRIVE

...
...
1
CHECK WITH SUPPLIER HUS-SUPPLIER
...
3
PULLEY.TRANSAXLE HUS-143995
...
8
ROD.SHIFT.FENDER.ADJ.LT.CRD HUS-165619
...
9
CLUTCH ASM NORAM HUS-170163
...
10
PIN COTTER 1/8 HUS-76020416
...
14
LOCKWASHER HUS-10040400
...
16
NUT HUS-73800500
...
18
BOLT HUS-74780616
...
21
KNOB T (1/2-HOLE) HUS-106933X
...
22
ROD.BRAKE.CRD HUS-165688
...
23
BRACKET CLUTCH HUS-170017
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
ROD.BRAKE.PARK.LT HUS-145204
...
29
PLUNGER CAP T HUS-71673
...
30
BRACKET MTG TRANSAXLE HUS-169592
...
32
BOLT HUS-74760512
...
33
BOLT HUS-72140506
...
34
SHAFT.ASM.PEDAL.FOOT.CRD HUS-165496
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
PULLEY.FLAT.IDLER HUS-165630
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
42
WASHER HUS-19131312
...
47
SUB= 139245 HUS-127783
...
48
BELLCRANK.CLUTCH HUS-154407
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
SUB= 73690500 HUS-73680500
...
53
"LINK, CLUTCH T" HUS-105710X
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
"V-BELT.KEV.112""" HUS-165632
...
61
SCREW HUS-17060612
...
62
PEDAL COVER T HUS-8883R
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER-BELT HUS-154778
...
71
STRAP TORQ LH HYD HUS-140158
...
73
"STRAP-TORQUE,RH" HUS-156347
...
74
SPACER SPLIT HUS-121199X
...
75
WASHER HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
...
81
ASM.SHAFT HUS-165585
...
82
"SPRING,TORSION" HUS-123782X
...
83
WASHER HUS-19171216
...
84
LINK.TRANSAXLE HUS-165629
...
94
"FAN 7"" HYDRO" HUS-140462
...
95
CNTRL.ASM.BYPASS.HYDRO HUS-165935
...
96
RETAINER M HUS-4497H
...
102
WASHER BELLEVILLE HUS-141322
...
103
SUB= 73360800 HUS-73940800
...
105
SCREW CAP 5/16-18 HUS-71070516
...
144
WASHER HUS-19111016
...
145
BOLT.HEX.FLGHD HUS-74490540
...
147
BOLT.HEX.FLGHD HUS-74490524
...
150
BUSHING.BELLCRANK.GRD.DR HUS-165850
...
151
WASHER HUS-19133210
...
153
SUB= 77394 HUS-74760516
...
156
WASHER.SRRTD.5/16 HUS-166002
...
157
"BOLT,SHOULDER" HUS-153236
...
158
BRKT.SHIFT.MOUNT HUS-165589
...
159
HUB.SHIFT HUS-165494
...
160
WASHER HUS-19292016
...
161
BOLT T HUS-72140406
...
162
SUB= 73690400 HUS-73680400
...
163
NLA HUS-74780416
...
164
WASHER.5/8X.281X10GA HUS-19091010
...
165
BRKT.PIVOT.LEVER HUS-165623
...
166
SCREW.5/16-18X5/8 HUS-166880
...
167
BRKT.SUPT.SHIFT.CRD HUS-165588
...
168
BOLT.SHOULDER.5/16-18X.561 HUS-165492
...
169
PLATE.FASTENING HUS-165580
...
171
SCREW LT HUS-17490608
...
172
LINK.SHAFT.CRD.HYDRO HUS-165541
...
173
BKRT.HYDRO.BYPASS.CRD HUS-165934
...
174
SUB= 10040400 HUS-10090400
...
175
SPRING.BYPASS.CRD HUS-165931
...
176
WASHER HUS-19070816
...
177
KEEPOER.FLAT.IDLER HUS-165932
...
178
KEEPER.BELT.IDLER HUS-165933
...
179
WASHER HUS-120958X
...
180
PULLEY.FLAT HUS-165936
...
181
BRKT.IDLER.GRD.DR.CRD HUS-165797
...
182
"KEEPER.BELT.2.5"".OD.CRD" HUS-165634
...
183
PULLEY.V-IDLER HUS-165626
...
184
SCREW.HXWSH.3/8 HUS-17490644
...
185
SHAFT.ASM.SHIFTER.FRT.CRD HUS-165587
...
186
HUB.TAPERED.ROUND.CRD HUS-165614
...
187
SCREW HUS-17490620
...
188
SUB= 9151R HUS-110436X
...
202
BOLT.3/8-16X1.50 HUS-72110612
...
203
BOLT HEX HUS-71170780
