Husqvarna WEX155HCRDA (1999 & Before) Tractor

Model: WEX155HCRDA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

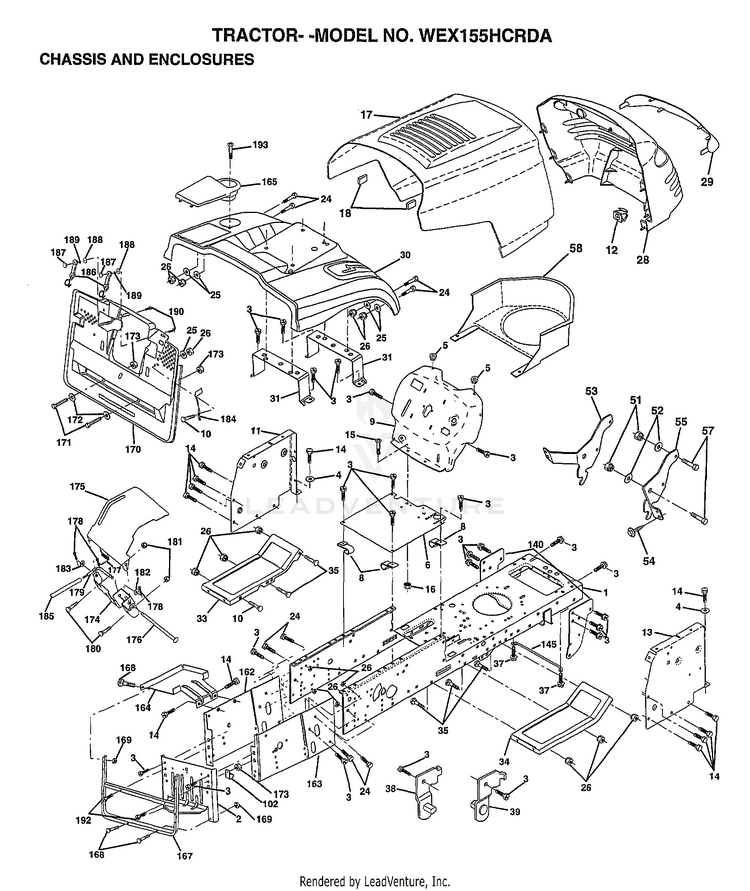

CHASSIS/ENCLOSURES

...
...
1
CHASSIS.STAMPING HUS-165480
...
2
DRAWBAR.CRD HUS-165606
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
BUMPER-HOOD/DASH HUS-155272
...
6
SADDLE HUS-155923
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
DASH.SILKSCREEN HUS-147631X011
...
10
SUB= 72110608 HUS-72140608
...
11
"PANEL-DASH,LH" HUS-155927
...
12
CLIP.TINNERMAN HUS-145660
...
13
SUB= 169117X010 HUS-155934X010
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD.STEEL.ASSY HUS-159639X550
...
18
SUB= 532126938 HUS-126938X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILLE-MS428 HUS-157373
...
29
LENS.GRILLE.PRIVATE LABEL HUS-140273X599
...
30
FENDER.CRD.GREEN HUS-165713X550
...
31
BRKT.SUPT.FENDER.CRD HUS-165156
...
33
FOOTREST.LH.LT/GT HUS-145244X550
...
34
FOOTREST.RH.LT/GT HUS-145243X550
...
35
BOLT HUS-72110606
...
37
SCREW LT HUS-17490508
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SCREW.HEX.WS.HD HUS-161464
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
AIR DUCT HUS-150127
...
102
CLIP T HUS-2751R
...
140
BRKT SUSPENSION HUS-158418
...
145
"ROD POVOT,CHASSIS" HUS-156524
...
148
SCREW HUS-17490620
...
162
BRKT.EXT.CHASSIS.LH.CRD HUS-165672
...
163
BRKT.EXT.CHASSIS.RH.CRD HUS-165673
...
164
SUPPORT.BATTERY.CRD HUS-165605
...
165
COVER.BATTERY.CRD.BLACK.LT HUS-165742X428
...
167
SUPT.ASM.BACKPLATE HUS-165779
...
168
BOLT-RD HD SQ NK HUS-72050412
...
169
SUB= 73900400 HUS-123976X
...
170
COVER.BACKPLATE.BLACK HUS-165607
...
171
BOLT.HEX.3/8-16X2-1/2 HUS-74520640
...
172
SUB= 19132012 HUS-19132016
...
173
NUT HUS-73510600
...
174
BRKT.SWITCH.FBI.CRD HUS-165939
...
175
GRUARD.DOOR.REAR.CRD HUS-166212
...
176
HINGE PIN HUS-128600
...
177
SPRING.COVER.LH HUS-132796
...
178
SUB= 76020312 HUS-76520312
...
179
ROD.PIVOT.FBI.CRD HUS-165942
...
180
SUB= 77394 HUS-74760516
...
181
SUB= 73690500 HUS-73680500
...
182
WASHER.385X.625 HUS-138200
...
183
WASHER HUS-19131316
...
184
BRKT.ACTUATOR.BAG.CRD HUS-166139
...
185
TUBE.LEVER.SWCH.FBI.CRD HUS-165940
...
186
LATCH ASSY.BAGGER HUS-160793
...
187
WELDNUT HUS-2029J
...
188
WASHER #10 HUS-19061216
...
189
LOCKWASHER HUS-10071000
...
190
SCREW HUS-71161010
...
192
SCREW LT HUS-17490624
...
193
SCREW LT HUS-17720410
...
xx
PLUG BUTTON T HUS-5479J
