Husqvarna WEX12TCRDA (1999 & Before) Tractor

Model: WEX12TCRDA (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

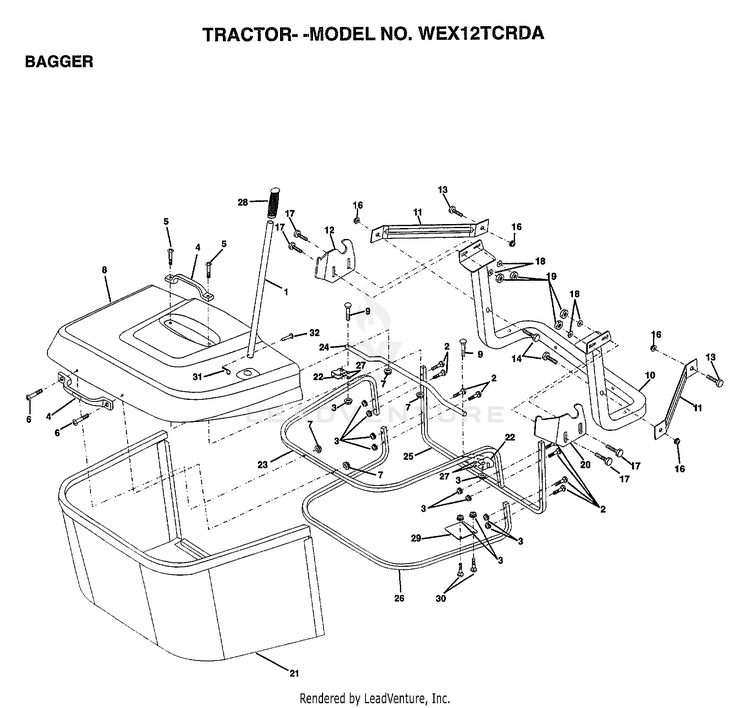

BAGGER

...
...
1
TUBE.HDLE.BAG.CRD HUS-165249
...
2
BOLT.CARRIAGE.1/4-20X2.0 HUS-72140416
...
3
SUB= 73900400 HUS-123976X
...
4
HANDLE.GRAB.BLACK. HUS-165693
...
5
"SCREW,PAN.HEAD" HUS-74981024
...
6
SCREW HUS-74981032
...
7
NUT LOCK HUS-59931
...
8
COVER.BAGGER.CRD HUS-165715X550
...
9
BOLT CARRIAGE HUS-72140418
...
10
SUPT.ASM.WLDMNT.BAG.CRD HUS-165716
...
11
BRKT.SUPT.UPPER.BAG.CRD HUS-165719
...
12
BRKT.PIVOT.BAG.LH.CRD HUS-165735
...
13
BOLT HUS-72110606
...
14
BOLT.HEX.3/8-16X2-1/2 HUS-74520640
...
16
SUB= 83923 HUS-73900600
...
17
BOLT HUS-72140506
...
18
WASHER HUS-19112016
...
19
NUT HUS-73800500
...
20
"BRKT.PIVOT.BAG,RH.CRD" HUS-165736
...
21
BAG.ASM.CRD HUS-165780
...
22
BRKT.SIDE.BAG.CRD HUS-165781
...
23
TUBE.UPPER.BAG.CRD HUS-165782
...
24
TUBE.PIVOT.BAG.CRD HUS-165783
...
25
TUBE.FT.BAG.CRD HUS-165784
...
26
TUBE.LOWER.BAG.CRD. HUS-165785
...
27
GROMMET.EXTRUDED HUS-165786
...
28
GRIP.HANDLE.BLACK HUS-165787
...
29
PLATE.STOP.BAG.HDLE.CRD HUS-165839
...
30
BOLT.CARRIAGE HUS-72140410
...
31
RETAINER M HUS-4497H
...
32
RIVET.DRILL.1.75 HUS-126875X
