Husqvarna WET2242STC (2003) Tractor

Model: WET2242STC (2003)

Back To Assemblies

Save Part Not Listed?
product name

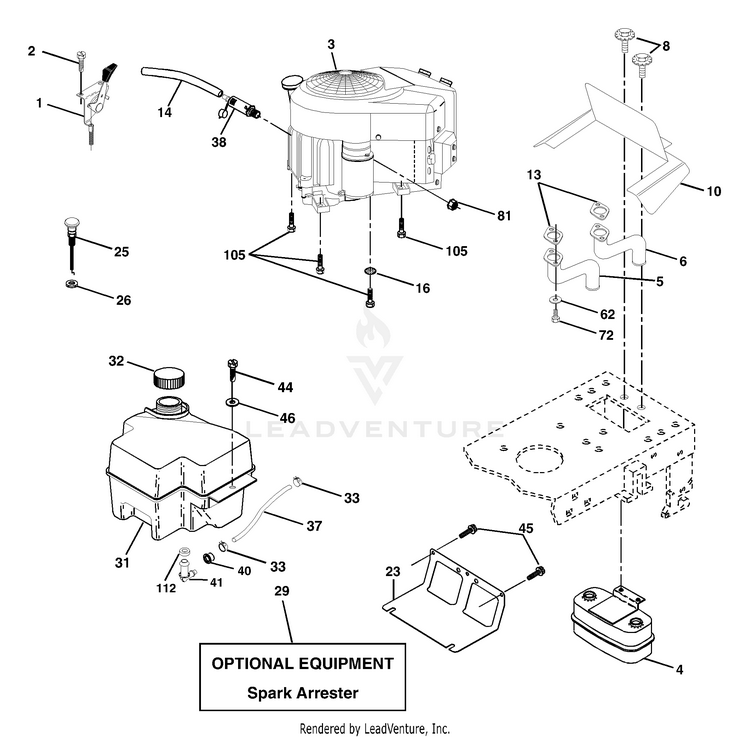

Engine

...
...
1
Control Throt /Ch Flag HUS-170803
...
2
Screw Hex Thd Cut 1/4-20x1/2 HUS-17720408
...
4
Muffler HUS-149723
...
5
Exhaust Tube LH HUS-174703
...
6
Exhaust Tube RH HUS-174704
...
8
Bolt 5/16-18unc x 3/4 HUS-171877
...
10
Shield Muffler HUS-175563
...
14
Tube Drain Oil Easy HUS-148456
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
23
Shield Browning/Debris Guard HUS-169837
...
25
Control Choke HUS-161729
...
26
Nut Keps 3/8-24 Unf HUS-73920600
...
29
Arrestor Spark HUS-137180
...
31
Tank Fuel HUS-180645
...
32
Cap Asm Fuel W/sym Vented HUS-140527
...
33
Clamp Hose Blk HUS-123487X
...
37
Line Fuel 20" HUS-137040
...
38
Plug Drain Oil Easy HUS-181654
...
40
Bushing Snap HUS-124028X
...
41
Stem Fuel Tank HUS-139277
...
44
Screw Hexwsh Thdrol 1/4-20x3/4 HUS-17670412
...
45
Screw Hex Wsh Thdrol 3/8-16 HUS-17000612
...
46
Washer 9/32 X 7/8 X 16ga HUS-19091416
...
62
Washer Lock 5/16 HUS-10040500
...
72
Screw Hex Hd Cap 5/16-18 x 3/4 HUS-71070512
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
...
105
Screw Thdrol 3/8-16x1-1 HUS-17120616
...
112
Bushing, Outlet HUS-3645J
