Husqvarna WET17H42STA (2003) Tractor

Model: WET17H42STA (2003)

Back To Assemblies

Save Part Not Listed?
product name

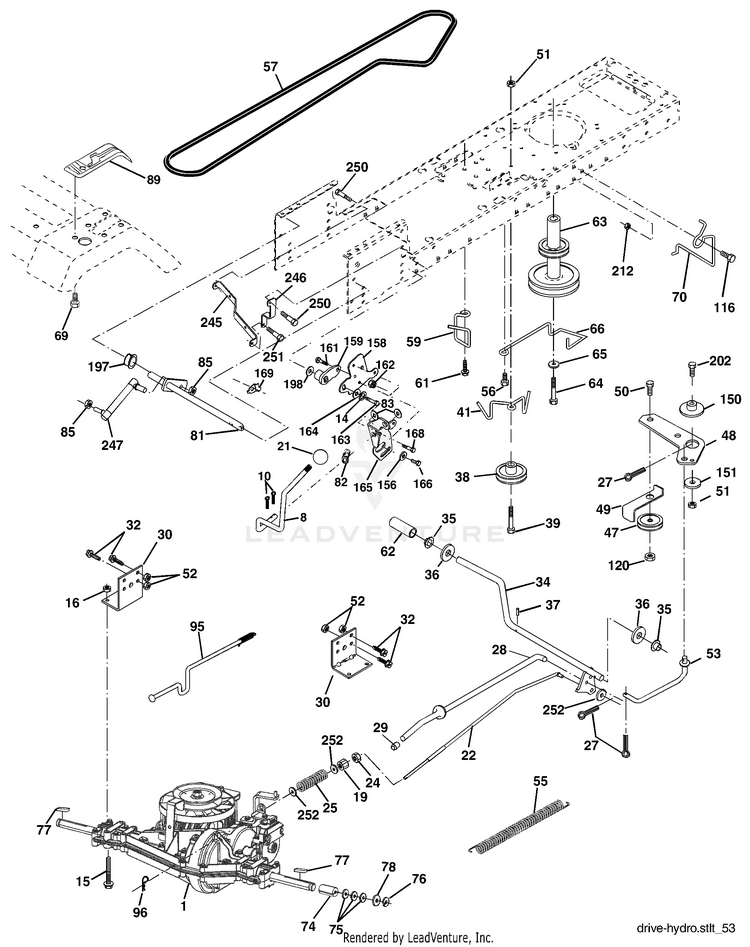

Drive

...
...
8
Rod Shift Fender Adjust HUS-165619
...
10
Pin Cotter 1/8 x 1 CAD HUS-STD561210
...
14
Washer Lock Hvy Helical HUS-10040400
...
15
Bolt Hex FLGHD 5/16-18 Gr.5 HUS-74490544
...
16
Nut Lock Hex W/Ins. 5/16-18 Unc HUS-STD541431
...
19
Nut Lock Hex W/Wsh 3/8-16 Unc HUS-STD541437
...
21
Knob 1/2-13 HUS-106933X
...
22
Rod, Brake HUS-178141
...
24
Nut, Hex Jam 3/8-16 Unc HUS-73350600
...
25
Spring, Brake Rod HUS-106888X
...
27
Pin Cotter 1/8 x 3/4 CAD. HUS-STD561210
...
28
Rod, Parking Brake HUS-175765
...
29
Cap, Parking Brake HUS-71673
...
30
Bracket, Transaxle HUS-174973
...
32
Bolt Hex Hd 5/16-18 Unc x 3/4 HUS-74760512
...
34
Shaft, Foot Pedal HUS-175578
...
35
Bearing, Nylon HUS-120183X
...
36
Washer HUS-19211616
...
37
Pin, Roll HUS-1572H
...
38
Pulley, Composite HUS-179114
...
39
Bolt Fin Hex 3/8-16 x 3 HUS-74760648
...
41
Keeper, Belt Idler HUS-175556
...
47
Pulley, Idler, V-Groove HUS-127783
...
48
Bellcrank, Clutch HUS-154407
...
49
Retainer, Belt HUS-123205X
...
50
Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5 HUS-72110612
...
51
Nut Crownlock 3/8-16 Unc HUS-STD541437
...
52
Nut, Crownlock 5/16-18 Unc HUS-STD541431
...
53
Link, Clutch HUS-105710X
...
55
Spring, Return, Clutch HUS-105709X
...
56
Screw 3/8-16 x 1-1/4 HUS-17060620
...
57
V-Belt HUS-178138
...
59
Keeper, Center Span HUS-169691
...
61
Screw 3/8-16 x .875 HUS-17120614
...
62
Cover, Pedal HUS-8883R
...
63
Pulley, Engine HUS-175410
...
64
Bolt Hex 7/16-20 x 4 Gr. 5 HUS-173937
...
65
Washer HUS-STD551143
...
66
Keeper Belt Engine Hydro HUS-154778
...
69
Screw Hex Wsh Hi-Lo 1/4-1/2 Unc HUS-142432
...
70
Keeper Belt Engine HUS-134683
...
74
Spacer HUS-137057
...
75
Washer 25/32 x 1-1/4 x 16 Ga. HUS-121749X
...
76
E-Ring HUS-STD581075
...
77
Key, Square HUS-123583X
...
78
Washer 25/32 x 1-5/8 x 16 Ga. HUS-121748X
...
81
Shaft Asm Cross Tapered HUS-178140
...
82
Spring Torsion HUS-123782X
...
83
Washer 17/32 x 3/4 x 16 Ga. HUS-19171216
...
85
Nut Lock Center 1/4-28 FNTHD HUS-150360
...
89
Console, Shift HUS-169373X428
...
95
Disconnect Asm Rod Bypas LTH HUS-178134
...
96
Retainer Spring 1" Zinc/Cad HUS-4497H
...
116
Bolt Rdhd Sqneck 3/8-16 x 1 HUS-72140608
...
120
Nut Lock Flg 3/8-16 HUS-73900600
...
150
Spacer Retainer HUS-175456
...
151
Washer 13/32 x 2 x 10 Ga. HUS-19133210
...
156
Washer Srrted 5/16 ID x 1.125 HUS-166002
...
158
Bracket Shift Mount HUS-165589
...
159
Hub Shift HUS-183900
...
161
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5 HUS-72140406
...
162
Nut Crownlock 1/4-20 Unc HUS-73680400
...
163
Bolt Hex Fin 1/4-20 Unc x 1 Gr 5 HUS-74780416
...
164
Washer 5/8 x .281 x 10 Ga HUS-19091010
...
165
Bracket Pivot Lever HUS-165623
...
166
Screw 5/16-18 x 5/8 HUS-166880
...
168
Bolt Shoulder 5/16-18 x .561 HUS-165492
...
169
Plate Fastening HUS-165580
...
197
Nyliner Snap-In 5/8" ID HUS-169613
...
198
Washer Nyl 7/8 ID x .105" Hyd HUS-169593
...
202
Bolt Carr Sh 3/8-16 x 1-3/4 Gr.5 HUS-72110614
...
212
Nut Hex Flange Lock HUS-145212
...
245
Strap Torque Lh LTH2000 HUS-178122
...
246
Strap Torque Rh LTH2000 HUS-178121
...
247
Link Shift Transaxle LTH2000 HUS-181463
...
250
Screw 3/8-16 x 3/4 HUS-17060612
...
251
Screw 5/16-18 x 1 HUS-17060516
...
252
Washer 13/32 x 1 x 16 Ga. HUS-19131616
