Husqvarna WET1742B (1997) Tractor

Model: WET1742B (1997)

Back To Assemblies

Save Part Not Listed?
product name

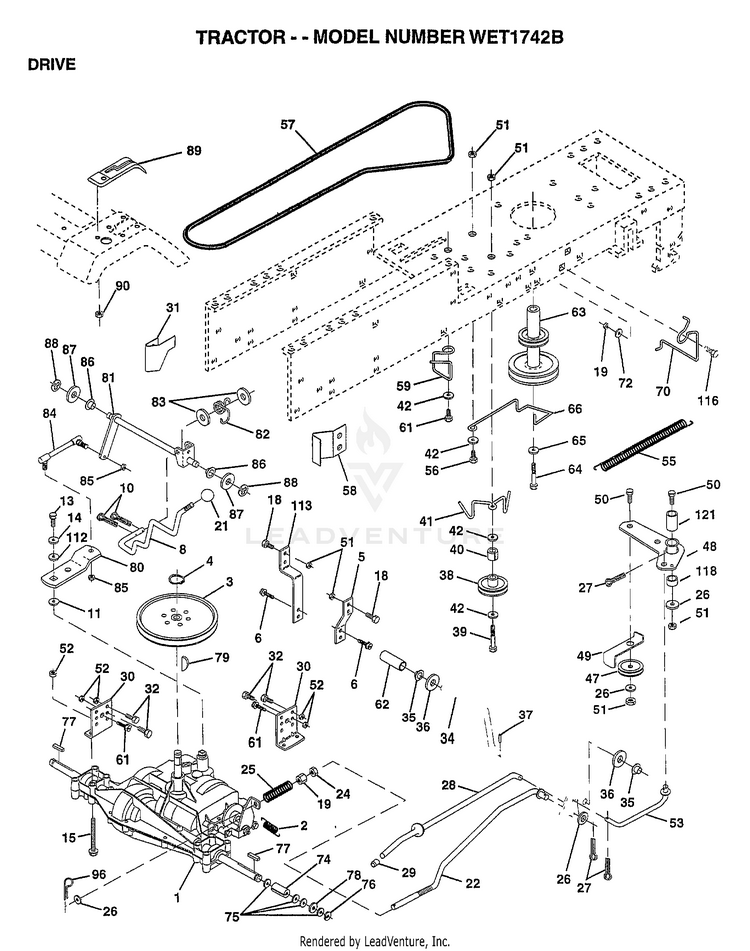

DRIVE

...
...
1
TRANSAXLE PEERLESS HUS-930-550A
...
2
SPRING.BRAKE.RETU HUS-146682
...
3
PULLEY TRANS HUS-123666X
...
4
SUB= 2267J HUS-12000028
...
5
SPRING HUS-121250X
...
6
SCREW HUS-17490512
...
8
ROD SHIFT FEND LT HUS-141003
...
10
PIN COTTER 1/8 HUS-76020416
...
11
WASH-SHFT PLT LT HUS-105701X
...
13
BOLT.1/4-28.W/PAT HUS-74550412
...
14
LOCKWASHER HUS-10040400
...
15
BOLT.HX.FLG.5/16 HUS-74490544
...
18
BOLT HUS-74780616
...
19
NUT HUS-73800600
...
21
KNOB T (1/2-HOLE) HUS-106933X
...
22
BRAKE ROD HUS-130804
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
ROD.BRAKE.PARK.LT HUS-145204
...
29
PLUNGER CAP T HUS-71673
...
30
TRANSAXLE MTG BKT HUS-130807
...
31
"KEEPER,BELT LH T" HUS-127275X
...
32
BOLT HUS-74760512
...
34
SHAFT ASM-PEDAL F HUS-155071
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
PULLEY.IDLER.FLAT HUS-123674X
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
SUB= 165692 HUS-154777
...
42
WASHER HUS-19131312
...
47
SUB= 139245 HUS-127783
...
48
BELLCRANK ASM HUS-154604
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
NUT HUS-73800500
...
53
"LINK, CLUTCH T" HUS-105710X
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
57
SUB= 138255 HUS-130801
...
58
"KEEPER,BELT RH T" HUS-127274X
...
59
KEEPER BELT CNTSP HUS-140312
...
61
SCREW HUS-17490612
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY.ENGINE HUS-140186
...
64
BOLT HUS-71170764
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER-BELT HUS-154778
...
70
KEEPER BELT ENG HUS-134683
...
72
WASHER HUS-19132012
...
74
SPACER AXLE HUS-137057
...
75
WASHER HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
...
79
SUB= 2228M1 HUS-2228M
...
80
"ARM.SHIFT.20""TIRE" HUS-145090
...
81
SHAFT.CROS.P930. HUS-156049
...
82
"SPRING,TORSION" HUS-123782X
...
83
WASHER HUS-19171216
...
84
"ROD.TIE.20""P930LT" HUS-145643
...
85
NUT.CNT.LOCK.1/4 HUS-150360
...
86
BUSHING HUS-71208
...
87
WASHER D HUS-19212016
...
88
KLIP RING HUS-12000008
...
89
SUB= 918139964 HUS-139964
...
90
NUT HUS-124346X
...
96
RETAINER M HUS-4497H
...
112
WASHER LT HUS-19091210
...
113
"STRAP,TORQUE" HUS-127285X
...
116
BOLT RDHD 3/8-16 HUS-72110610
...
118
SPACER-BELLCRANK HUS-154774
...
121
NYLINER-CLUTCHING HUS-154419
