Husqvarna WER350E (1998) Tiller

Model: WER350E (1998)

Back To Assemblies

Save Part Not Listed?
product name

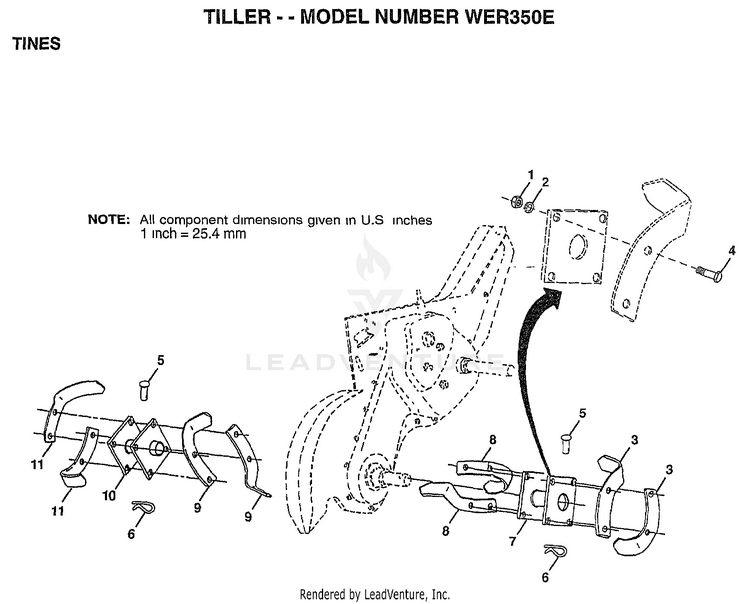

TINES

...
...
1
SUB= 7810H HUS-73610600
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
SUB= 6555J HUS-4460J
...
4
BOLT HUS-74610616
...
5
PIN.CLEVIS.SHEAR HUS-132673
...
6
RETAINER.SPRING HUS-3146R
...
7
ASM HUB&PLATE RH HUS-132722
...
8
"TINE.RH.12""" HUS-6555J
...
9
"TINE.LH.12""" HUS-6554J
...
10
ASM HUB&PLATE LH HUS-132721
...
11
SUB= 6554J HUS-4459J
