Husqvarna WER350D (1997) Tiller

Model: WER350D (1997)

Back To Assemblies

Save Part Not Listed?
product name

TINES

...
...
1
Nut, Hex 3/8-24 HUS-73610600
...
2
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
3
Tine, Outer, R.H. HUS-4460J
...
4
Bolt, Hex 3/8-24 x 1 HUS-74610616
...
5
Pin, Shear HUS-132673
...
6
Clip, Hairpin HUS-3146R
...
7
Assembly, Hub and Plate, R.H. HUS-132722
...
8
Tine, Inner, R.H. HUS-6555J
...
9
Tine, Inner, L.H. HUS-6554J
...
10
Assembly, Hub and Plate, L.H. HUS-132721
...
11
Tine, Outer, L.H. HUS-4459J

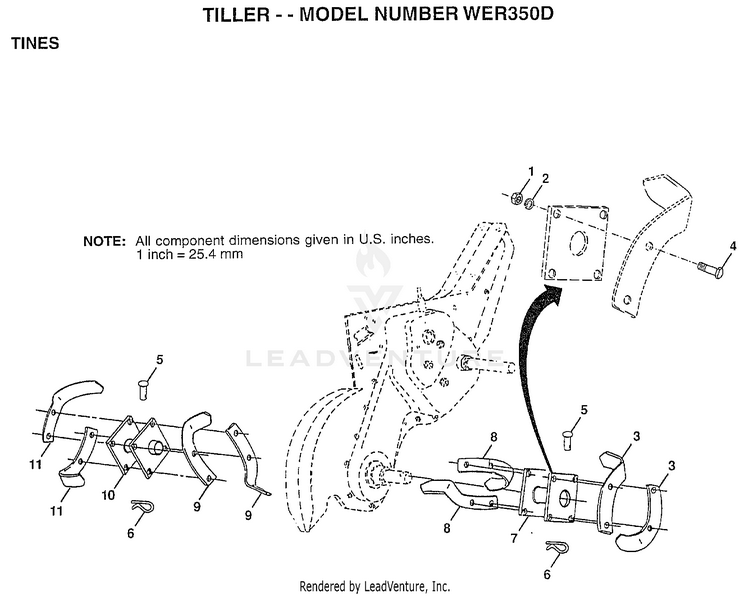

Schematic Image Zoomed
