Husqvarna WEG1842A (1994) Tractor

Model: WEG1842A (1994)

Back To Assemblies

Save Part Not Listed?
product name

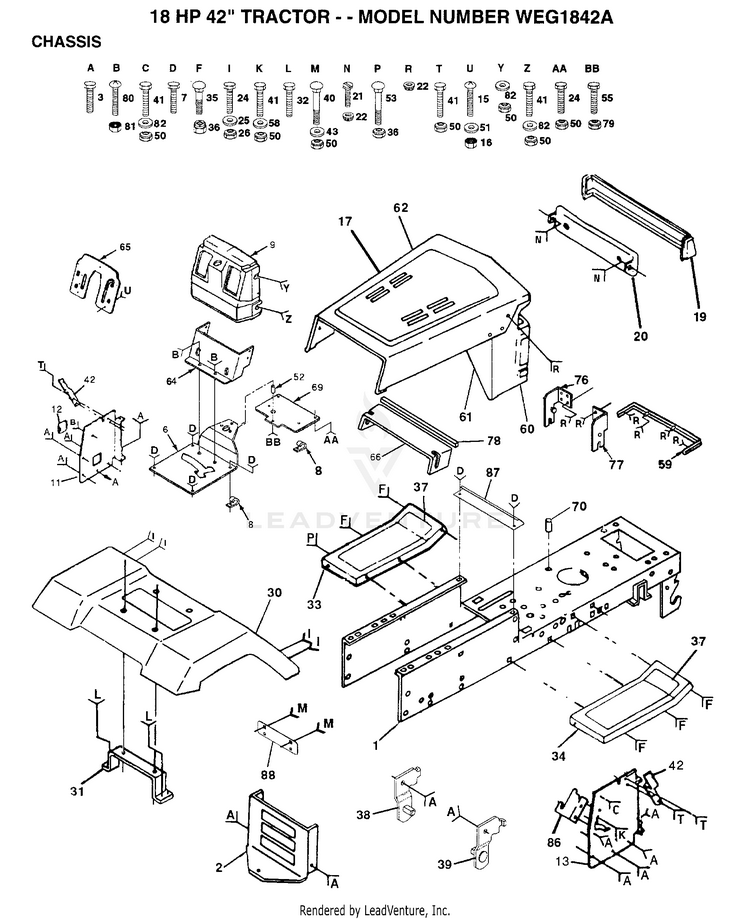

CHASSIS

...
...
1
SUB= 145501 HUS-140341
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
6
SUB= 127543X011 HUS-127543
...
7
SCREW HUS-17490612
...
8
CLIP T HUS-2751R
...
9
SUB= 145203 HUS-136696
...
11
PANEL.DASH.LH HUS-136967
...
12
COVER ACCESS HUS-121794X
...
13
PANEL DASH RH NOT HUS-136952
...
15
SCREW HUS-74180412
...
16
NUT HUS-73510400
...
17
HOOD HUS-123801X419
...
19
LENS T HUS-110898X
...
20
SUB= 918132257 HUS-132257
...
21
SCREW SPECIAL HUS-124201X
...
22
PAL NUT LT HUS-108067X
...
24
BOLT HUS-74760616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
30
FENDER.PNT.LT HUS-140001X419
...
31
BRACKET SUPT FEND HUS-139976
...
32
SCREW HUS-17490612
...
33
SUB= 145244X419 HUS-105465X419
...
34
FOOTREST RH HUS-105464X419
...
35
BOLT HUS-72110606
...
36
NUT HUS-73800600
...
37
"PAD,FOOTREST" HUS-131864
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
40
BOLT D HUS-72110608
...
41
SUB= 72110608 HUS-72140608
...
42
BRACKET.ASM.SUPT. HUS-139915
...
43
WASHER HUS-19171416
...
50
NUT HUS-73800600
...
51
WASHER PM HUS-19091216
...
52
SPACER HUS-121236X
...
53
SUB= 72110608 HUS-72140608
...
55
BOLT HUS-74760532
...
58
LOCKWASHER HUS-11050600
...
59
"STRAP,GRILL" HUS-110350X419
...
60
GRILLE ASM WELD HUS-140671
...
61
ASSY RH PANEL HUS-123674X419
...
62
SIDE PANEL LH HUS-123765X419
...
64
DASH LOWER HUS-143118
...
65
PLATE DASH SILKSC HUS-140942X011
...
66
"BAFFLE,HOOD" HUS-124046X
...
69
PLATE.SUPT.BATTER HUS-140181
...
70
SUB= 9151R HUS-110436X
...
76
BRACKET.RH HUS-137467
...
77
BRACKET.LH HUS-137466
...
78
FOAM STRIP T HUS-109458X
...
79
NUT HUS-73800500
...
80
SCREW HUS-74180512
...
81
NUT HUS-73510500
...
82
WASHER HUS-19131614
...
86
BRACKET LT HUS-110923X
...
87
SPACER FENDER LT HUS-139977
...
88
PLATE EXTEN FEND HUS-139978
