Husqvarna WEG14PL42A (1994) Tractor

Model: WEG14PL42A (1994)

Back To Assemblies

Save Part Not Listed?
product name

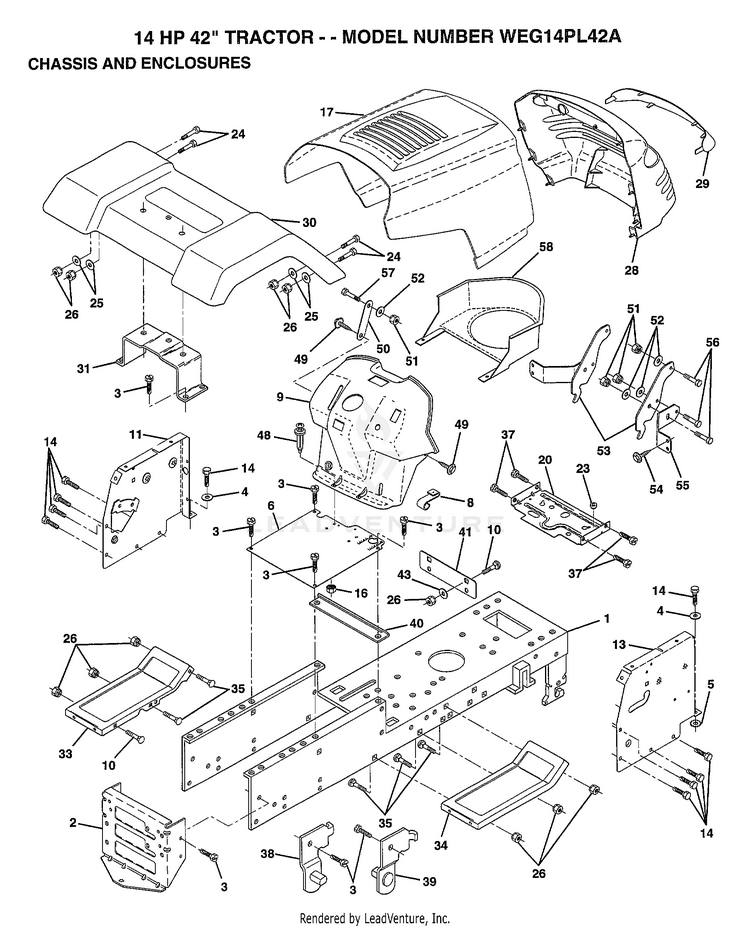

14HP 42" TRACTOR-CHASSIS/ENCLOSURES

...
...
1
SUB= 145501 HUS-140341
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
LOCKWASHER HUS-11050600
...
6
SUB= 145206X431 HUS-140169
...
8
"CLIP,INSULATOR" HUS-126471X
...
9
SUB= 532142465 HUS-140072
...
10
SUB= 72110608 HUS-72140608
...
11
SUB= 146965 HUS-140815
...
13
SUB= 146959 HUS-140178
...
14
SCREW LT HUS-17490608
...
16
NUT HUS-73510400
...
17
SUB= 159639X550 HUS-139394X550
...
20
SUB= 140281X431 HUS-140281
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
SUB= 157373 HUS-140141
...
29
LENS GRILLE HUS-140273
...
30
FENDER PNT HUS-140001X550
...
31
BRACKET SUPT FEND HUS-139976
...
33
SUB= 145244X550 HUS-105465X550
...
34
SUB= 145243X550 HUS-105464X550
...
35
BOLT HUS-72110606
...
37
SCREW HUS-17490512
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
40
SPACER FENDER LT HUS-139977
...
41
PLATE EXTEN FEND HUS-139978
...
43
WASHER HUS-19171416
...
48
RIVET.PUSH.PLATE HUS-138096
...
49
SCREW HEX CRT HUS-17490412
...
50
BRACE SUPT DASH HUS-142779
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
HING PICK-OFF HD HUS-140219
...
54
SUB= 91817030814 HUS-17030814
...
55
BRACKET GRILLE HUS-143007
...
56
BOLT LT HUS-74760412
...
57
SUB= 74780414 HUS-74780412
...
58
DUCT AIR 12-15H HUS-140806
...
xx
PLUG BUTTON T HUS-5479J
...
xx
PLUG DOME HUS-134014
