Husqvarna WEF550E (1996) Tiller

Model: WEF550E (1996)

Back To Assemblies

Save Part Not Listed?
product name

HANDLE

...
...
1
BRACKET.HDLE.TILL HUS-131268X550
...
2
BOLT HUS-72140512
...
3
SUB= 624A78 HUS-9266R
...
4
SUB= 73690500 HUS-73680500
...
6
WASHER HUS-19111116
...
7
WASHER HUS-19121414
...
8
SUB= 77394 HUS-74760516
...
9
BOLT HUS-74760512
...
10
LOCKWASHER HUS-10040500
...
11
NUT.HEX.5/16-18 HUS-73220500
...
12
NUT HUS-98000129
...
13
BOLT HUS-72140506
...
14
PANEL.HANDLE.PNT. HUS-674A150550
...
16
SUB= 153139 HUS-151472
...
17
KNOB T(3/8 HOLE) HUS-106932X
...
18
CABLE CLUTCH T HUS-3066J
...
19
CONTROL LEVER TI HUS-2635J
...
20
SCREW HUS-23200405
...
21
E-RING HUS-12000027
...
22
ROD REVERSE TI HUS-101248K
...
23
RIVET.RD.HD.DRILL HUS-1778E
...
24
REVERSE ROD TI HUS-2613J
...
25
WASHER HUS-19131316
...
26
COTTER PIN HUS-76020412
...
27
SUB= 3145 HUS-76020308
...
28
WASHER HUS-19131312

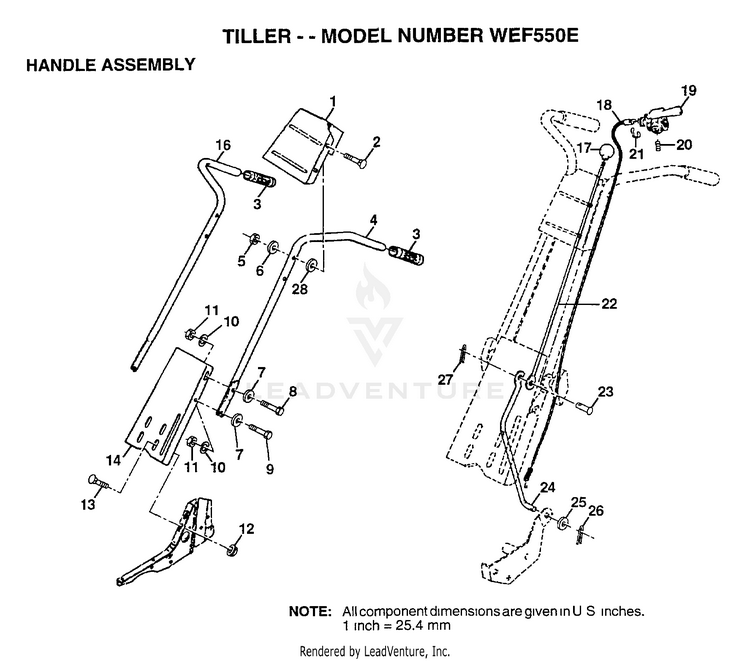

Schematic Image Zoomed
