Husqvarna WEF550E (1996) Tiller

Model: WEF550E (1996)

Back To Assemblies

Save Part Not Listed?
product name

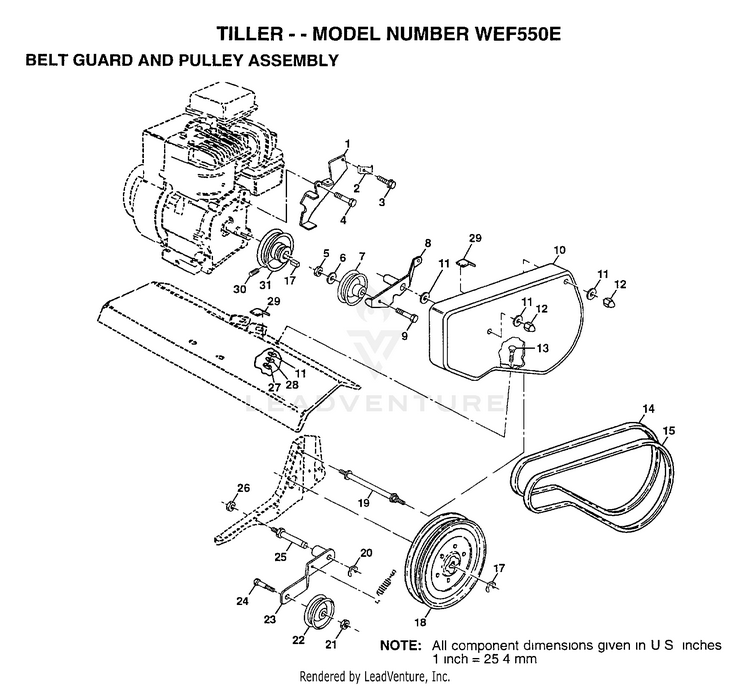

BELT GUARD AND PULLEY

...
...
1
SUB= 159268 HUS-123643X
...
2
CONDIUT CLIP T HUS-9484R
...
3
SUB= 750097 HUS-86777
...
4
SCREW HUS-74770812
...
5
NUT.HEX.3/8-16UNC HUS-73220600
...
6
WASHER HUS-19131316
...
7
PULLEY W/SPACER HUS-2009J
...
8
ARM.ASM.REV.IDLER HUS-127180X
...
9
BOLT HUS-74760628
...
10
GUARD BELT HUS-106970X550
...
11
WASHER HUS-19091016
...
12
NUT-CAP TI HUS-104213X
...
13
BOLT T HUS-72140405
...
14
BELT-V HUS-133035
...
15
SUB= TH3H440 HUS-2614J
...
16
SET SCREW HUS-23230506
...
17
KEY T HUS-2649M
...
18
SHEAVE TI HUS-2607J
...
19
BOLT TI HUS-110550X
...
20
KLIP RING TI HUS-12000036
...
21
NUT HUS-73350600
...
22
SUB= 75673 HUS-9178R
...
23
IDLER ARM TI HUS-674A30
...
24
Bolt Fin Flex 3/8-16unc X 1-1/4 HUS-74760620
...
25
SHAFT IDLER TI HUS-106968X
...
26
JAM NUT TI HUS-73350500
...
27
SUB= 50675 HUS-73220400
...
28
LOCKWASHER HUS-10040400
...
29
PAD IDLER TI HUS-109227X
...
30
SET SCREW HUS-23200404
...
31
ENGINE PULLEY TI HUS-101189L
