Husqvarna WEF350B (1996) Tiller

Model: WEF350B (1996)

Back To Assemblies

Save Part Not Listed?
product name

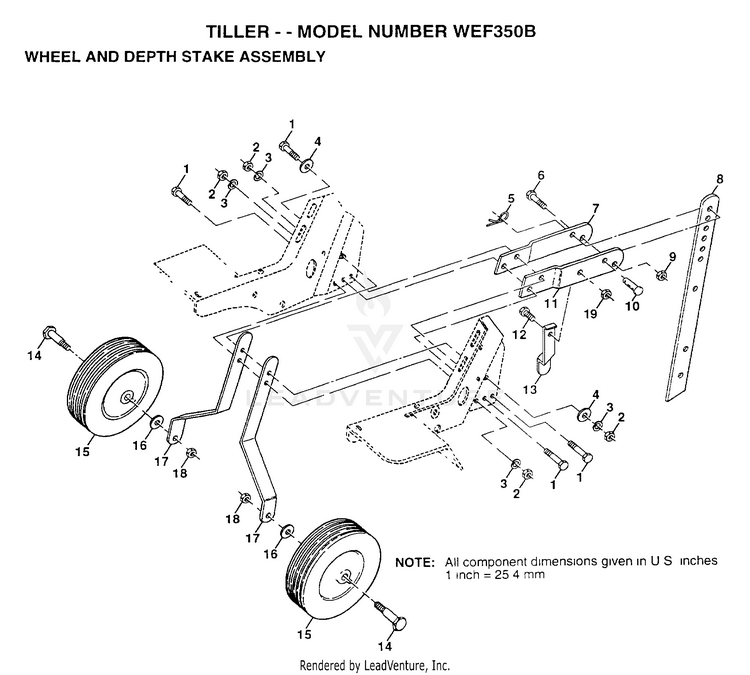

WHEEL AND DEPTH STAKE

...
...
1
BOLT HUS-74760520
...
2
NUT.HEX.5/16-18 HUS-73220500
...
3
LOCKWASHER HUS-10040500
...
4
WASHER HUS-19121414
...
5
SPRING.RETAINER HUS-4921H
...
6
BOLT HUS-74780628
...
7
STAKE.SUPT.TILLER HUS-318J
...
8
SUB= 9193R500 HUS-9193R
...
9
NUT HUS-73800600
...
10
DRILLED RIVET RT HUS-9551R
...
11
SUB= 317J500 HUS-317J
...
12
BOLT HUS-74760512
...
13
STAKE SPRING CT HUS-325J
...
14
BOLT SHOULDER HUS-121117X
...
15
WHEEL HUS-149155
...
16
WASHER HUS-19131311
...
17
SUB= 674H4 HUS-9189R
...
18
SUB= 73690600 HUS-73680600
...
19
NUT HUS-73800500
