Husqvarna WEA13H38A (1999 & Before) Tractor

Model: WEA13H38A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

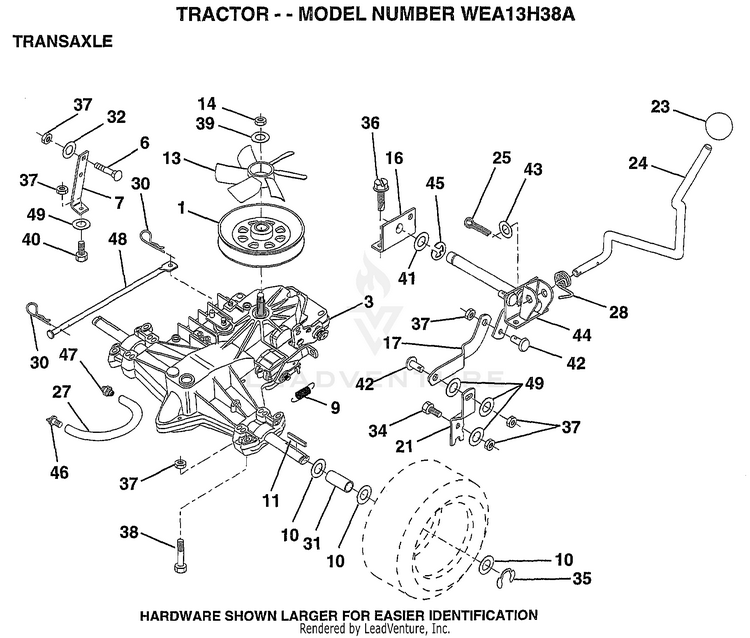

TRANSAXLE

...
...
1
PULLEY.V-GROOVE HUS-140779
...
2
TRANSAXLE HYD 0319-0500 HUS-140607
...
6
BOLT HUS-72140506
...
7
STRAP.TORQUE.HYD HUS-140774
...
9
SPRING.BRAKE.RETU HUS-146682
...
11
SQUARE KEY HUS-123583X
...
13
FAN.HYDRO.6FANS HUS-140778
...
14
"LOCKNUT,1/2-20UNF" HUS-73750800
...
16
SUPPORT.HDLE.SHFT HUS-140763
...
17
LINK.SHIFT.HYD.LR HUS-140767
...
21
LEVER.SHIFT.TRANS HUS-140773
...
23
KNOB T (1/2-HOLE) HUS-106933X
...
24
ROD.SHIFTER.HYD. HUS-140765
...
25
PIN COTTER 1/8 HUS-76020416
...
27
"LINE FUEL HYD 4""" HUS-142564
...
28
SPRING.TORSION.LR HUS-140772
...
30
RETAINER M HUS-4497H
...
31
SPACER SPLIT HUS-121199X
...
32
WASHER HUS-19111116
...
34
SUB= 77394 HUS-74760516
...
35
E-RING LT HUS-12000001
...
36
SCREW HUS-17720408
...
37
NUT HUS-73800500
...
38
BOLT.HEX.FLGHD HUS-74490540
...
39
WASHER HUS-19171912
...
40
BOLT.HEX.5/16-1.5 HUS-74760524
...
41
WASHER HUS-19212013
...
42
PIN.PIVOT.SHIFT. HUS-140769
...
43
WASHER HUS-19171216
...
44
SHAFT.PIVOT.LR. HUS-156047
...
45
SUB= 2225J HUS-12000002
...
48
ACTUATOR.BYPASS HUS-140912
...
49
WASHER M HUS-19111216
