Husqvarna WEA1136A (1999 & Before) Tractor

Model: WEA1136A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

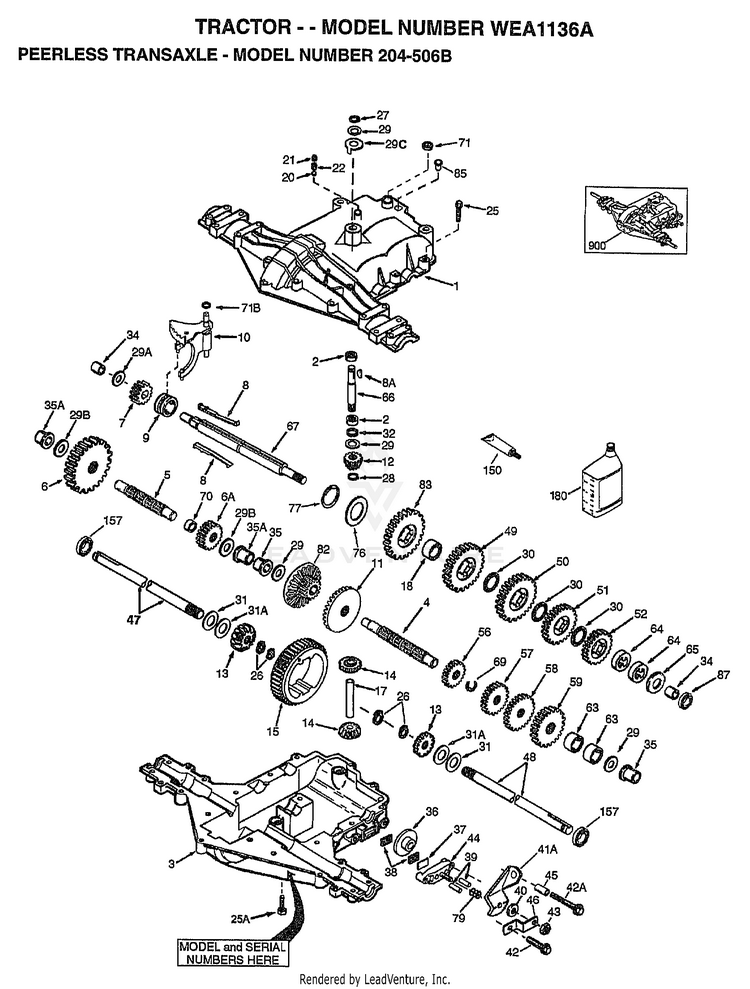

PEERLESS TRANSAXLE

...
...
1
TRANSAXLE COVER HUS-772147
...
2
NEEDLE BEARING 5/8" ID HUS-780086A
...
3
TRANSAXLE CASE HUS-770128
...
4
COUNTERSHAFT HUS-776395
...
5
OUTPUT SHAFT HUS-776409
...
6
SPUR GEAR (38 TEETH) HUS-778364
...
6A
SPUR GEAR (15 TEETH) HUS-778369
...
7
SPUR GEAR (11 TEETH) HUS-778330
...
8
SHIFT KEY HUS-792180
...
8A
KEY, WOODRUFF HUS-792047
...
9
COLLAR, SHIFTER HUS-784352
...
10
SHIFT ROD & FORK HUS-784378
...
11
BEVEL GEAR (30 TEETH) HUS-778334
...
12
INPUT BEVEL PINION (13TEETH) HUS-778309
...
13
BEVEL GEAR (13 TEETH) HUS-778368
...
14
BEVEL PINION (13 TEETH) HUS-778367
...
15
RING GEAR (43 TEETH) HUS-778370
...
17
DRIVE PIN HUS-786188
...
18
SPACER, NEUTRAL HUS-786102
...
20
BALL STEEL, 5/16" DIA. HUS-792077
...
21
SCREW, 3/8-16 X 3/8" HUS-792078
...
22
SPRING HUS-792079
...
25
SCREW HUS-792073A
...
25A
SCREW 1/4-20 X 1-3/8" HUS-792177
...
26
RING RETAINER HUS-792125
...
27
RING, RETAINER HUS-792035
...
28
RETAINING RING HUS-788040
...
29
WASHER THRUST HUS-780072
...
29A
WASHER HUS-780160
...
29B
WASHER THRUST HUS-780051
...
29C
P/N CONFLICT - CHECK WITH SUPPLIER HUS-780199
...
30
WASHER THRUST HUS-780108
...
31
WASHER HUS-780001
...
31A
FLAT WASHER HUS-780195
...
32
OIL SEAL 5/8" HUS-788083
...
34
BUSHING 9/16" HUS-780194
...
35
FLANGED BUSHING 5/8" ID HUS-780193
...
35A
FLANGED BUSHING 3/4" HUS-780197
...
36
BRAKE DISC HUS-790075
...
37
PLATE BRAKE PAD HUS-790007
...
38
BRAKE PAD HUS-799021
...
39
PIN DOWEL HUS-786026
...
40
WASHER HUS-792076A
...
41A
BRAKE LEVER HUS-790079
...
42
SCREW HUS-792073A
...
42A
SCREW, 1/4-20 X 2-1/4 HUS-792085A
...
43
LOCKNUT 5/16-24 HUS-792075
...
44
HOLDER BRAKE PAD HUS-790025
...
45
SPACER HUS-786066
...
46
BRKT BRAKE LEVER HUS-786086
...
47
AXLE HUS-774690
...
48
AXLE HUS-774691
...
49
SPUR GEAR (29 TEETH) HUS-778356
...
50
SPUR GEAR (23 TEETH) HUS-778354
...
51
SPUR GEAR (19 TEETH) HUS-778352
...
52
SPUR GEAR (15 TEETH) HUS-778346
...
56
SPUR GEAR (11 TEETH) HUS-778355
...
57
SPUR GEAR (17 TEETH) HUS-778353
...
58
SPUR GEAR (21 TEETH) HUS-778351
...
59
SPUR GEAR (25 TEETH) HUS-778345
...
63
SPACER HUS-786071
...
64
SPACER HUS-786072
...
65
WASHER HUS-780189
...
66
INPUT SHAFT HUS-776422
...
67
SHIFTER & BRAKE SHAFT HUS-776396
...
69
RETAINING RING HUS-792170
...
70
SPACER .890 HUS-786187
...
71
SEAL SQUARE CUT HUS-788069
...
71B
"O" RING HUS-788092
...
76
WASHER, THRUST HUS-780090
...
77
INVERTED RETAINING RING HUS-788078A
...
79
SPRING HUS-792144
...
82
BEVEL & SPUR GEAR (30 & 13 TEETH) HUS-778333
...
83
SPUR GEAR (27 TEETH) HUS-778338
...
85
OIL FILL PLUG HUS-792154
...
87
OIL SEAL 9/16" HUS-788089
...
150
LIQUID GASKET RTV SILICONE HUS-788093A
...
157
OIL SEAL 3/4" HUS-788088
...
180
GEAR OIL 80W90 HUS-730229A
