Husqvarna WE261 - 96022001100 (2010-06) Riding Tractor

Model: WE261 - 96022001100 (2010-06)

Back To Assemblies

Save Part Not Listed?
product name

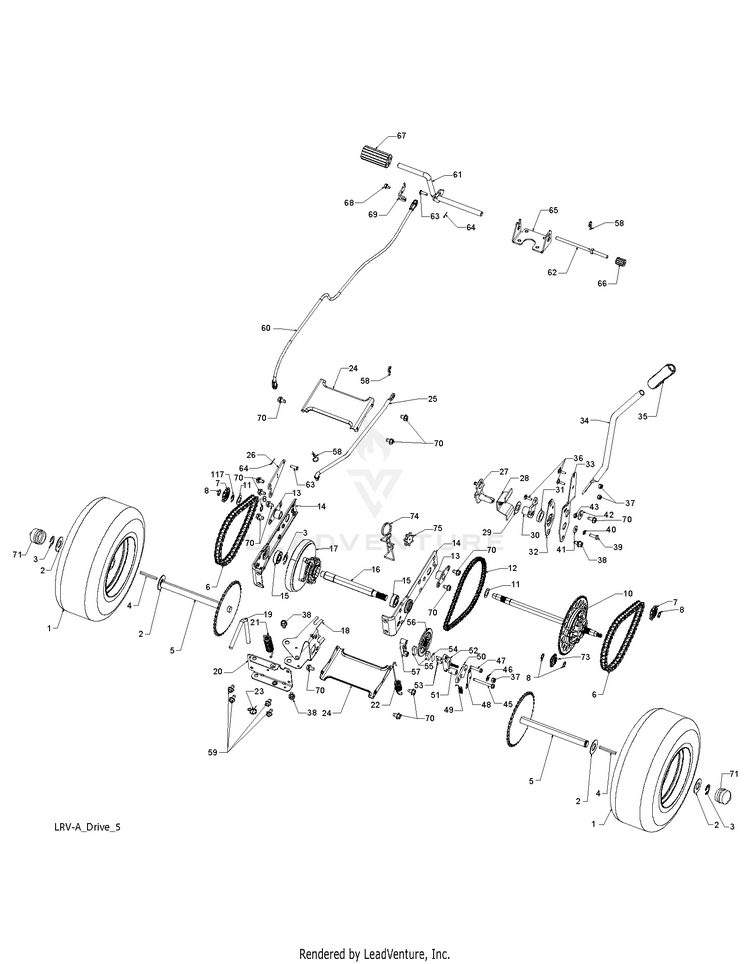

DRIVE

...
...
59
Screws HUS-596030701
...
31
SPACER.NYLON. HUS-532429055
...
75
SPROCKET.IDLER.7TOOTH.LRV HUS-532433495
...
17
TRANSAXLE.KIT.SERVICE HUS-532436144
...
47
SCREW YTV HUS-583608401
...
34
TUBE SHIFT ARM HUS-532428462
...
23
SPRING, BYPASS HUS-532431374
...
73
SPROCKET.11 TOOTH.SPLINED HUS-532429519
...
70
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
25
VALVE.COVER.LCT.414CC. HUS-532429303
...
49
SPRING, BRAKE RETURN HUS-532430245
...
48
PLATE.ANTI-ROTATION.BRAKE HUS-532430249
...
5
WELDMENT.AXLE.DRIVEN HUS-532427939
...
64
COTTER PIN HUS-876020208
...
13
BUSHING.FLANGE.5/8 HUS-532430845
...
46
Washers HUS-596582301
...
52
CALIPER.BRAKE.ASM HUS-532428078
...
74
TENSION.LRV.CHAIN HUS-532437841
...
63
PIN.CLEVIS HUS-877100812
...
22
SPRING, BRAKE HUS-532428076
...
67
COVER.PEDAL.BRAKE.LRV HUS-532429693
...
4
SQUARE KEY HUS-532123583
...
7
SPROCKET.9.TOOTH.SPLINED HUS-532427873
...
53
PIN.DOWEL HUS-877010810
...
42
Washers HUS-596218801
...
26
ARM. CLUTCH.LRV HUS-532429816
...
27
WELDMENT SHIFT LEVER HUS-532429053
...
69
BRAKE.MOUNT.CABLE.LRV HUS-532428070
...
43
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
36
BOLT.CARRIAGE.1/4-20X3/4 HUS-582735501
...
62
ROD.BRAKE.PARK.LRV HUS-532429678
...
16
SHAFT.INPUT.LRV HUS-532427926
...
45
SCREW.HXWH.THDRL.1/4-20X2.25 HUS-817490436
...
55
PUCK BRAKE HUS-532428017
...
28
RP SUPPORT, SHIFT LEVER HUS-532428302
...
18
ARM, SHIFT HUS-532424759
...
68
Screws HUS-596437001
...
65
BRACKET.SUPPORT.BRAKE.LRV HUS-532429325
...
15
BEARING.BALL 9159R HUS-532124793
...
37
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
2
WASHER HUS-532121748
...
1
WHEEL ASSY REAR.LRVA.13" GRAY REAR HUS-581420701
...
6
CHAIN.DRIVE HUS-532428069
...
32
MNTG BRKT. SHIFT ARM HUS-532428464
...
33
BRACKET, SHIFTER FLEX HUS-532428461
...
51
SPACER.RETURN.BRAKE.LRV HUS-532430247
...
10
DIFFERENTIAL ASM LRV HUS-532428876
...
38
BOLT.SHOULDER.5/16-18X HUS-532165492
...
8
SNAP RING HUS-812100009
...
24
BRACE CARRIER BOX HUS-532427995
...
57
CAP, BRAKE CALIPER HUS-532428016
...
3
E-RING LT HUS-812000001
...
35
GRIP.HANDLE.LIFT.PVC.BLACK HUS-532411555
...
19
ROD.BYPASS.LRV HUS-532430870
...
50
ARM.BRAKE HUS-532428021
...
14
SERVICE1KIT BRACKET BRACKET.CA HUS-531151401
...
40
WASHER SPRING LOCK WASHER WITH HUS-596029801
...
12
CHAIN, PRIMARY DRIVE HUS-532430645
...
54
PLATE, BRAKE PAD HUS-532428019
...
21
SPRING, CARRIER HUS-532428077
...
71
CAP.HUB.AXLE.LRVA/B HUS-532436499
...
117
KLIP RING HUS-812000040
...
58
RETAINER M 4497H HUS-532004497
...
30
HUB.SHIFT HUS-532444304
...
61
SHAFT.ASM.PEDAL.LRV HUS-532427945
...
66
COVER.PEDAL.BRAKE.PARKING.LRV HUS-532429694
...
41
Washers HUS-596039801
...
29
WASHER NYLON HUS-532174840
...
20
BRACE CARRIER REAR HUS-532427997
...
11
THRUST WASHER 1370H HUS-532001370
...
60
CABLE.BRAKE. HUS-532440855
...
39
Screws HUS-596230901
...
56
ROTOR, BRAKE HUS-532428014
