Husqvarna WE261 - 96022001100 (2010-06) Riding Tractor

Model: WE261 - 96022001100 (2010-06)

Back To Assemblies

Save Part Not Listed?
product name

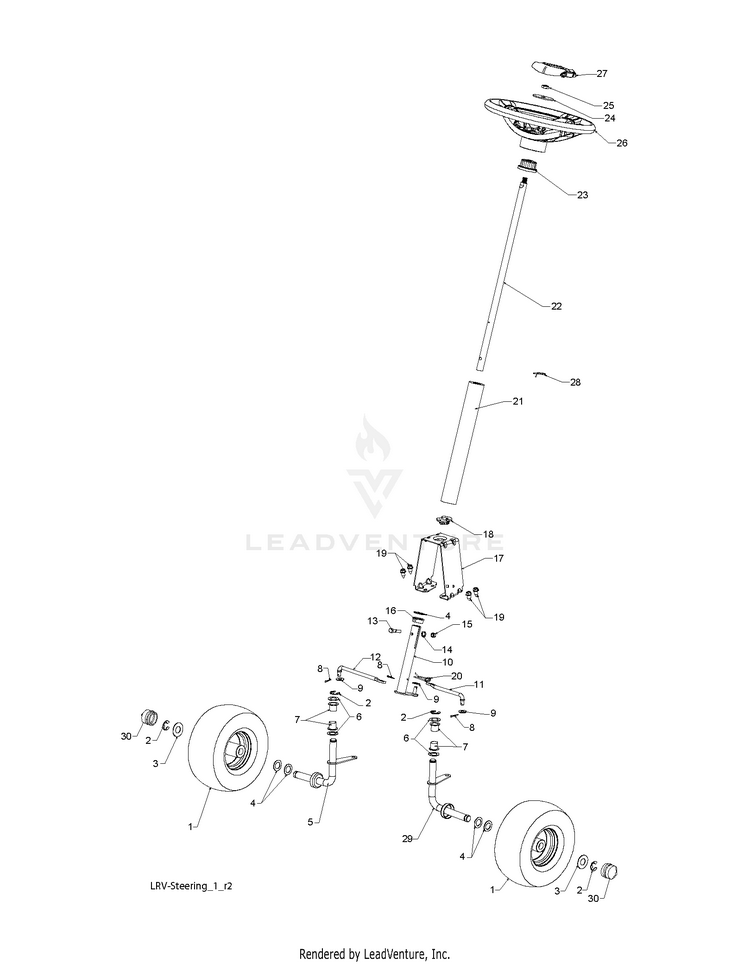

STEERING

...
...
4
WASHER HUS-532121749
...
17
SUPPORT, UPPER STEERING HUS-532428252
...
15
Hardware HUS-596040501
...
6
WASHER THRUST 6266H HUS-532006266
...
26
WHEEL.STEER.STDR.498.OVRM.GRAY HUS-532441614
...
12
LINK.STEERING.RH.LRV RH HUS-532428036
...
14
WASHER HUS-819131016
...
20
CLIP.SPRING.STEERING HUS-532428045
...
13
Bolts HUS-596582201
...
19
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
10
WELDMENT, LWR STRG SHAFT HUS-532428057
...
1
WHEEL ASSY FRONT.LRVA.10"613 FRONT HUS-581420601
...
23
KIT.SRVC.STEERINGSHAFT.ADAPTER HUS-587738905
...
9
WASHER HUS-819131414
...
22
SHAFT, STEERING HUS-532428213
...
18
BEARING.FLANGE.PWD.BRZ.885/865 HUS-532076715
...
21
FOAM.SHAFT.STEERING HUS-532428347
...
24
WASHER 9/16"ID, 2 3/8"OD HUS-819183812
...
3
WASHER.HARDENED HUS-532188967
...
8
PIN.COTTER.5/64X3/4 HUS-532421076
...
7
BEARING.STEERING.COLUMN 3366R HUS-532003366
...
2
E-RING LT HUS-812000001
...
16
BUSHING, STEERING SNAP HUS-532428044
...
30
CAP.HUB.AXLE.LRVA/B HUS-532436499
...
28
RETAINER.CLIP.SPRING.S HUS-532199849
...
11
LINK, STRNG LH LRV LH HUS-532428035
...
27
STEERING CAP HUS-532436503
...
25
NUT.HEX.1/2-20 HUS-873940800
...
29
SERVICE KIT WELDMENT WELDMENT. LH HUS-531155401
...
5
SPINDLE.STEERING.RH.LRVA HUS-532435324
