Husqvarna WE261 - 96022001100 (2010-06) Riding Tractor

Model: WE261 - 96022001100 (2010-06)

Back To Assemblies

Save Part Not Listed?
product name

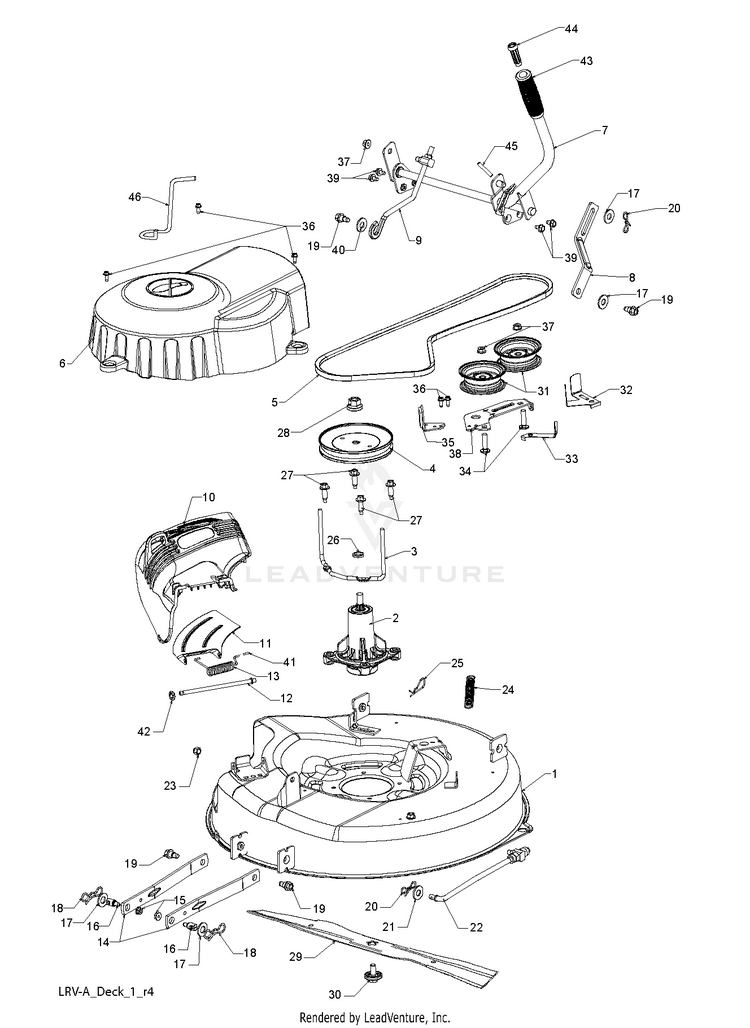

MOWER DECK / CUTTING DECK

...
...
16
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
8
LINK, DECK LIFT HUS-532429195
...
33
SERVICE.KIT KEEPER BELT KEEPER HUS-531148901
...
37
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
20
PIN.COTTER.5/16.BOW TI HUS-532194208
...
39
Screws HUS-596030701
...
22
LINK.ASM.TOP.DECK.LRV HUS-532429350
...
3
KEEPER 42 MANDREL BELT FOR 6.2 HUS-589676103
...
25
RETAINER M HUS-532004497
...
23
Nuts HUS-596322601
...
45
PIN GROOVE. HUS-532105767
...
28
Nuts HUS-596134801
...
38
ARM, IDLER HUS-532428435
...
36
SCREW.1/4-20X5/8 HUS-532137729
...
5
BELT HUS-532428578
...
35
BRAKE.ARM.LH.38"TEX.COATED HUS-532400130
...
27
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
1
DECK SVC 26" LRV 428193X431 HUS-584344001
...
24
SPRING.EXTENSION.DECK.LRV HUS-532429531
...
13
SPRING.TORSION.DEFLECT HUS-532197026
...
15
GSPW Nuts HUS-596135701
...
18
PIN.COTTER.7/16.BOW TI. HUS-532194209
...
12
Rods HUS-595297001
...
19
BOLT.SHOULDER HUS-532196539
...
29
BLADE.26" HUS-532428500
...
46
KEEPER.BELT HUS-532438610
...
30
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
21
WASHER HUS-819171912
...
10
DEFLECTOR.LRV.26 HUS-583536201
...
40
Washers HUS-596040101
...
26
WASHER.SPACER.MANDREL HUS-532187690
...
41
CAP-SLEEVE LT HUS-532105304
...
6
COVER, MANDREL HUS-532428242
...
9
LINK.ASM.LIFT.ADJUSTABLE HUS-532429397
...
4
PULLEY.MANDREL HUS-532432594
...
34
GSPW Bolts HUS-596136101
...
43
GRIP HANDLE HUS-532125631
...
7
LIFT.ASM.DECK.LRV HUS-532429395
...
31
PULLEY.IDLER.FLAT HUS-532177968
...
42
NUT PUSH M HUS-532110452
...
32
SERVICE KIT GUARD HUS-531165901
...
14
ARMS.SUSP.MOWER.REAR.SRD HUS-532418863
...
44
PLUNGER.ASM.LRV HUS-532429401
...
11
SUPPORT, DEFLECTOR HUS-532428968
...
17
WASHER.CLEAR.ZINC HUS-819191912
...
2
KIT.MANDREL.NONGREASE.TALL HUS-587819701
