product name

Husqvarna WE261 - 96022001100 (2010-06) Riding Tractor

Model: WE261 - 96022001100 (2010-06)

Back To Assemblies

Save Part Not Listed?
product name

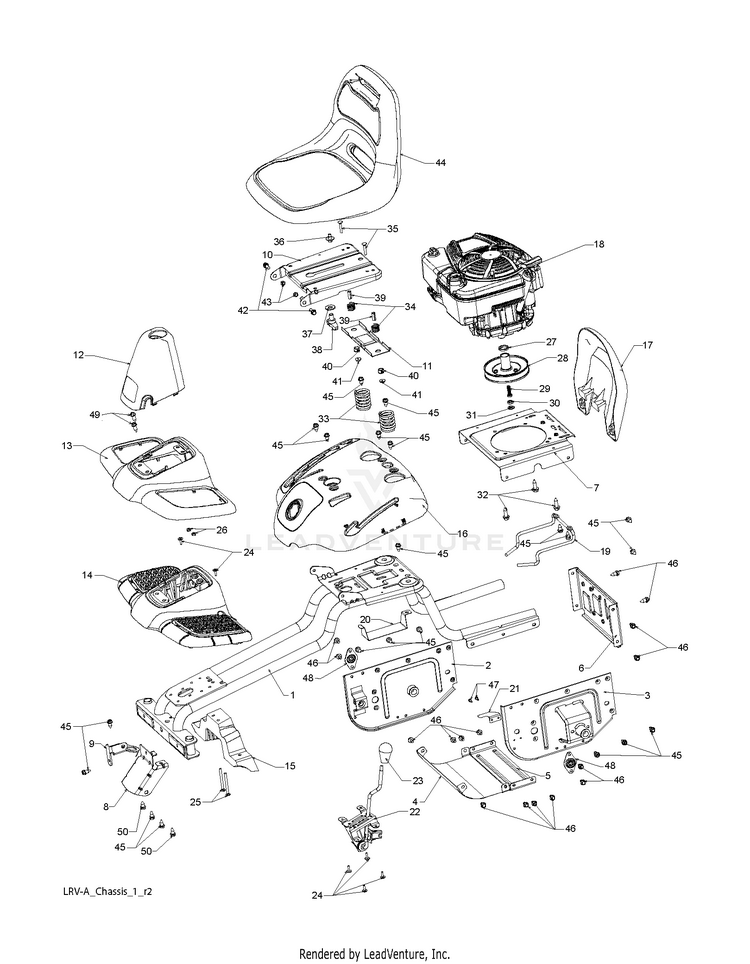

CHASSIS & ENCLOSURES

...
...
11
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
2
SUPPORT, AXEL LH LH HUS-532428247
...
47
SCREW HUS-817021008
...
30
BEARING.BALL.689ZZ HUS-532430470
...
41
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
23
KNOB.OVAL.CUSTOM.BLACK HUS-532149846
...
19
KEEPER, BELT HUS-532428986
...
42
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
29
BOLT, SCKT HD 3/8-24 X 1 .25 HUS-532430817
...
35
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
3
RP SUPPORT, AXLE RH RH HUS-532428244
...
50
BOLT.SHOULDER.5/16-18X HUS-532165492
...
48
BEARING FLANGE BALL HUS-532408981
...
43
Hardware HUS-596040501
...
39
SPACER SPLIT 28X.96 HUS-532134300
...
49
Screws HUS-593337601
...
24
Screws HUS-596321701
...
20
BRACKET, BATTERY LRV HUS-532428046
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
27
SPACER.ENGINE.B&S.LRVA HUS-532430087
...
37
WASHER HUS-819171912
...
5
STRAP.CROSS.FRICTION.DRIVE HUS-532428110
...
13
FOOTREST.AESTHETIC.WE.GRN.LRV HUS-532436496
...
25
BOLT.CARRIAGE HUS-872140424
...
44
SEAT.SUBASY.OPP.WEEDEATER.LRVA HUS-532440691
...
8
BRACKET, CHASSIS FRONT FRONT HUS-532428576
...
38
KNOB.SEAT.ADJ.WINGNUT HUS-532166369
...
6
COVER, FRICTION DRIVE HUS-532428109
...
45
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
18
BRIGGS & STRATTON 12S907-1411-B1 (428047) HUS-000000000
...
26
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
40
BUSHING HUS-532121248
...
36
BOLT,SHOULD HUS-532127018
...
15
SUPPORT, FOOT REST HUS-532428249
...
31
SPACER.NEUTRAL HUS-532437322
...
14
STRUCTURE, FOOT REST HUS-532428250
...
22
CABLE.ASM.CLUTCH.W/BRACKET HUS-532428826
...
9
BRACKET, STEERING SUPPORT HUS-532428856
...
28
HUB.FRICTION.COMPOSITE SUBASM HUS-580747201
...
12
DUST.BOOT.LRV(INTERNATIONAL) HUS-583513801
...
32
BOLT 3/8-16X1-1/8 HUS-532150406
...
16
FENDER.CNTRL.PNL.WE.GRN.LRV HUS-532436497
...
7
PLATE, ENGINE HUS-532428040
...
34
SPRING HUS-532121250
...
21
LEVER, SWITCH HUS-532429815
...
4
SHIELD, TRANSAXLE FRONT FRONT HUS-532428346
...
1
CHASSIS.WLD.26".LRV HUS-532428048
...
33
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
46
Screws HUS-596030701
...
17
GUARD.ENGINE.LRV HUS-532428348
