Husqvarna WE2050A (1994) Tractor

Model: WE2050A (1994)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
ENGINE B&S HUS-351777
...
2
BRACKET.ACTUAT.LH HUS-140876
...
3
STREET ELBOW LT HUS-13240300
...
4
PIPE NIPPLE HUS-13280328
...
5
ELBOW HUS-13200300
...
6
PIPE.EXHAUST.B&S HUS-140805
...
7
SUB= 151396 HUS-143599
...
8
SUB= 139123 HUS-121361X
...
9
SUB= 150828 HUS-138559
...
10
BUSHING HUS-135432X
...
11
SUB= 142600 HUS-137140
...
12
PULLEY.ENGINE.VGT HUS-136907
...
13
"BOLT,HEX" HUS-74780624
...
14
WASHER HUS-19131414
...
15
SUB= 151346 HUS-141069
...
16
PAD IDLER TI HUS-109227X
...
17
PAD-SPACER LT HUS-106082X
...
18
SUB= 158990 HUS-123549X
...
19
PLUG T HUS-13290300
...
20
CONTROL.TRTL.37 HUS-143885
...
21
SCREW LT HUS-17720410
...
22
CHOKE CONTROL HUS-132784
...
23
WASHER HUS-19132616
...
24
LOCKWASHER HUS-11050600
...
25
SUB= 7810H HUS-73610600
...
26
BUSHING OUTLET T HUS-3645J
...
27
SUB= 139277 HUS-139227
...
28
SUB= 8542R HUS-7834R
...
29
SPARK ARREST KIT HUS-132920
...
30
WASHER T HUS-19132007
...
33
NUT HUS-73800600
...
37
CLAMP HUS-23487X
...
38
LOCKWASHER HUS-11050600
...
39
SCREW LT HUS-17490624
...
40
SCREW.3/8-16X3.25 HUS-17490652
...
41
WASHER HUS-126197X
...
42
LOCKWASHER HUS-10040700
...
43
SUB= 150280 HUS-71170768
...
44
WIRE.LEAD.SENTRY HUS-144222
...
46
WASHER HYT HUS-19131616

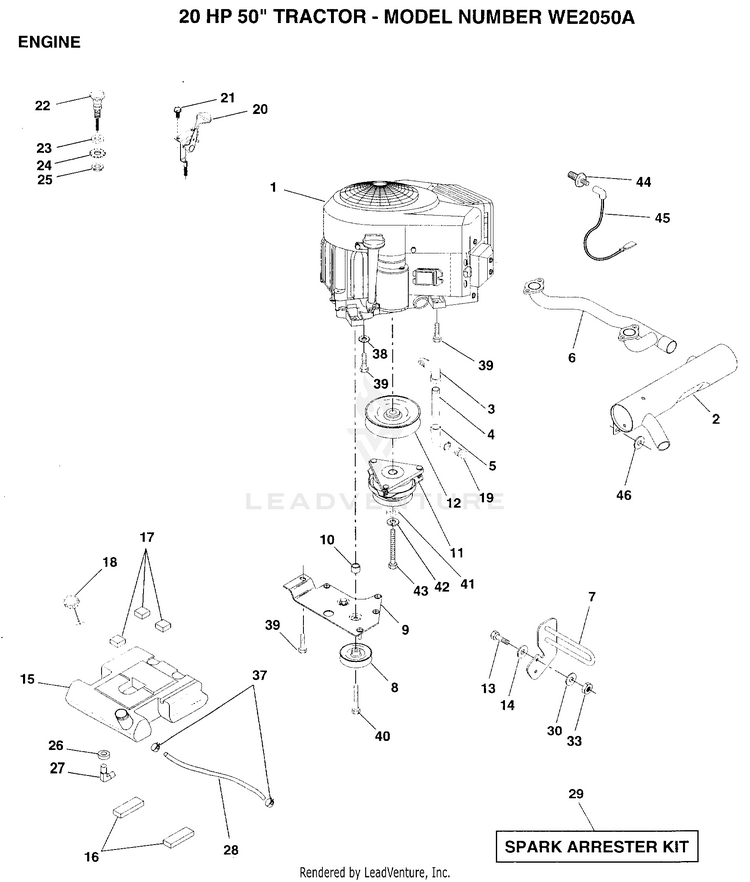

Schematic Image Zoomed
