Husqvarna WE2050A (1994) Tractor

Model: WE2050A (1994)

Back To Assemblies

Save Part Not Listed?
product name

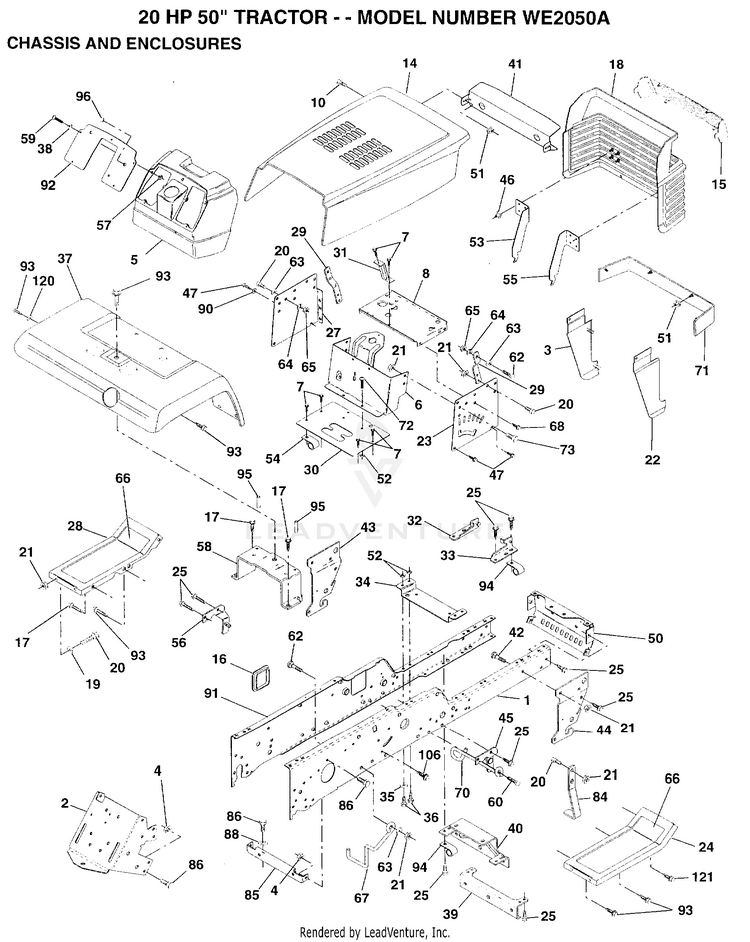

CHASSIS AND ENCLOSURES

...
...
1
SUB= 150383 HUS-140505
...
2
DRAWBAR, GT HUS-14506
...
3
SIDE PANEL LH HUS-123765X419
...
4
NUT.7/16 HUS-73800700
...
5
SUB= 145203 HUS-136696
...
6
DASH ASM LOWER HUS-139420
...
7
SCREW HUS-17720408
...
8
SUPPORT BATRY VGT HUS-140229
...
10
SCREW SPECIAL HUS-124201X
...
14
HOOD HUS-123801X419
...
15
LENS GRILLE HUS-110989X
...
16
COVER ACCESS HUS-121794X
...
17
SCREW HUS-17490612
...
18
GRILLE ASM WELD HUS-140671
...
19
WASHER HUS-19131312
...
20
BOLT HUS-74760616
...
21
NUT HUS-73800600
...
22
SIDE PANEL RH HUS-123764X419
...
23
SUB= 532121045 HUS-121045X
...
24
FOOTREST RH HUS-105464X419
...
25
SCREW HUS-17490612
...
26
SCREW HUS-17490512
...
27
SUB= 532121046 HUS-121046X
...
28
SUB= 145244X419 HUS-105465X419
...
29
BRKT.SUPT.DASH HUS-138193
...
30
SADDLE SILKSCRN HUS-137143X014
...
31
BRACE.SUPT.STRG HUS-137556
...
32
BRACKET ASM FRAME HUS-141315
...
33
BRACKET ASM FRAME HUS-141314
...
34
BRACKET.ENG.SUPT. HUS-142131
...
35
WASHER HUS-19111116
...
36
BOLT HUS-74780512
...
37
FENDER HUS-121642X419
...
38
WASHER PM HUS-19091216
...
39
BRACKET.AXLE.FRT. HUS-136961
...
40
SUB= 156111 HUS-142132
...
41
SUB= 918132257 HUS-132257
...
42
SUB= 72110608 HUS-72140608
...
43
BRACKET.SUS.FT.LH HUS-136939
...
44
BRACKET, SPNSN FR. RH HUS-163940
...
45
SUB= 155887 HUS-138460
...
46
SUB= 155887 HUS-138460
...
47
SCREW LT HUS-17490608
...
50
BRACKET.CHASSIS. HUS-136575
...
51
PAL NUT LT HUS-108067X
...
52
NUT HUS-73800500
...
53
BRACKET.RH HUS-137467
...
54
"CLIP,INSULATOR" HUS-126470X
...
55
BRACKET.LH HUS-137466
...
56
SUB= 155886 HUS-138461
...
57
NUT HUS-73510400
...
58
BRKT.ASM.FENDER HUS-137113
...
59
SCREW HUS-74180412
...
60
SCREW HUS-17490620
...
62
BOLT D HUS-72110608
...
63
WASHER HUS-19131614
...
64
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
65
NUT.HEX.3/8-16UNC HUS-73220600
...
66
FOOTREST PAD HUS-133671
...
67
GUIDE BELT TRANS HUS-140737
...
68
SCREW LT HUS-17490508
...
70
GUIDE.BELT.MID.SP HUS-137159
...
72
SCREW HUS-74180512
...
73
BOLT HUS-74780616
...
84
STOP.OVER.CENTER HUS-142992
...
85
SUB= 156404 HUS-120404X
...
86
BOLT HUS-74760716
...
88
LOCKWASHER HUS-10040700
...
90
LOCKWASHER HUS-11050600
...
91
SUB= 151630 HUS-140504
...
92
PLATE, SILKSCREEN DASH HUS-140938X011
...
93
SCREW LT HUS-17490608
...
94
CLIP GTV HUS-100207K
...
95
NUT-PUSH YT HUS-105531X
...
96
PLUG-DASH T HUS-8022J
...
106
BOLT.5/16-18X1.25 HUS-17580520
...
120
WASHER HYT HUS-19131616
...
121
PAL NUT HUS-120579X
