Husqvarna WE185H42E (1998) Tractor

Model: WE185H42E (1998)

Back To Assemblies

Save Part Not Listed?
product name

SEAT

...
...
1
SUB= 140119 HUS-127428
...
2
BRACKET PVT SEAT HUS-140551
...
3
BOLT HUS-74760616
...
4
WASHER PM HUS-19131610
...
5
CLIP.PUSH-IN.HING HUS-145006
...
6
NUT HUS-73800600
...
7
SPRING COMPRESSIO HUS-124181X
...
8
SCREW GTV HUS-17490616
...
9
WASHER HUS-19131614
...
10
PAN-SEAT HUS-155925
...
12
BRKT SWITCH HUS-121246X
...
13
BUSHING HUS-121248X
...
14
BOLT-RD HD SQ NK HUS-72050412
...
15
SPLIT SPACER HUS-134300
...
16
SPRING HUS-121250X
...
17
SUB= 73900400 HUS-123976X
...
21
"BOLT,SHOULDER" HUS-153236
...
22
NUT HUS-73800500
...
23
BOLT HUS-74780814
...
24
WASHER HUS-19171912
...
25
"BOLT,SHOULDER" HUS-127018X
...
26
LOCKWASHER HUS-10040800

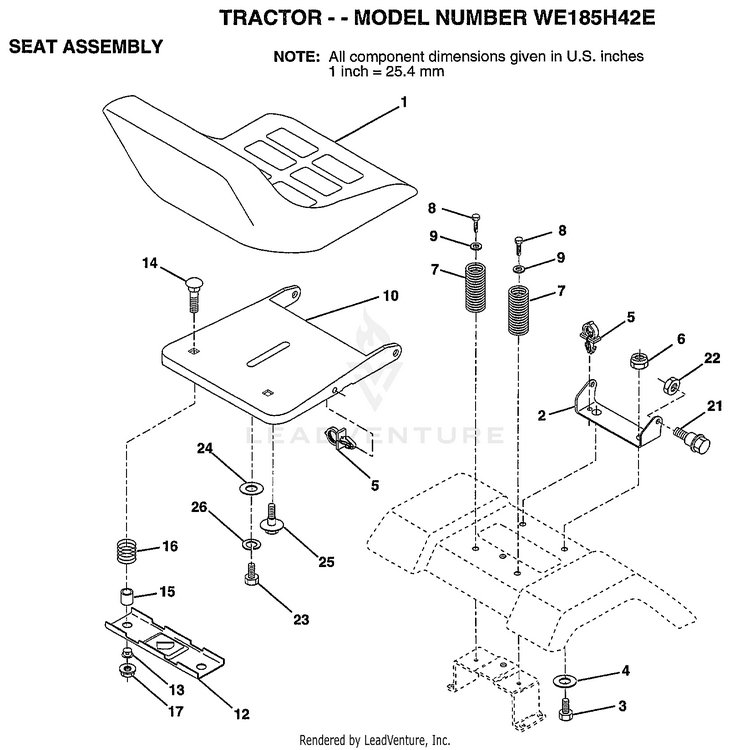

Schematic Image Zoomed
