Husqvarna WE1644A (1994) Tractor

Model: WE1644A (1994)

Back To Assemblies

Save Part Not Listed?
product name

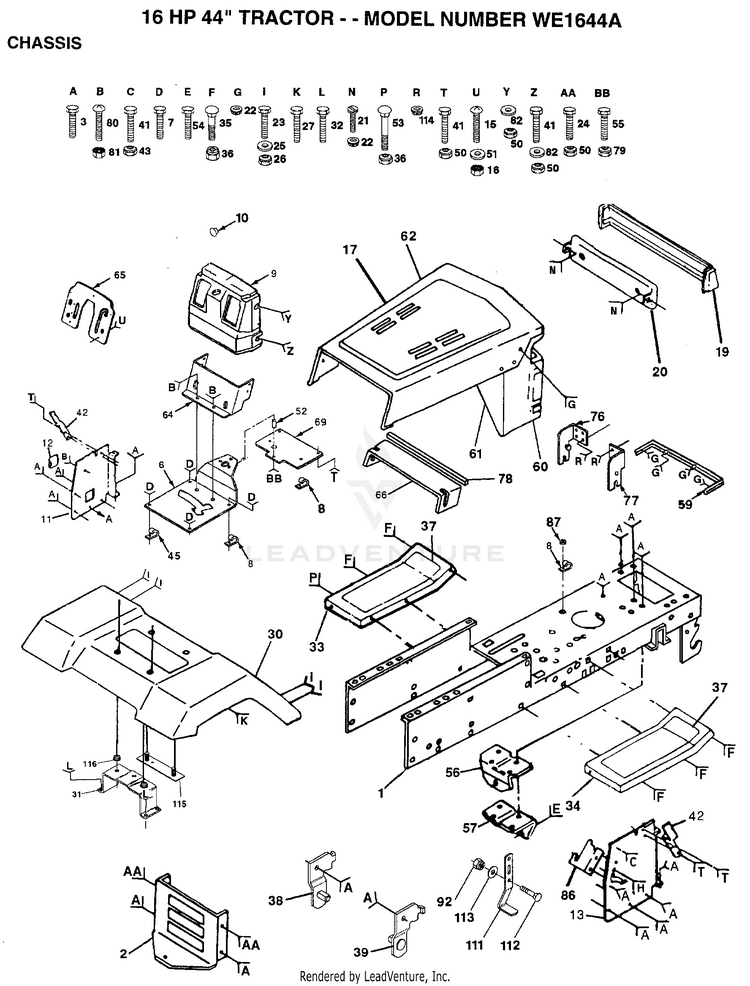

CHASSIS

...
...
1
SUB= 145501 HUS-140341
...
2
DRAW BAR HUS-123785X
...
3
SCREW HUS-17490612
...
6
SUB= 127543X011 HUS-127543
...
7
SCREW HUS-17490612
...
8
CLIP T HUS-2751R
...
9
SUB= 145203 HUS-136696
...
10
PLUG-DASH T HUS-8022J
...
11
PANEL.DASH.RH HUS-138643
...
15
SCREW HUS-74180412
...
16
NUT HUS-73510500
...
17
HOOD HUS-123801X419
...
19
LENS T HUS-110898X
...
20
SUB= 918132257 HUS-132257
...
21
SCREW SPECIAL HUS-124201X
...
22
PAL NUT LT HUS-108067X
...
23
BOLT HUS-74780616
...
24
SUB= 74780612 HUS-74760612
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
27
SCREW LT HUS-17490608
...
30
FENDER.RALLY.GRN. HUS-140002X419
...
31
BRACKET FENDER HUS-137713
...
32
SCREW HUS-17490612
...
33
SUB= 145244X419 HUS-105465X419
...
34
FOOTREST RH HUS-105464X419
...
35
BOLT HUS-72110606
...
36
NUT HUS-73800600
...
37
FOOTREST PAD HUS-133671
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
41
BOLT HUS-74760616
...
42
BRACKET.ASM.SUPT. HUS-139915
...
43
SUB= 73690600 HUS-73680600
...
45
"CLIP,INSULATOR" HUS-126471X
...
50
NUT HUS-73800600
...
51
WASHER HUS-19111116
...
52
SPACER HUS-121236X
...
53
SUB= 72110608 HUS-72140608
...
54
SCREW LT HUS-17490508
...
55
BOLT HUS-74760532
...
56
SUPPORT-SADDL T HUS-105663X
...
57
SUPPORT.SADDLE.FT HUS-105664X
...
59
"STRAP,GRILL" HUS-110350X419
...
60
GRILLE ASM WELD HUS-140671
...
61
ASSY RH PANEL HUS-123674X419
...
62
SIDE PANEL LH HUS-123765X419
...
64
DASH-LOWER YT HUS-105518X
...
65
PLATE SLKSC YT/ HUS-140941X011
...
66
"BAFFLE,HOOD" HUS-124046X
...
69
PLATE.SUPT.BATTER HUS-140181
...
76
BRACKET.RH HUS-137467
...
77
BRACKET.LH HUS-137466
...
78
FOAM STRIP T HUS-109458X
...
79
NUT HUS-73800500
...
80
SCREW HUS-74180512
...
81
NUT HUS-73510500
...
82
WASHER HUS-19131614
...
87
SUB= 9151R HUS-110436X
...
92
NUT HUS-73800600
...
111
STOP.OVER.CENTER HUS-142992
...
112
BOLT HUS-72240608
...
113
WASHER GT HUS-19131612
...
114
PAL NUT HUS-120579X
...
115
STRAP ASM FENDER HUS-140675
...
116
NUT-PUSH YT HUS-105531X
