product name

Husqvarna WE1644A (1994) Tractor

Model: WE1644A (1994)

Back To Assemblies

Save Part Not Listed?

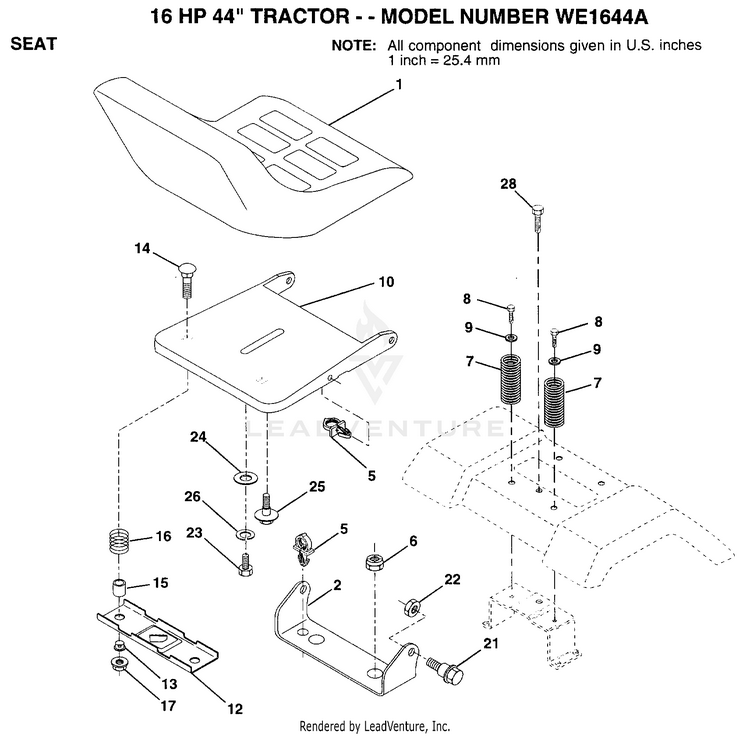

product name

SEAT

...
...
1
SUB= 140121 HUS-127429X
...
2
BRACKET PVT SEAT HUS-140551
...
5
CLIP PUSH - IN HUS-140407
...
6
SUB= 73690600 HUS-73680600
...
7
SPRING COMPRESSIO HUS-124181X
...
8
SCREW LT HUS-17490508
...
9
WASHER HUS-19131614
...
10
SUB= 155925 HUS-140552
...
12
BRKT SWITCH HUS-121246X
...
13
BUSHING HUS-121248X
...
14
SUB= 872050411 HUS-72050411
...
15
SPACER SPLIT HUS-121249X
...
16
SPRING COMPRESSED HUS-123740X
...
17
SUB= 73900400 HUS-123976X
...
21
BOLT.SHLD.5/16-18 HUS-139888
...
22
SUB= 73690500 HUS-73680500
...
23
BOLT HUS-74780814
...
24
WASHER HUS-19171912
...
25
"BOLT,SHOULDER" HUS-127018X
...
26
LOCKWASHER HUS-10040800
...
28
SCREW LT HUS-17490608
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
