product name

Husqvarna WE145H42F (1999) Tractor

Model: WE145H42F (1999)

Back To Assemblies

Save Part Not Listed?

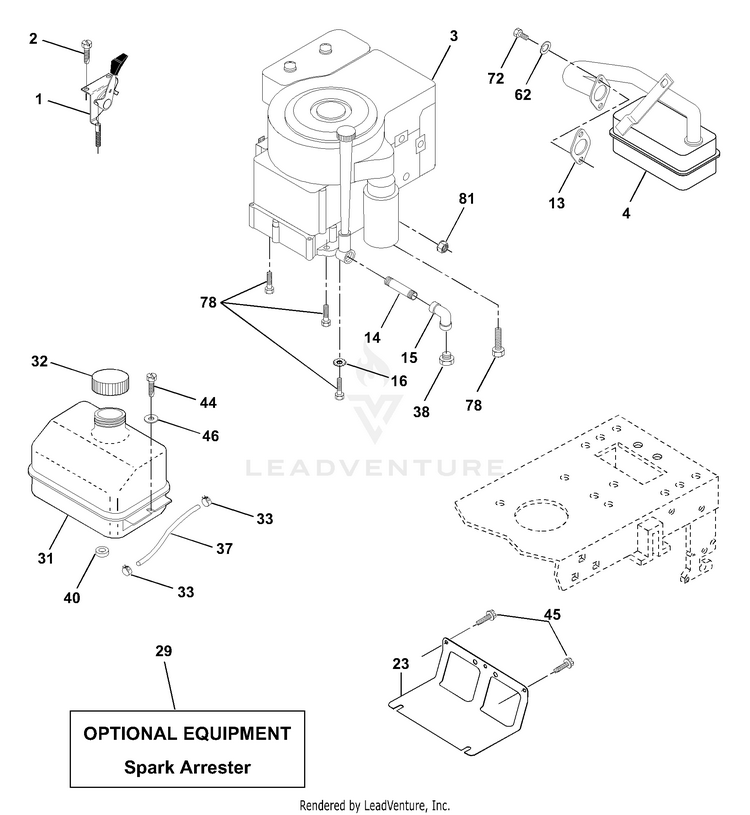

product name

Engine

...
...
1
Control Throt /Ch 23.5 Lh Flag HUS-140310
...
2
Screw Hex Thd Cut 1/4-20 x 5/8 T HUS-17720410
...
4
Muffler Exhaust B&S Lt HUS-137352
...
13
Gasket 1 313 Id Tin Plated HUS-165291
...
14
Nipple Pipe 3/8 Npt x 3" HUS-13280324
...
15
Elbow Std 90 Degree 3/8-18 Npt HUS-13200300
...
16
Washer Lock Ext Tooth 3/8 HUS-11050600
...
23
Shield Browning/Debris Guard HUS-169837
...
29
Arrestor Spark HUS-137180
...
31
Tank Fuel 1 25 Fr HUS-109202X
...
32
Cap Asm Fuel W/sym Vented HUS-140527
...
33
Clamp Hose Blk HUS-123487X
...
37
Line Fuel 20" HUS-137040
...
40
Bushing Snap Nyl Blk Fuel Line HUS-124028X
...
44
Screw Hexwsh Thdrol 1/4-20 x 3/4 HUS-17670412
...
45
Screw Hex Wsh Thdrol 3/8-16 HUS-17000612
...
46
Washer 9/32 x 7/8 x 16ga HUS-19091416
...
62
Washer Lock Hvy Hlcl Spr 5/16 HUS-10040500
...
72
Screw Hexhd Cap 5/16-18 x 3/4 HUS-71070512
...
78
Screw 3/8-16 x1-1/4 HUS-17060620
...
81
Nut Keps Hex 1/4-20 Unc HUS-73510400
