Husqvarna WE13T38D (2001) Tractor

Model: WE13T38D (2001)

Back To Assemblies

Save Part Not Listed?
product name

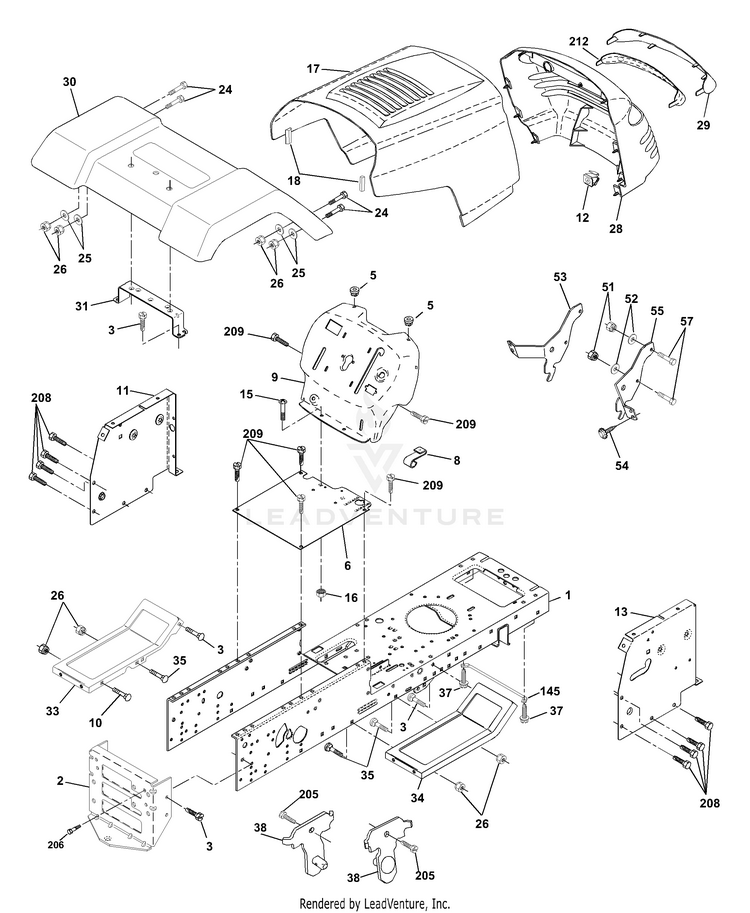

Chassis

...
...
1
Chassis HUS-169831
...
2
Drawbar, Stretch HUS-176554
...
3
Screw 3/8-16 x 3/4 HUS-17060612
...
5
Bumper, Hood/Dash HUS-155272
...
6
Saddle Silkscreen Flt Sdl HUS-155924X011
...
8
Clip Retainer Slide-On HUS-155138
...
9
Dash HUS-168347X011
...
10
Bolt, Carriage 3/8-16 x 1 HUS-72140608
...
11
Panel Dash LH HUS-155927
...
12
Clip Tinnerman Grille P.L HUS-145660
...
13
Panel Slkscr Dash RH HUS-172107X010
...
15
Screw Mach TRHD 5/16-18uncx3/4 HUS-74180512
...
16
Nut Keps 5/16-18 Unc HUS-73510500
...
17
Hood HUS-159639X550
...
18
Bumper Hood HUS-126938X
...
24
Bolt Fin Hex 3/8-16unc X 1 Gr. 5 HUS-74780616
...
25
Washer 13/32 X 13/16 X 12 Ga HUS-19131312
...
26
Nut Lock Hex w/Ins 3/8-16 Unc HUS-73800600
...
28
Grille P.L HUS-140434
...
29
Lens Grille Private Label HUS-140273X599
...
30
Fender HUS-169465X550
...
31
Bracket Fender Repl 109873x HUS-136619
...
33
Footrest Pnt LH Perf HUS-105476X550
...
34
Footrest Pnt RH Perf HUS-105475X550
...
35
Bolt Rdhd Sht Sqnk 3/8-16 X3/4 HUS-72110606
...
37
Screw Thdrol 5/16-18 x 1/2 TYT HUS-17490508
...
38
Bracket Asm. Pivot Mower Rear HUS-169834
...
51
Nut Lock W/Insert 1/4-20unc HUS-73800400
...
52
Washer 9/32 x 7/8x16 Ga. HUS-19091416
...
53
Bracket Grille Lh HUS-144697
...
54
Screw Hex 8-18 x 7/8 HUS-161464
...
55
Bracket Grille Rh HUS-144696
...
57
Bolt Fin Hex 1/4-20 unc x .75 HUS-74780412
...
145
Rod Pivot Chassis/Hood HUS-156524
...
205
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
206
Bolt Shoulder 5/16-18 HUS-170165
...
208
Screw Thdrol 3/8-16 x 1/2 HUS-17670608
...
209
Screw Hex Wsh Thdrol 3/8-16 HUS-17000612
...
212
Insert Lens Reflect HUS-156229
...
xx
Plug Button Blk 359 Dia Choke HUS-5479J
