Husqvarna WE12R38A (1993) Tractor

Model: WE12R38A (1993)

Back To Assemblies

Save Part Not Listed?
product name

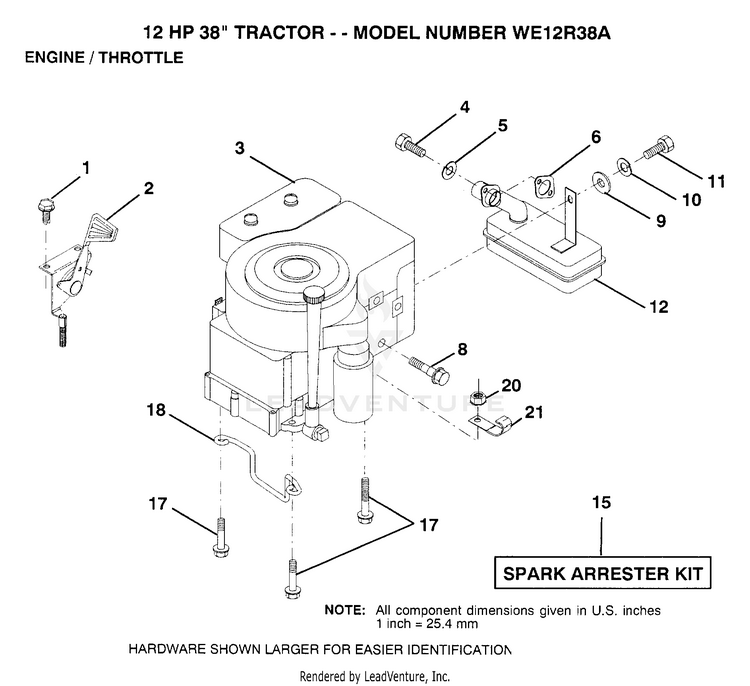

ENGINE AND THROTTLE

...
...
1
SCREW.1/4-20X1/2 HUS-17060408
...
2
THROTTLE CONTROL HUS-132521
...
3
ENGINE HUS-283707
...
4
SCREW HUS-71070512
...
5
LOCKWASHER HUS-10040500
...
6
SUB= 272293 HUS-125593X
...
8
BOLT T HUS-121094X
...
9
WASHER HUS-19101216
...
10
LOCKWASHER HUS-10040400
...
12
MUFFLER HUS-137437
...
15
SUB= 532137180 HUS-137180
...
17
SCREW LT HUS-17490624
...
18
"KEEPER,DR BELT GR" HUS-126636X
...
20
NUT HUS-73510600
...
21
CLIP T HUS-2751R
