Husqvarna WE12N38D (1997) Tractor

Model: WE12N38D (1997)

Back To Assemblies

Save Part Not Listed?
product name

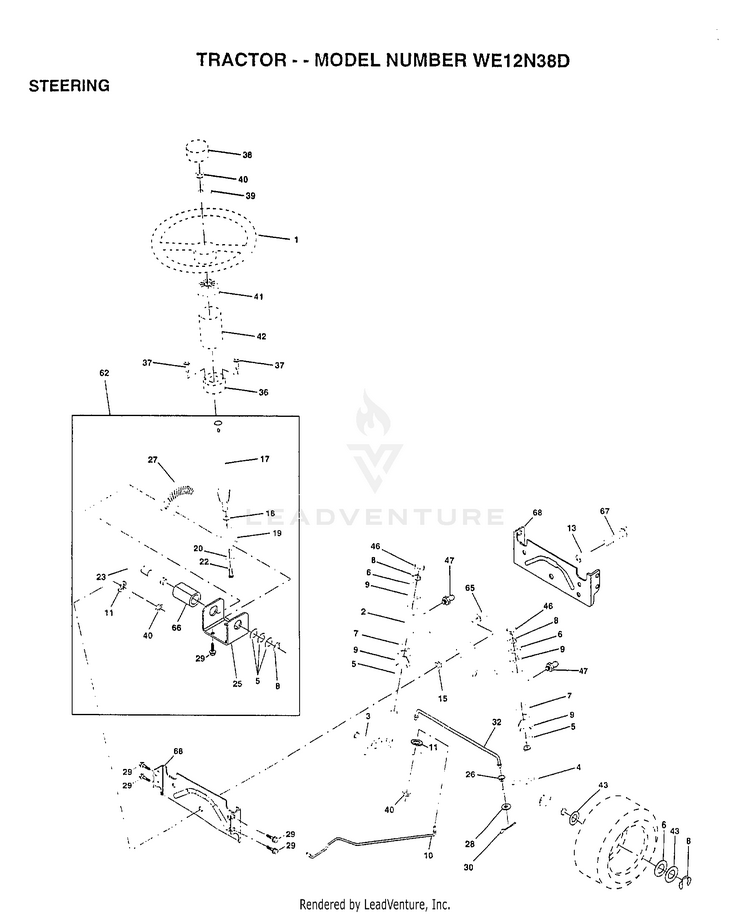

STEERING

...
...
1
SUB= 150547 HUS-133741
...
2
AXLE ASM HUS-154427
...
3
SPINDLE.ASM.LH HUS-156483
...
4
"SPINDLE ASM,RH" HUS-157473
...
5
WASHER .T HUS-6266H
...
6
WASHER HUS-121748X
...
7
WASHER HUS-19272016
...
8
RING HUS-12000029
...
9
COL. SRTG. BEAR. HUS-3366R
...
10
DRAGLINK-STAMPED HUS-156438
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
BEARING AXLE HUS-154779
...
15
"NUT-LOC,FLANGE LT" HUS-73901000
...
17
SHAFT ASSM STEERN HUS-156545
...
18
THRUST WASHER HUS-57079
...
19
SUPPORT.SHAFT HUS-124035X
...
20
SUB= 532126684 HUS-126684X
...
22
SCREW HEX SOC1/4- HUS-71200410
...
23
SUB= 918127501 HUS-127501
...
25
BRKT-STEERING HUS-154406
...
26
BUSHING.DRAGLINK HUS-126847X
...
27
GEAR SECTOR HUS-136874
...
28
WASHER HUS-19131416
...
29
SCREW HUS-17490612
...
30
COTTER PIN HUS-76020412
...
32
TIE ROD HUS-130465
...
36
BUSHING.STEERING HUS-155099
...
37
"SCREW-TT,10-32 FL" HUS-152927
...
38
ST WHL INSERT CAP HUS-133742
...
39
WASHER T HUS-19133808
...
40
GRIPCO NUT HUS-7810H
...
41
ADAPTER-WHEEL LT HUS-104820X
...
42
"TUBE, STR SHAFT" HUS-124418X
...
43
WASHER HUS-121749X
...
46
CAP HUS-121232X
...
47
ZERK M HUS-6855M
...
62
STEERING ASM KIT HUS-156593
...
65
SPACER AXLE HUS-154780
...
66
"BEARING-ARM,PITMA" HUS-154404
...
67
BOLT HUS-74781044
...
68
BRACE AXLE HUS-154429
