Husqvarna WE125R38A (1993) Tractor

Model: WE125R38A (1993)

Back To Assemblies

Save Part Not Listed?
product name

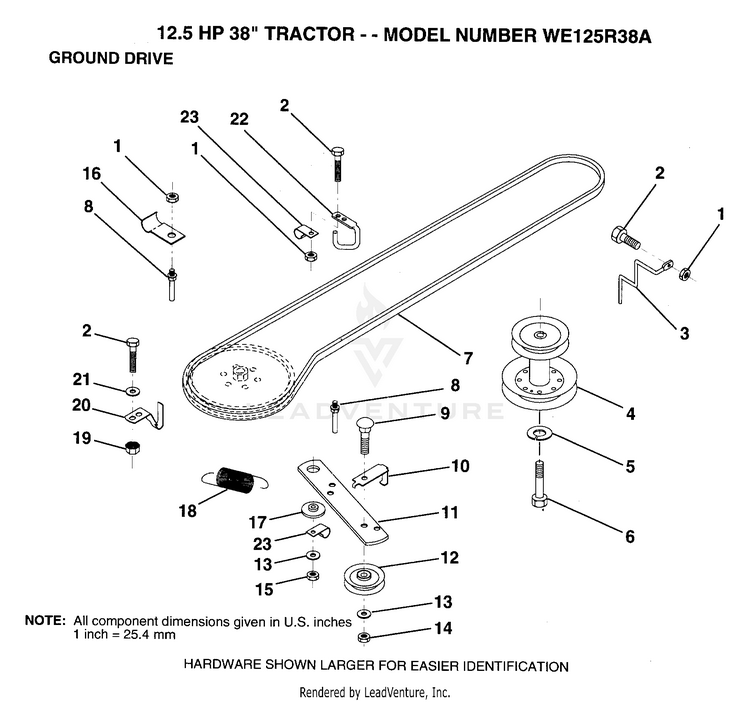

GROUND DRIVE

...
...
1
SUB= 73690500 HUS-73680500
...
2
BOLT HUS-74760512
...
3
KEEPER MWR DR BLT HUS-132946
...
4
PULLEY.ENGINE.LR HUS-138029
...
5
LOCKWASHER HUS-10040700
...
6
HEX BOLT HUS-71170744
...
7
BELT HUS-124525X
...
8
"KEEPER,DRIVE BELT" HUS-123405X
...
9
BOLT HUS-72140612
...
10
"KEEP,IDLER DR BEL" HUS-123396X
...
11
SUB= 140911 HUS-123395X
...
12
PULLEY IDLER HUS-121316X
...
13
WASHER HUS-19131316
...
14
LOCKNUT HUS-73930600
...
15
SUB= 73690600 HUS-73680600
...
16
"CLIP,INSULATOR" HUS-126471X
...
17
SPACER RETAINER HUS-122052X
...
18
SUB= 532131459 HUS-131459
...
19
NUT HUS-73510500
...
20
"KEEPER,DR BELT " HUS-123891X
...
21
WASHER HUS-19111016
...
22
"KEEPER,FRA DR BEL" HUS-123404X
...
23
CLIP INSULATOR HUS-126472X
