Husqvarna WE12538G (2000) Tractor

Model: WE12538G (2000)

Back To Assemblies

Save Part Not Listed?
product name

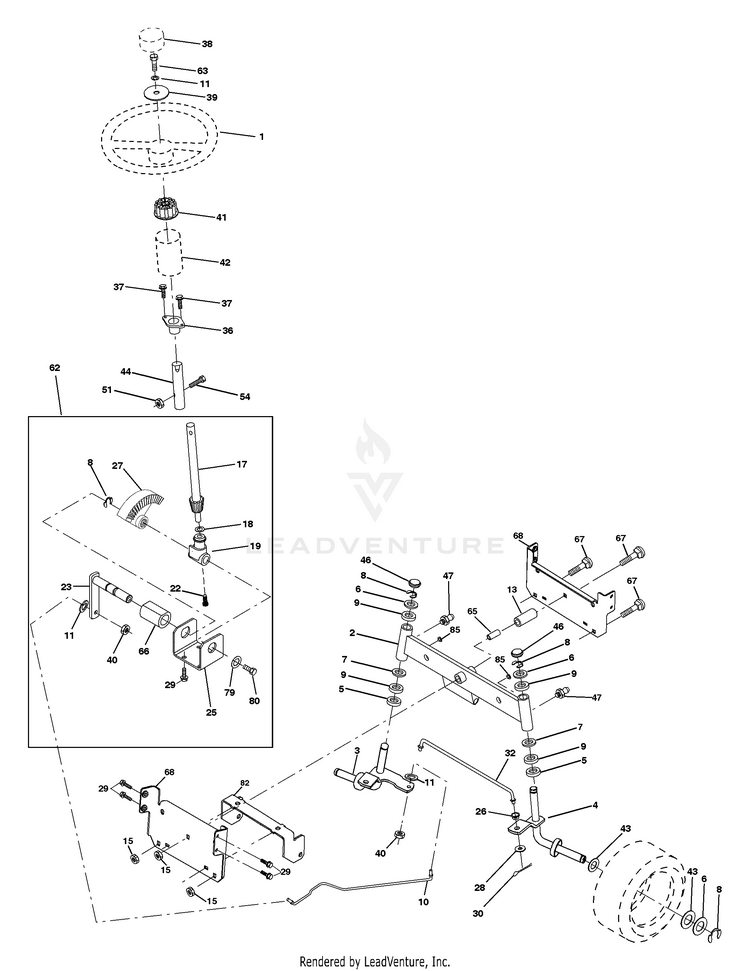

Steering

...
...
1
Wheel Steering Ayp/P/L Blk HUS-140044
...
2
Axle Asm HUS-154427
...
3
Spindle Asm LH HUS-169840
...
4
Spindle Asm RH HUS-169839
...
5
Bearing Race Thrust Harden HUS-6266H
...
6
Washer 25/32 X 1-5/8 X 16 Ga HUS-121748X
...
7
Washer 27/32 X 1-1/4 X 16 Ga HUS-19272016
...
8
Ring Klip #t5304-75 HUS-12000029
...
9
Bearing Col Strg Blk HUS-3366R
...
10
Link Drag HUS-169832
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
13
Spacer earing Axle Front HUS-136518
...
15
Hex flange Lock HUS-145212
...
17
Shaft Asm Strg HUS-156546
...
18
Washer Thrust 515x 750x 033 HUS-57079
...
19
Support Shaft HUS-160395
...
22
Screw Hex Wsh Hd Torx HUS-165857
...
23
Shaft Asm Pittman HUS-165851
...
25
Bracket Steering HUS-154406
...
26
Bushing Link Drag Blk LR HUS-126847X
...
27
Gear Sector HUS-136874
...
28
Washer 13/32 X 7/8 X 16 Ga HUS-19131416
...
29
Screw 3/8-16 x 3/4 HUS-17060612
...
30
Pin Cotter 1/8 X 3/4 Cad HUS-76020412
...
32
Rod Tie Wire Form 19 75 Mech HUS-130465
...
36
Bushing Strg 5/8 Id Dash HUS-155099
...
37
Screw HUS-152927
...
38
Cap Wheel Steer Ayp HUS-140045
...
39
Washer 13/32 x 2-3/8 x 12 Ga. HUS-19133812
...
40
Nut Lock Center 3/8-24un HUS-7810H
...
41
Adaptor Wheel Strg HUS-100711L
...
42
Boot Dash Mtl Steering Blk HUS-145054X428
...
43
Washer 25/32 X 1 1/4 X 16 Ga HUS-121749X
...
44
Extension Steering HUS-153720
...
46
Cap Spindle Fr Top Blk HUS-121232X
...
47
Fitting Grease HUS-6855M
...
51
Nut Lock Hex W/Ins 5/16-18 HUS-73800500
...
54
Bolt Fin Hex 3/8-16unc x 1-1/4 HUS-74780520
...
62
Kit Steering Assembly Service HUS-167902
...
63
Bolt Fin Hex 3/8-16unc x 1 Gr.5 HUS-74780616
...
65
Spacer Brace Axle HUS-160367
...
66
Bearing Arm Pittman HUS-154404
...
67
Bolt Fin Hex 5/8-11 unc x 2-3/4 HUS-72140618
...
68
Brace Axle HUS-169827
...
79
Washer 13/32 x 1 1/4 x 12 Ga. HUS-19132012
...
80
Bolt Hex 3/8-16 x 3/4 HUS-74950612
...
82
Bracket Susp Chassis Front HUS-169835
...
85
Fastener Christmas Tree HUS-133835
