Husqvarna WE1236A (1999 & Before) Tractor

Model: WE1236A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

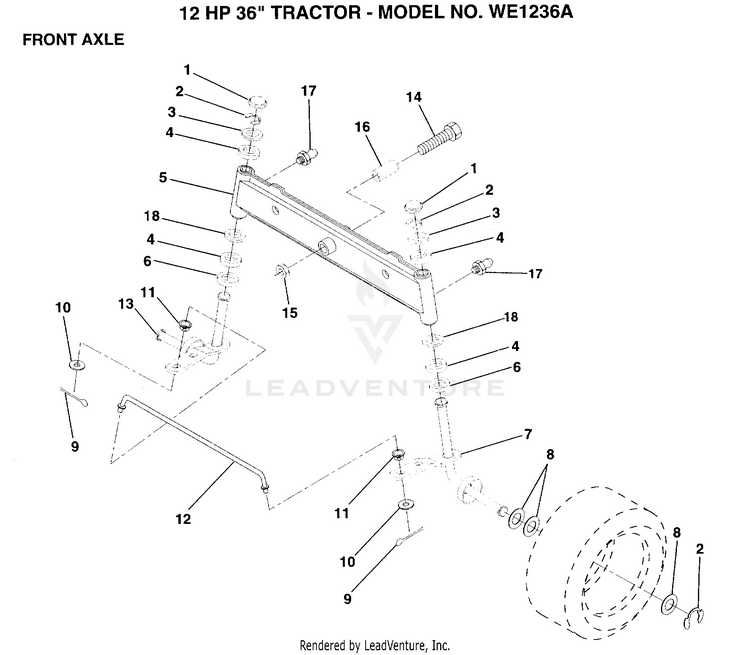

FRONT AXLE

...
...
1
CAP HUS-121232X
...
2
RING HUS-12000029
...
3
WASHER HUS-121748X
...
4
COL. SRTG. BEAR. HUS-3366R
...
5
AXLE ASM FRONT HUS-142033
...
6
WASHER .T HUS-6266H
...
7
SPINDLE ASM RH HUS-137062
...
8
WASHER HUS-121749X
...
9
COTTER PIN HUS-76020412
...
10
WASHER HUS-19131316
...
11
BUSHING.DRAGLINK HUS-126847X
...
12
TIE ROD HUS-130465
...
13
SPINDLE ASM LH HUS-137061
...
14
BOLT HEX 5/8-11 HUS-74011056
...
15
"NUT-LOC,FLANGE LT" HUS-73901000
...
16
BEARING HUS-110438X
...
17
ZERK M HUS-6855M
...
18
WASHER HUS-19272016
