Husqvarna WE1136A (1999 & Before) Tractor

Model: WE1136A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

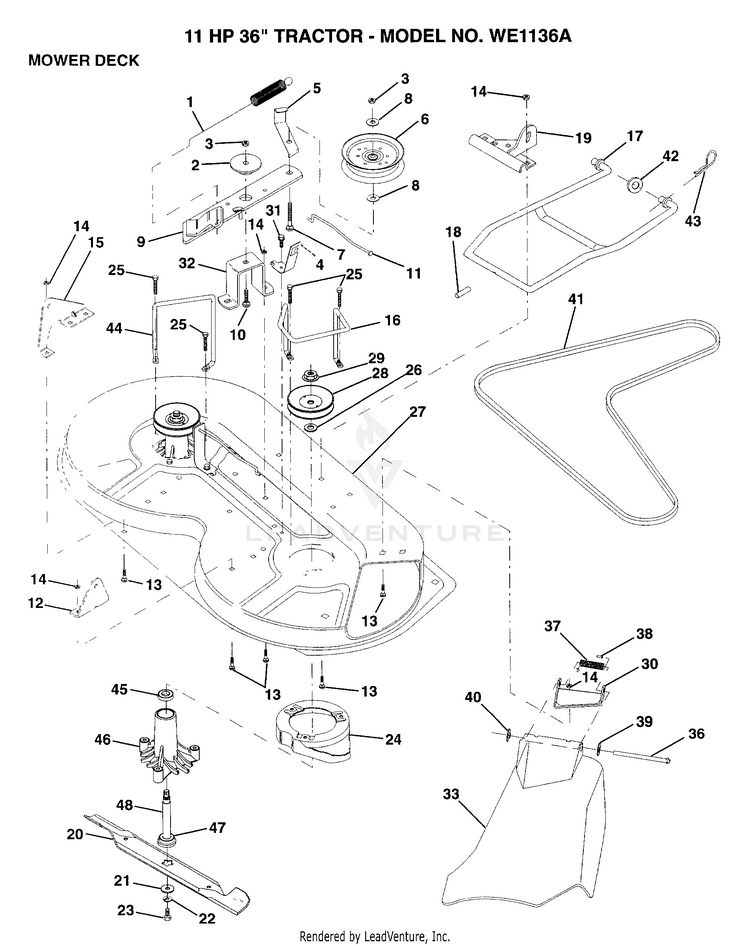

MOWER DECK

...
...
1
SUB= 140064 HUS-127743
...
2
SPACER RETAINER HUS-122052X
...
3
SUB= 73690600 HUS-73680600
...
4
BRAKE ASM HUS-130840
...
5
IDLER BELT GUIDE HUS-131251
...
6
PULLEY IDLER HUS-121316X
...
7
BOLT HUS-72110616
...
8
WASHER HUS-19131410
...
9
SUB= 140092 HUS-127744
...
10
BOLT D HUS-72110608
...
11
BRAKE ROD HUS-130841
...
12
"BRKT,LIFT REAR" HUS-127356
...
13
BOLT HUS-72140505
...
14
SUB= 73690500 HUS-73680500
...
15
"BRKT,LIFT REAR LH" HUS-127357
...
16
SUB= 153298 HUS-130837
...
17
MOWER LINK STAB HUS-128508
...
18
"PIN,GROOVE" HUS-128511
...
19
"BRKT,LINK STABILI" HUS-127380
...
20
"BLADE.36"" HIPERF" HUS-138496
...
21
WASHER BLADE HUS-129962
...
22
SUB= 10040600 HUS-10030600
...
23
BLADE BOLT HUS-850857
...
24
SUB= 140329 HUS-136929
...
25
SUB= 17580520 HUS-78158
...
26
WASHER HUS-129963
...
27
SUB= 156600 HUS-129983
...
28
SUB= 153531 HUS-129207
...
29
SUB= 139729 HUS-137266
...
30
SUB= 532136631 HUS-136631
...
31
SCREW LT HUS-17490508
...
32
"SUPT,IDLER ARM" HUS-122051X
...
33
SUB= 532131560 HUS-131560
...
36
HINGE ROD HUS-121980X
...
37
SPRING TORSION HUS-123713X
...
38
CAP-SLEEVE LT HUS-105304X
...
39
WASHER HUS-19111016
...
40
NUT PUSH M HUS-110452X
...
41
V-BELT.PRIM.78.5. HUS-131264
...
42
WASHER HUS-19171616
...
43
RETAINER.SPRING HUS-3146R
...
44
SUB= 140608 HUS-130836
...
45
BEARING HUS-110485X
...
46
HSG ASM MANDREL HUS-128774
...
47
BEARING.BALL HUS-129895
...
48
SUB= 137646 HUS-137641
...
xx
MANDREL ASM HUS-130794
...
xx
SUB= 140979 HUS-136317
