Husqvarna WE1136A (1999 & Before) Tractor

Model: WE1136A (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

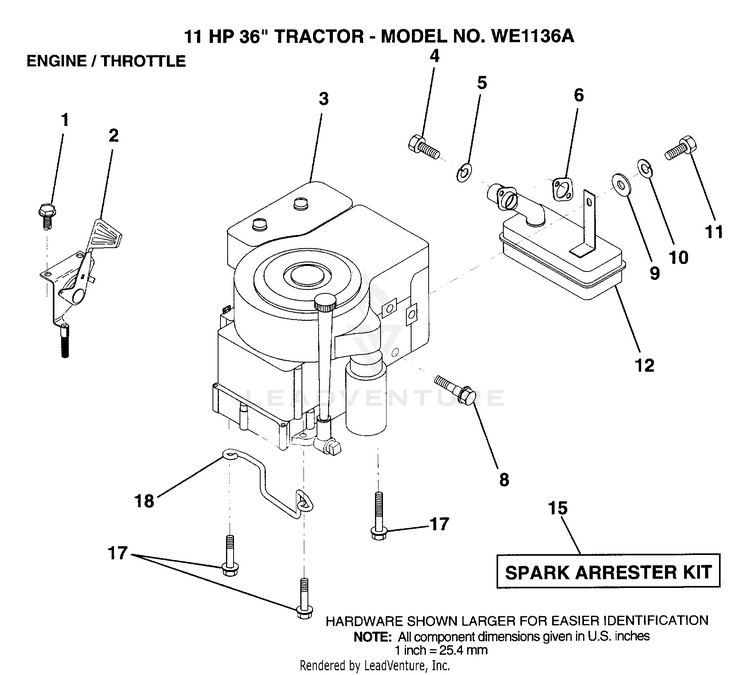

ENGINE AND THROTTLE

...
...
1
SCREW HUS-17720408
...
2
THROTTLE CONTROL HUS-132521
...
3
ENGINE B&S 11HP HUS-258707
...
4
SCREW HUS-71070512
...
5
LOCKWASHER HUS-10040500
...
6
SUB= 272293 HUS-125593X
...
8
BOLT T HUS-121094X
...
9
WASHER HUS-19101216
...
10
LOCKWASHER HUS-10040400
...
11
BOLT HUS-74760416
...
12
MUFFLER HUS-137437
...
15
SUB= 532137180 HUS-137180
...
17
SCREW LT HUS-17490624
...
18
"KEEPER,DR BELT GR" HUS-126636X
