Husqvarna WE10L36A (1993) Tractor

Model: WE10L36A (1993)

Back To Assemblies

Save Part Not Listed?
product name

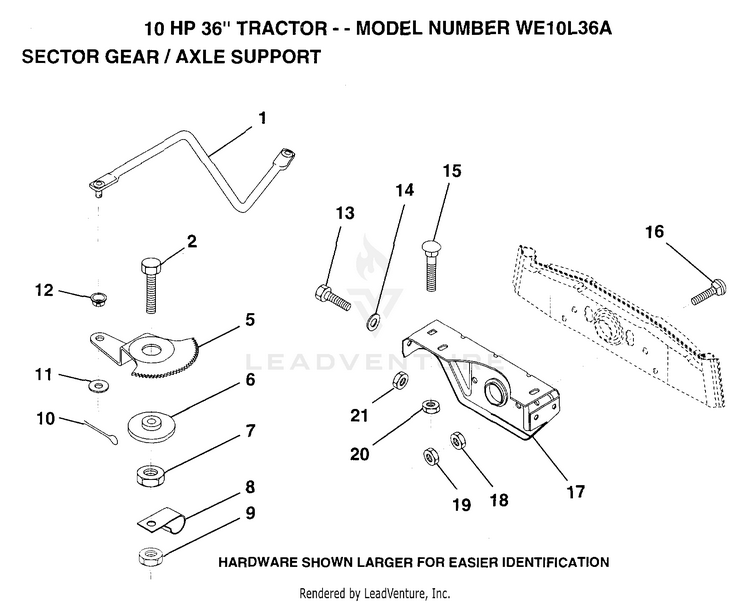

SECTOR GEAR AND AXLE SUPPORT

...
...
1
DRAG LINK HUS-132566
...
2
"BOLT,HEX" HUS-74780828
...
5
GEAR SECTOR HUS-121926X
...
6
BUSHING HUS-121927X
...
7
NUT HUS-73030800
...
8
CLIP INSULATOR HUS-126472X
...
9
NUT LTV HUS-73680800
...
10
COTTER PIN HUS-76020412
...
11
WASHER HUS-19131316
...
12
BUSHING.DRAGLINK HUS-126847X
...
13
BOLT HUS-74760512
...
14
WASHER HUS-19111416
...
15
BOLT HUS-72110606
...
16
BOLT HUS-72140622
...
17
"SUPT,FRT AXLE" HUS-121912X
...
18
NUT.HEX.3/8-16UNC HUS-73220600
...
19
LOCKNUT HUS-73930600
...
20
SUB= 73690600 HUS-73680600
...
21
SUB= 73690500 HUS-73680500
