Husqvarna WE10L36A (1993) Tractor

Model: WE10L36A (1993)

Back To Assemblies

Save Part Not Listed?
product name

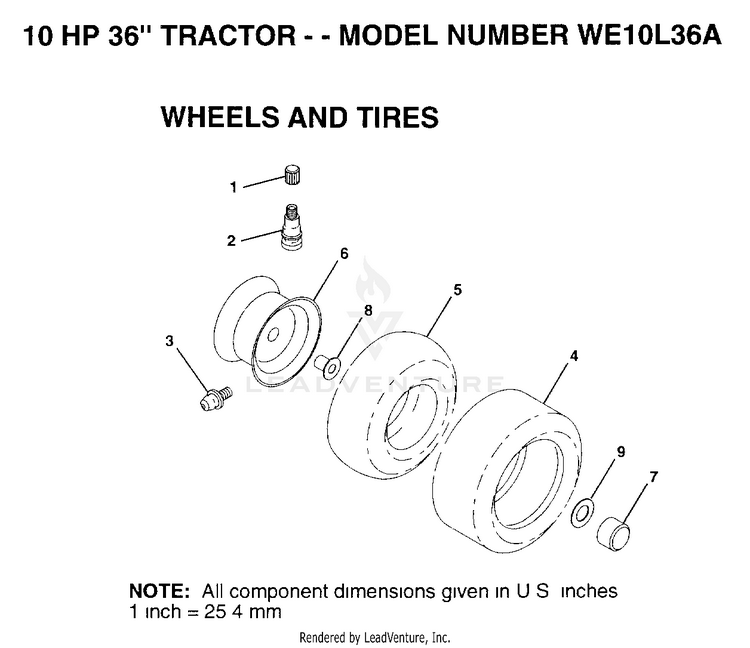

WHEELS AND TIRES

...
...
1
VALVE CAP HUS-59192
...
2
VALVE STEM LT HUS-65139
...
3
FITTING LT HUS-278H
...
4
SUB= 123410X HUS-124142X
...
xx
SUB= 122075X HUS-124143X
...
5
TUBE.5.3/4.5/6 HUS-59904
...
xx
SUB= 8134H HUS-8134
...
6
RIM.ASM.6X3.5 HUS-139517X473
...
xx
"RIM.ASM.8""REAR" HUS-139519X473
...
7
HUB CAP HUS-104757X
...
8
"FLANGE, BEARING" HUS-9040H
...
9
WASHER HUS-121748X
Schematic Image Zoomed
