Husqvarna WAGT20H48STA (2003) Tractor

Model: WAGT20H48STA (2003)

Back To Assemblies

Save Part Not Listed?

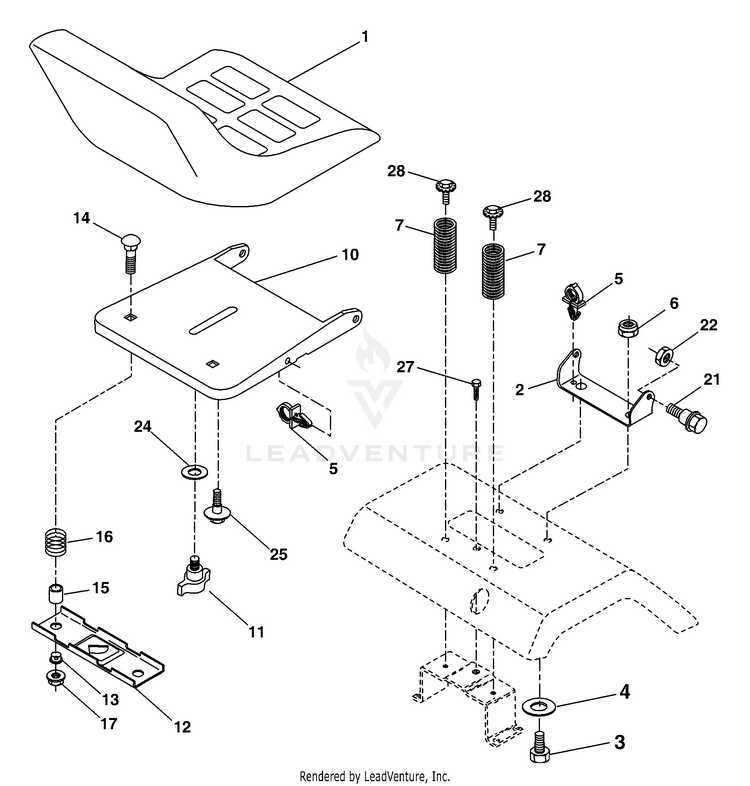

product name

Seat

...
...
1
Seat HUS-140118
...
2
Bracket Pivot Seat 8 720 HUS-140551
...
3
Bolt Fin Hex 3/8-16 Unc x 1 HUS-71110616
...
4
Washer Flat 13/32 x 1 x 10 Ga. HUS-19131610
...
5
Clip Push-In HUS-145006
...
6
Nut Hex w/Ins. 3/8-16 Unc HUS-73800600
...
7
Spring Seat Cprsn 2 250 Blk Zi HUS-124181X
...
10
Pan Seat HUS-182493
...
11
Knob Seat Adj. Wingnut HUS-166369
...
12
Bracket Mounting Switch HUS-121246X
...
13
Bushing Snap Blk Nyl 50 Id HUS-121248X
...
14
Bolt Rdhd Sqnk 1/4-20x1-1/2 HUS-72050412
...
15
Spacer Split 28x 88 HUS-121249X
...
16
Spring Cprsn HUS-123740X
...
17
Nut Lock 1/4 Lge Flg Gr 5 Zinc HUS-123976X
...
21
Bolt Shoulder 5/16-18 Unc HUS-171852
...
22
Nut Hex Lock W/Ins 5/16-18 HUS-73800500
...
24
Washer 17/32 X 1-3/16 X 12 Ga. HUS-19171912
...
25
Bolt Shoulder 5/16-18 X 62 HUS-127018X
...
27
Screw Thdrol 3/8-16 x 1/2 HUS-17490608
...
28
Bolt 5/16-18unc x 3/4 HUS-171877
