Husqvarna WAGT20H48STA (2003) Tractor

Model: WAGT20H48STA (2003)

Back To Assemblies

Save Part Not Listed?
product name

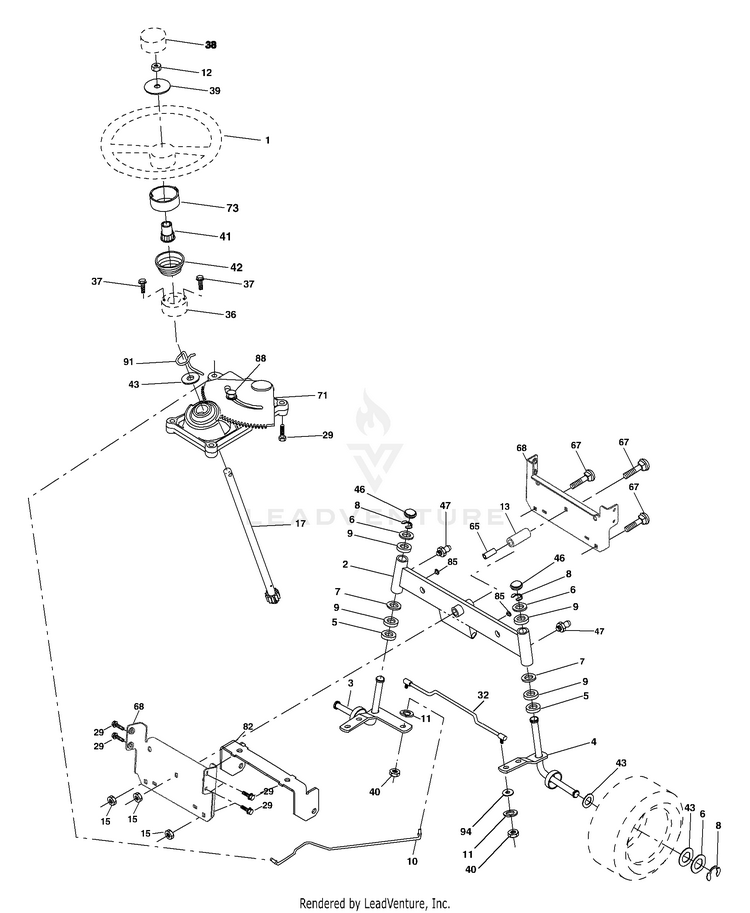

Steering Assembly

...
...
1
Wheel Steering HUS-184704X428
...
2
Axle Welded Asm HUS-175131
...
3
Spindle Asm LH HUS-169840
...
4
Spindle Asm RH HUS-169839
...
5
Bearing Race Thrust Harden HUS-6266H
...
6
Washer 25/32 X 1-5/8 X 16 Ga. HUS-121748X
...
7
Washer 27/32 x 1-1/4 x 16 Ga. HUS-19272016
...
8
Ring Klip #t5304-75 HUS-12000029
...
9
Bearing Col. Strg. HUS-3366R
...
10
Link Drag HUS-175121
...
11
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
12
Nut Hex Jam Toplock 1/2-20 UNF HUS-73940800
...
13
Spacer Brg Axle Front HUS-136518
...
15
Nut Hex Flange Lock HUS-145212
...
17
Shaft Asm Strg HUS-177883
...
29
Screw 3/8-16x3/4 HUS-17060612
...
32
Rod Tie HUS-180580
...
36
Bushing Strg HUS-155105
...
37
Screw TT #32.5 x 5 x 3/8 Flange HUS-152927
...
38
Cap Wheel Steer HUS-159946X428
...
39
Washer 9/16 x 1-1/2 x 11 Ga. HUS-19182411
...
40
Nut Lock Center 3/8-24 Unf HUS-7810H
...
41
Adaptor Wheel Strg HUS-159945
...
42
Boot Steering HUS-163888X428
...
43
Washer 25/32 X 1 1/4 X 16 Ga. HUS-121749X
...
44
Extension Steering HUS-160135X428
...
46
Cap Spindle Fr Top Blk HUS-121232X
...
47
Fitting Grease HUS-183226
...
65
Spacer Brace Axle HUS-160367
...
67
Bolt Rdhd Sqn 3/8-16 x 2-1/4 HUS-72140618
...
68
Brace, Axle HUS-169827
...
71
Steering Asm. HUS-175146
...
73
Extension Steering HUS-160135X428
...
82
Bracket Susp Chassis Front HUS-169835
...
85
Fastner Christmas Tree HUS-133835
...
88
Bolt Shoulder 7/16-20 Unc HUS-175118
...
91
Clip HUS-175553
...
94
Washer 3/8 x 7/8 x 14 Ga. HUS-19121414
